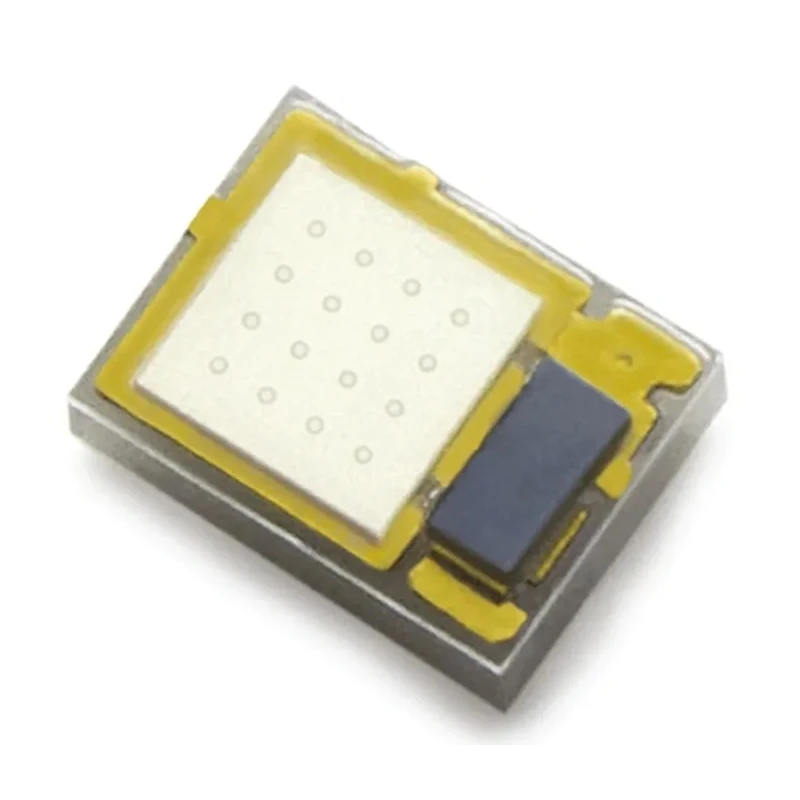

Lumileds High Power 3 V Cyan Surface Mount LED 0705 Package LUXEON Z LXZ1-PE01
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Lumileds |
| Model | LXZ1-PE01 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | LUXEON Z |
| Maximum forward current | 1000mA |
| Viewing angle | 125 ° |
| Package Type | 0705 |
| Lens Colour | Colourless |
| Standards/Approvals | RoHS |
| LED Colour | Cyan |
| Dominant Wavelength | 505nm |
| Forward Voltage | 3V |
| Number of Pins | 2 |
| Lens Dimensions | 1.3 x 1.7 x 0.66 mm |
| Lens Shape | Round |
| LED Luminous Flux | 82 lm |
| High drive current | 1A (InGaN) and 0.7A (AlInGaP) |
| Enables customisable light sources | linear, rectangular, circular, etc. and therefore smaller/unique luminaire designs |
Key Features
- Ultra-compact 0705 package with 1.3 x 1.7 x 0.66 mm lens dimensions.
- Maximum forward current rating of 1000 mA for high brightness output.
- Cyan LED color with dominant wavelength of 505 nm ensures vivid illumination.
- Clear round lens with 125° viewing angle for wide light distribution.
- RoHS compliant and manufactured in Malaysia, ensuring reliable quality.
- Available in tape & reel packaging suitable for automated assembly.
- Part of the LUXEON Z series designed for superior flux density and color mixing.
- Mount type is surface mount for easy integration into LED arrays and modules.
Product Description
Lumileds LXZ1-PE01 is a high-power cyan LED designed for advanced electronic lighting applications. Featuring a compact 0705 surface mount package, it provides exceptional flexibility for luminaire developments demanding small form factors and exceptional lumen density. The LED operates at a forward voltage of 3 V and supports high drive currents up to 1A (InGaN technology), making it suitable for high-flux density lighting solutions.
This LED emits a vivid cyan light with a dominant wavelength of 505 nm, delivered through a clear, round lens optimized for a 125° wide viewing angle. Its ultra-compact size of 1.3 x 1.7 x 0.66 mm allows up to 250 LEDs per square inch, enabling complex and customizable multi-color or monochromatic LED arrays.
The LUXEON Z series, to which this LED belongs, is utilized in applications such as entertainment and stage lighting, indoor and outdoor architectural lighting, emergency vehicle lighting, and remote phosphor systems. The tape & reel packaging ensures compatibility with automated pick-and-place processes, enhancing production efficiency.
Manufactured in Malaysia, this component complies with RoHS standards, affirming environmental safety. The surface mount design facilitates easy integration into LED modules and specialized lighting assemblies, offering reliable performance in both commercial and industrial use cases.
Ultra compact 0705 package measuring 1.3 x 1.7 x 0.66 mm. Cyan color emitting LED with dominant wavelength at 505 nm. High forward current capacity of 1000 mA and 3 V forward voltage. Wide 125° viewing angle through a clear, round lens.
RoHS compliant, ensuring environmental compatibility. Manufactured in Malaysia under stringent quality controls. Part of LUXEON Z series, enabling high luminous flux density and versatile light source configurations. Ideal for LED arrays in entertainment, architectural, and specialized lighting applications.
Explore the extensive range of Lumileds LEDs and optoelectronic components available at EnvMart to enhance your lighting solutions with cutting-edge LED technology.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating for the Lumileds LXZ1-PE01 is 1000 mA, allowing for high brightness output.
The dominant wavelength of this cyan LED is 505 nm, which ensures vivid illumination.
The LED comes in an ultra-compact 0705 package with dimensions of 1.3 x 1.7 x 0.66 mm.
This model features a wide viewing angle of 125° through its clear, round lens.
The Lumileds LXZ1-PE01 is packaged in tape & reel format, which is suitable for automated assembly processes.
The forward voltage for this LED is 3 V, making it suitable for various electronic applications.
This LED is part of the LUXEON Z series, designed for superior flux density and color mixing.
The luminous flux output of this LED is 82 lumens, providing effective illumination for various applications.
The LXZ1-PE01 features a surface mount design, facilitating easy integration into LED arrays and modules.
This LED is manufactured in Malaysia, ensuring compliance with quality standards.
This model is suitable for applications such as entertainment and stage lighting, architectural lighting, and emergency vehicle lighting.
Yes, the Lumileds LXZ1-PE01 is RoHS compliant, affirming its environmental safety.
