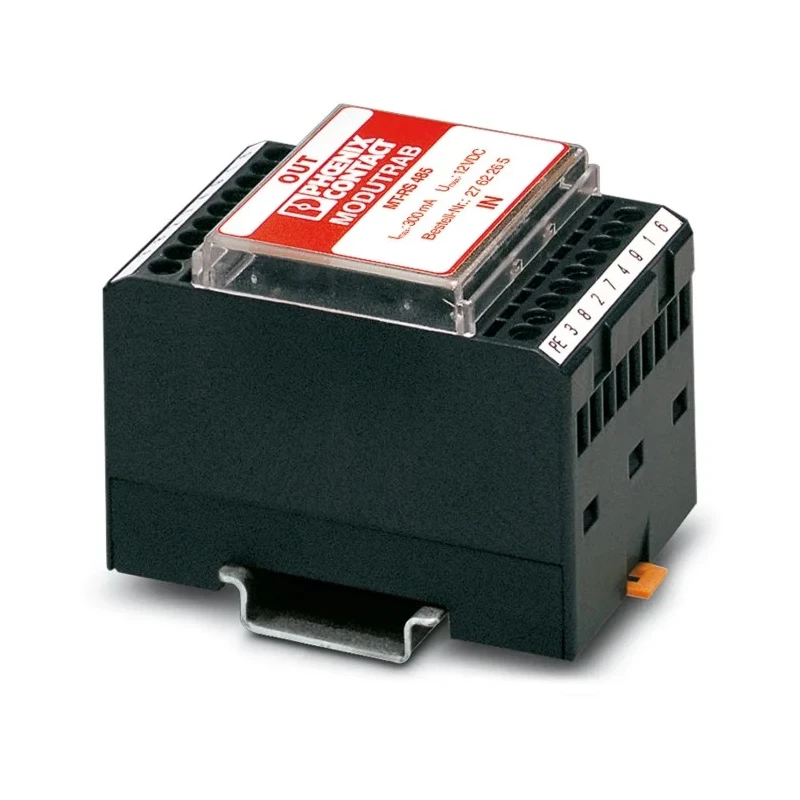

Phoenix Contact Surge Protector 22 V 10 kA DIN Rail Mount MT-RS485 2762265
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Length | 77.5mm |
| Model | 2762265 |
| Depth | 54.9mm |
| IP Rating | IP20 |
| Width | 47.6mm |
| Mount Type | DIN Rail |
| Series | MT-RS485 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | IEC 61643-11 |
| Maximum Surge Current | 10kA |
| Voltage Protection Rating | 22V |
| Impulse Discharge Current | 500A |
Key Features
- Pluggable two-pole modular design for easy installation and maintenance.
- Quenches over voltage caused by inductive or capacitive connections.
- Mechanical indicator shows operational status and includes changeover contacts for alarm reporting.
- Designed to protect sensitive equipment in single-phase low voltage power supplies.
- Complies with IEC 61643-11 standards for surge protection.
- Wide temperature operating range from -40°C to 60°C.
- IP20 ingress protection rating for indoor electrical enclosure protection.
Product Description
Phoenix Contact 2762265 Surge Protector is a DIN Rail mounted device with a 22 V voltage protection rating and maximum surge current capacity of 10 kA, designed to safeguard electrical and electronic equipment against surges and transient voltage spikes.
This pluggable two-pole modular lightning surge protector, part of the MT-RS485 series, efficiently quenches overvoltage resulting from inductive or capacitive coupling in single-phase low voltage power supplies. Its slim design allows for compact installation inline in electrical circuits.
Featuring a mechanical indicator, this surge protector provides continuous status monitoring, with a clear indication whether the device is operational or needs replacement. It also includes changeover contacts for integration with alarm systems to report status changes for timely maintenance interventions.
The device complies with IEC 61643-11 standards ensuring reliability and compliance with surge protection regulations. Its wide operating temperature range from -40°C up to 60°C makes it suitable for various industrial, commercial, and residential environments.
Installation is direct on symmetrical profile DIN rails, ensuring secure mounting within electrical enclosures and switchgear assemblies. The IP20 rating protects against dust and accidental contact with live parts but requires installation in protected indoor environments.
Typical use cases include protection of sensitive automation and control equipment, circuit breakers, and instrumentation devices in industrial, laboratory, HVAC, manufacturing, and water treatment applications.
Pluggable two-pole modular design for easy maintenance. Mechanical status indicator and alarm changeover contacts. Protection for low voltage single-phase power supplies. Compliance with IEC 61643-11 surge protection standards.
Wide operating temperature range from -40°C to 60°C. Compact dimensions for DIN Rail mounting. IP20 protection rating for indoor use. Explore more Surge Protection Devices and industrial electrical components by Phoenix Contact and similar top brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum surge current capacity of this surge protector is 10 kA.
This model has a voltage protection rating of 22 V.
The dimensions of this surge protector are 77.5 mm in length, 54.9 mm in depth, and 47.6 mm in width.
It operates within a temperature range from -40°C to 60°C.
This surge protector is designed for DIN Rail mounting.
It complies with IEC 61643-11 standards for surge protection.
Yes, it features a mechanical status indicator for continuous monitoring of its operational status.
It is suitable for various environments including industrial, commercial, and residential settings due to its wide operating temperature range.
It is designed to protect sensitive automation and control equipment, circuit breakers, and instrumentation devices.
The ingress protection rating of this device is IP20, indicating it is suitable for indoor use.
It includes changeover contacts for integration with alarm systems to report status changes for timely maintenance interventions.
The impulse discharge current rating is 500 A.
