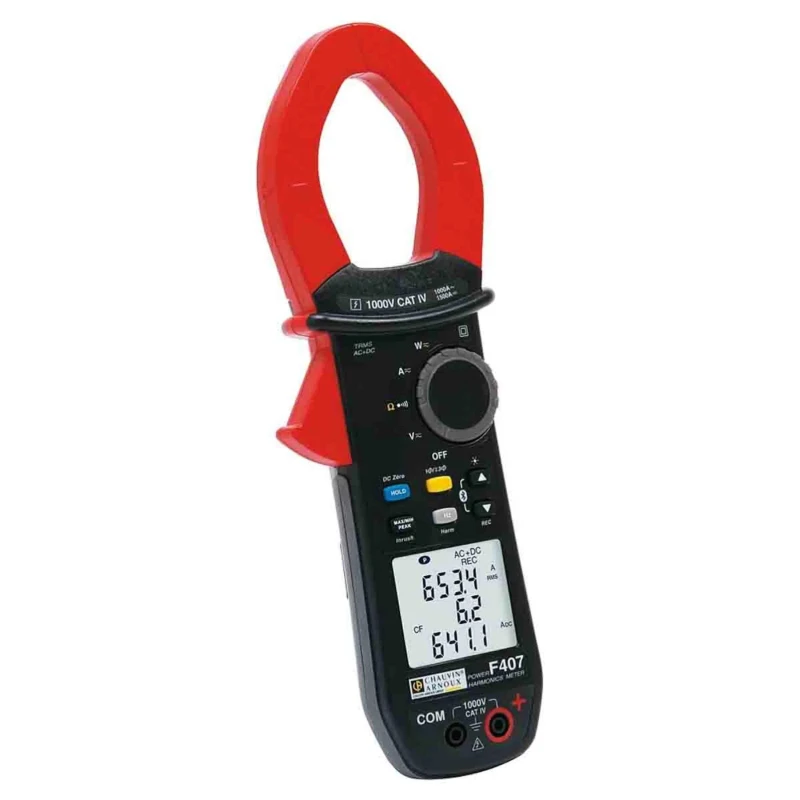

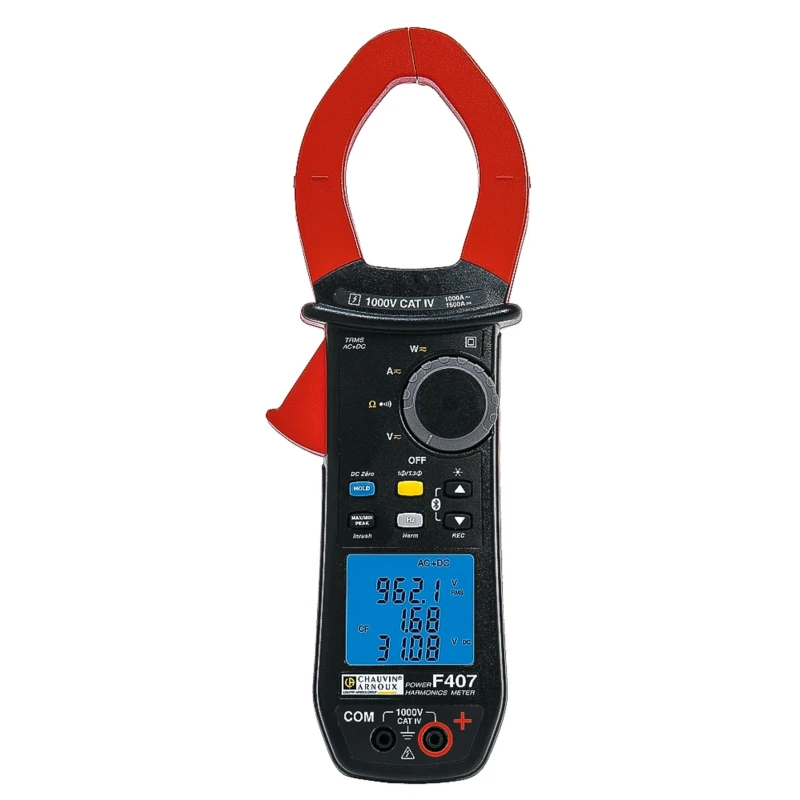

Chauvin Arnoux Power and Harmonics Clamp Meter, 1500 A DC, 1400 V DC, CAT IV, CAT III F407 P01120947

Chauvin Arnoux F407 Power and Harmonics Clamp Meter delivers precise measurements with a maximum DC current rating of 1500 A and DC voltage of 1400 V, suitable for demanding industrial, electrical distribution, railway, and elevator maintenance applications. This clamp meter utilizes a fast 12-bit true RMS digital acquisition system, ensuring high accuracy across all functions including AC/DC current and voltage, resistance, temperature, harmonics, and power factor measurements.

The device is engineered for robustness and user convenience with an easy-to-read large backlit LCD and automatic AC/DC detection feature. With functions covering resistance measurements, audible continuity testing, minimum/maximum/peak analyses, and true inrush current measurement, it supports comprehensive diagnostics and monitoring tasks in various professional sectors.

This clamp meter accommodates cables up to 48mm diameter via its jaw opening and operates reliably within -20°C to 55°C. It is powered by common AA batteries providing up to 350 hours of operation, and interfaces via Bluetooth for integration with PC software, enhancing data logging and analysis capabilities.

Designed to meet rigorous safety requirements, it holds IEC 61010 certification and is rated for CAT IV and CAT III safety categories at 1kV, ensuring suitability for high energy environments and providing operator protection.

The clamp meter supports AC/DC current and voltage detection with automatic AC/DC mode. It features True RMS measurement for accurate AC current and voltage readings. Large backlit LCD display ensures easy readability in all conditions.

Capable of measuring resistance, temperature, harmonics up to 25th order, and power factors. Includes data recording and Bluetooth interface for PC software connectivity. Equipped with a 48 mm maximum jaw opening for conductors and power/harmonics clamp meter type.

Offers a wide operating temperature range from -20°C to 55°C. Powered by AA batteries with approximately 350 hours of battery life. Built with IEC 61010 safety standards and rated for CAT IV, CAT III safety categories. Compact dimensions of 272mm (height) x 92mm (length) x 41mm (width) and weighs 600 g.

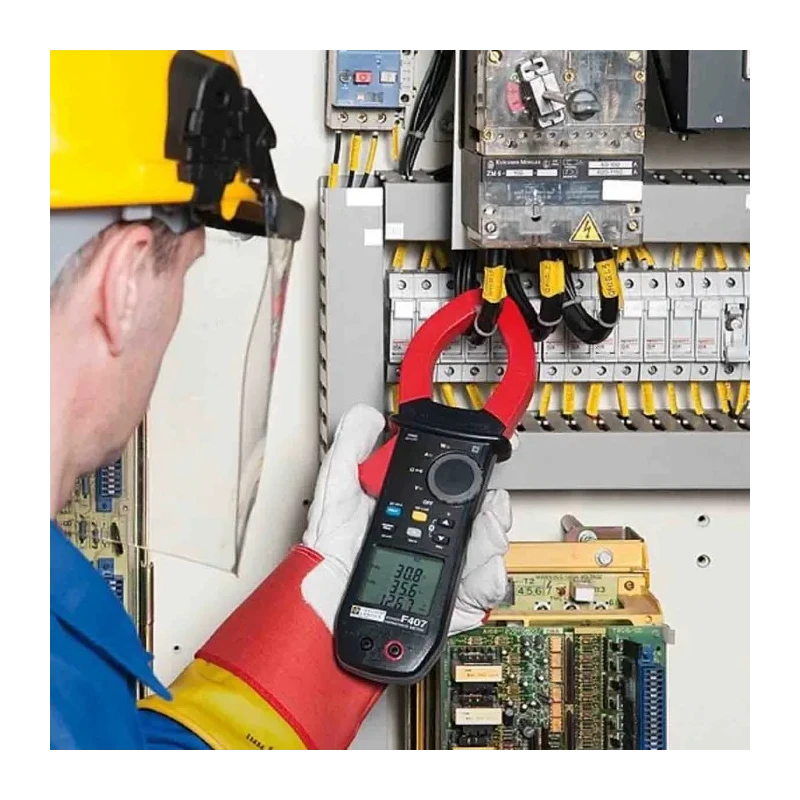

This Chauvin Arnoux F407 clamp meter is ideal for industrial, laboratory, electrical, maintenance, railway, and HVAC applications requiring detailed monitoring and diagnostics of low-voltage networks. For additional products in Clamp Meters and electrical test tools, explore the EnvMart selection.
