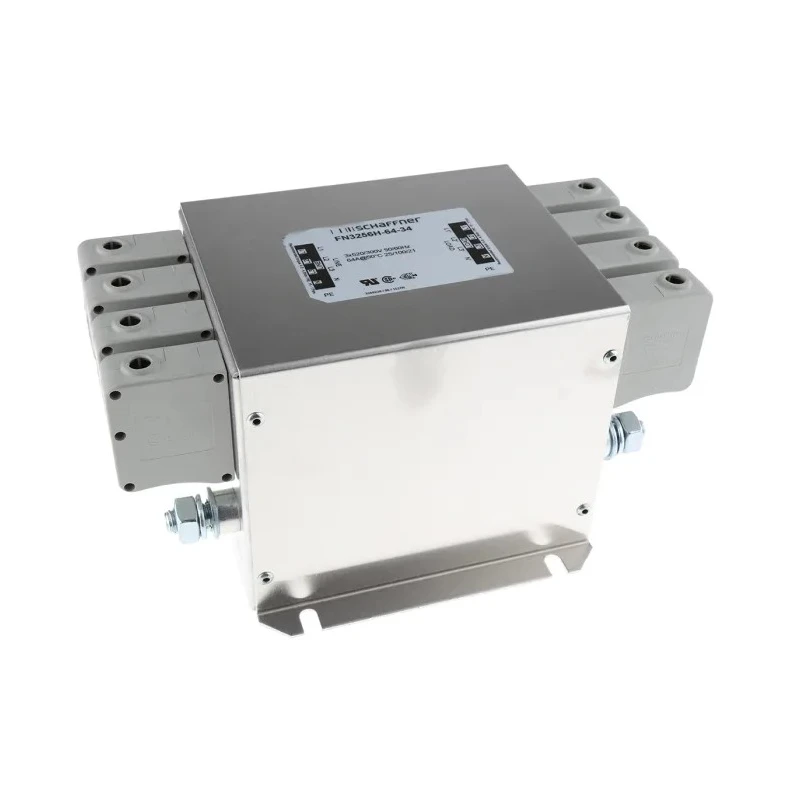

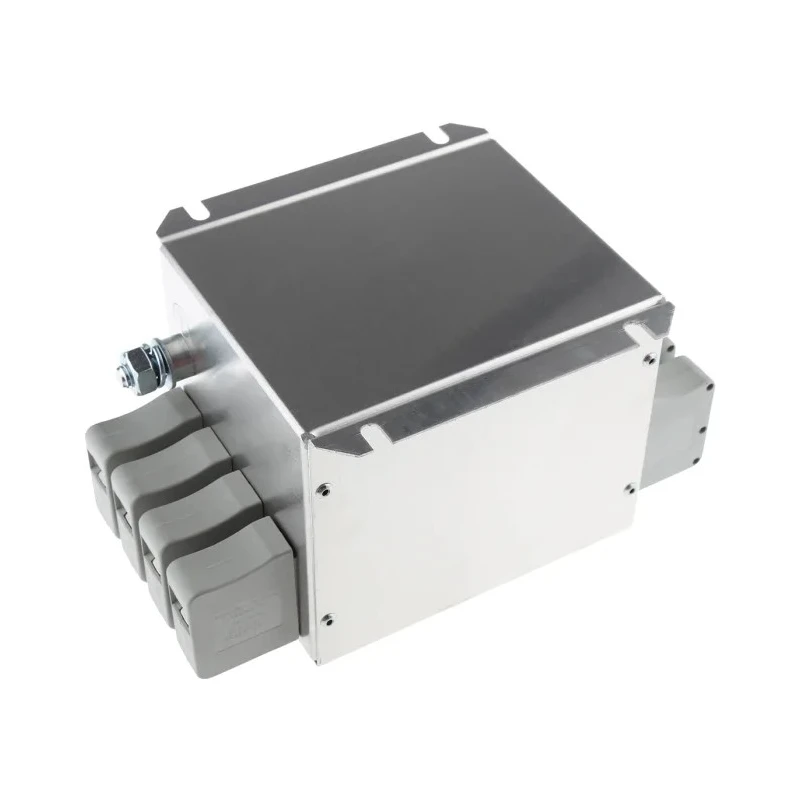

Schaffner Chassis Mount EMI Filter 64 A 520V AC 60Hz Terminal Block 3 Phase FN3256
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 115mm |
| Length | 140mm |
| Model | FN3256 |
| Depth | 143mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FN3256 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1500kΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 64A |
| Number of Phases | 3 |
| Leakage Current | 1mA |
| Maximum Voltage | 520V ac |
| Termination Style | Terminal Block |
| Power Loss | 17.2W |
Key Features
- Compact and lightweight chassis mount design for easy installation.
- Terminal block termination for secure and reliable connections.
- Operating temperature range from -25°C to 100°C.
- Low leakage current of 1 mA ensures efficient performance.
- Power loss rated at 17.2 W for stable operation under load.
- High resistance value of 1500 kΩ for effective EMI suppression.
- Single stage 3-phase filter suitable for industrial variable speed drives and motor controls.
Product Description
Schaffner FN3256 chassis mount EMI filter is engineered for protection and noise suppression in 3-phase electrical power systems operating at 520V AC and 60 Hz. Designed for industrial applications, this filter is compact and lightweight, requiring minimal cabinet space. It features a robust terminal block termination for secure electrical connections and combines high attenuation performance with a low leakage current of 1 mA.
The filter supports a maximum current of 64 A and is rated for an operating temperature range from -25°C to 100°C, making it suitable for demanding industrial environments. The 17.2 W power loss rating ensures stability and reliability during operation. Its dimensions of 140 mm (length), 143 mm (depth), and 115 mm (height) accommodate efficient installation in control panels and drive systems.
This EMI filter is ideal for use in variable speed electrical power drive systems, industrial motors, frequency inverters, and servo motors. It provides efficient suppression of electromagnetic interference, enhancing the longevity and performance of sensitive equipment.
Compact and space-saving chassis mount design. Terminal Block termination ensures solid and touch-safe connections. High attenuation with low leakage current for efficient noise suppression. Rated for a wide temperature range and industrial operating conditions.
Supports 3-phase, single-stage filtering at 64 A maximum current. Dimensions optimized for seamless integration in equipment enclosures. Suitable for industrial automation, manufacturing, HVAC systems, and power electronics.
Schaffner's portfolio of EMI filters and power quality components is trusted globally across industries including rail technology, robotics, automotive, renewable energy, and industrial controls. This model FN3256 chassis mount filter continues that legacy by providing reliable EMI suppression and protecting power electronic systems.
Explore more technical and industrial filter solutions with EnvMart for your next power quality and noise suppression requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN3256 EMI filter has a maximum current rating of 64 A.
This model is rated for a maximum operating voltage of 520V AC.
The operating temperature range for this filter is from -25°C to 100°C.
It features a terminal block termination style for secure and reliable connections.
The FN3256 has a power loss rating of 17.2 W during operation.
The dimensions of the FN3256 are 140 mm in length, 143 mm in depth, and 115 mm in height.
This model provides single-stage filtering suitable for 3-phase electrical power systems.
The leakage current for this EMI filter is rated at 1 mA, ensuring efficient performance.
It is suitable for industrial variable speed drives, motor controls, and other power electronic systems.
The filter has a high resistance value of 1500 kΩ for effective EMI suppression.
The FN3256 is designed for an operating frequency of 60 Hz.
The FN3256 EMI filter is manufactured in India.
