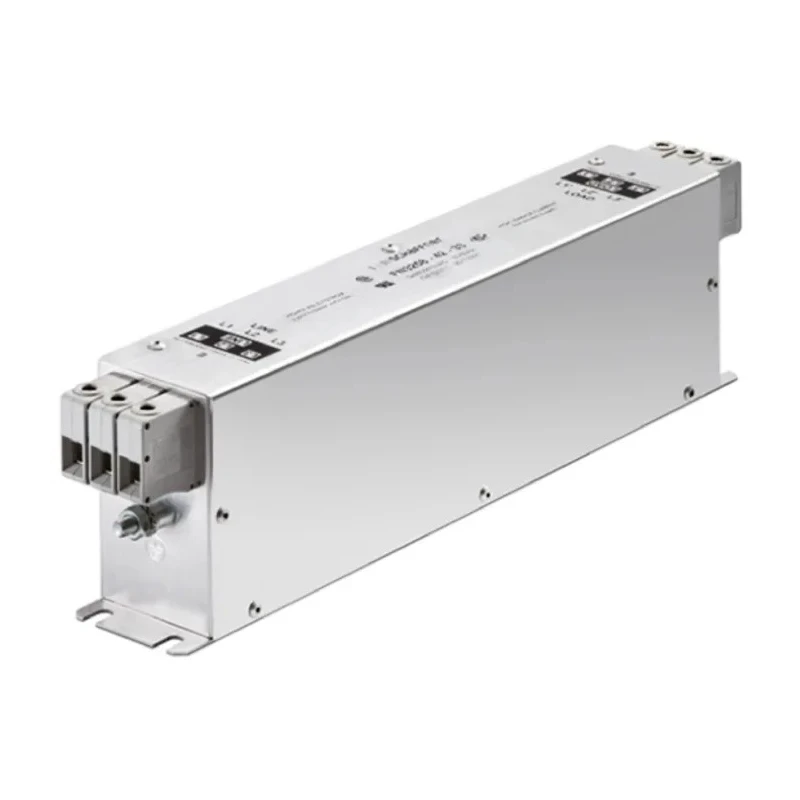

Schaffner Chassis Mount EMC Filter 7 A 480V AC 60Hz Terminal Block 3 Phase FN3258
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Schaffner |
| Height | 70mm |
| Length | 190mm |
| Model | FN3258 |
| Depth | 40mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FN3258 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 7A |
| Number of Phases | 3 |
| Leakage Current | 33mA |
| Maximum Voltage | 480V ac |
| Termination Style | Terminal Block |
| Power Loss | 3.8W |
Key Features
- Designed for compact spaces with slim and lightweight chassis mount design.
- Offers exceptional saturation resistance and excellent thermal behavior.
- Effective attenuation performance from 150 kHz up to 30 MHz frequency range.
- Leakage current rating of 33mA for safety compliance.
- Power loss limited to 3.8W ensuring efficient operation.
- Operates reliably within temperature range from -25°C to 100°C.
- Ideal for use in motor drives, servo drives, inverters, converters, HVAC systems, elevators, and power supplies.
- Constructed with solid safety connector blocks for enhanced durability.
Product Description
Schaffner FN3258 chassis mount EMC filter is engineered to provide reliable electromagnetic interference suppression for 3-phase electrical systems operating at 7 amperes and 480 volts AC with a frequency of 60 Hz. It features a robust chassis mount design with Terminal Block termination, ensuring secure electrical connections and easy installation in limited mounting spaces.
Designed with chokes of exceptional saturation resistance and superb thermal management, this filter maintains effective performance even under full load and noisy conditions. The compact and slim form factor makes it suitable for space-constrained industrial environments.
The filter offers outstanding attenuation from 150 kHz to 30 MHz, enhancing the protection of sensitive electronic equipment against interference. Its leakage current is rated at 33mA, and power loss is minimized to 3.8 watts, contributing to energy-efficient operation within industrial and commercial power electronics applications.
Operating temperature range from -25°C to 100°C allows this EMC filter to perform reliably in diverse environmental conditions. Applications include variable speed motor drives, servo drives, inverters, converters, HVAC equipment, elevators, and various power supply systems.
Designed for compact spaces with slim and lightweight chassis mount design. Offers exceptional saturation resistance and excellent thermal behavior. Effective attenuation performance from 150 kHz up to 30 MHz frequency range.
Leakage current rating of 33mA for safety compliance. Power loss limited to 3.8W ensuring efficient operation. Operates reliably within temperature range from -25°C to 100°C. Ideal for use in motor drives, servo drives, inverters, converters, HVAC systems, elevators, and power supplies.
Constructed with solid safety connector blocks for enhanced durability. Country of Origin: Thailand.
This premium Schaffner EMC filter is suitable for industrial, manufacturing, HVAC, and commercial electrical applications requiring high filter performance and durability. Explore more EMC filters for power electronics at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this EMC filter is 7 amperes.
This model operates at a maximum voltage of 480 volts AC.
It operates at a frequency of 60 Hz.
The filter operates reliably within a temperature range from -25°C to 100°C.
The leakage current rating is 33 mA.
Power loss is limited to 3.8 watts, ensuring efficient operation.
It features a chassis mount design with Terminal Block termination.
The dimensions are 190 mm in length, 70 mm in height, and 40 mm in depth.
It is ideal for use in motor drives, servo drives, inverters, converters, HVAC systems, elevators, and power supplies.
This model has a single stage design.
The chokes are designed with exceptional saturation resistance, enhancing performance under load.
The country of origin for this model is Thailand.
