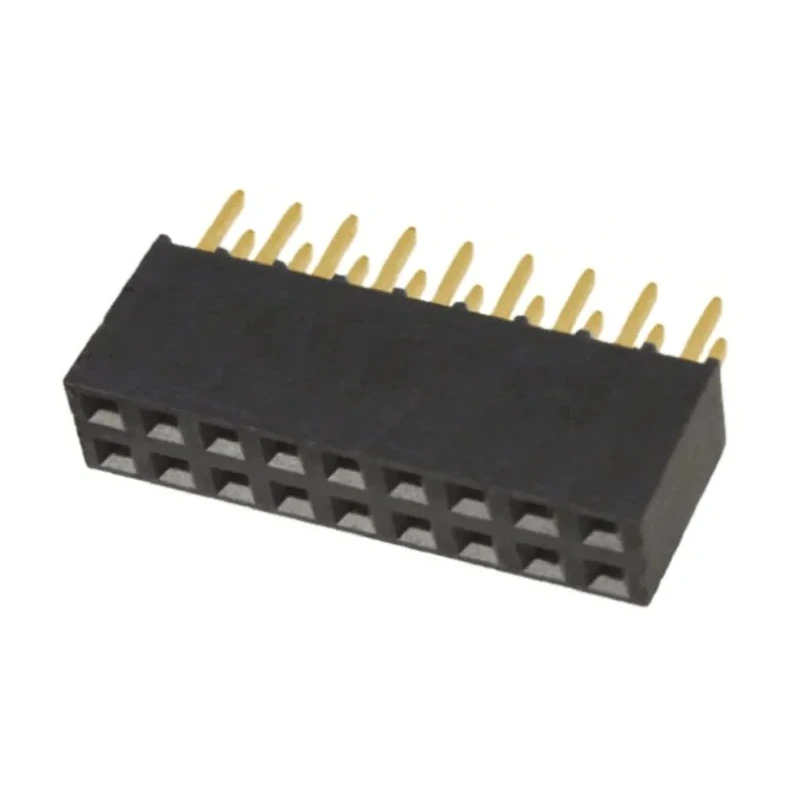

Samtec SSQ Series Straight Through Hole PCB Socket 18-Contact 2 Row 2.54 mm Pitch Solder SSQ-109-01-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | SSQ-109-01-G-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSQ |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- The socket features a liquid crystal polymer housing ensuring durability and high temperature resistance.
- It supports a current rating of 7.6 A and a voltage rating of 550 V for robust electrical performance.
- The contact material is bronze with gold plating for corrosion resistance and reliable conductivity.
- Designed for through hole mounting, the socket has a straight orientation suitable for standard PCB assembly.
- Operating temperature range spans from -55°C to 125°C, suitable for harsh industrial conditions.
- Row pitch measures 2.5 mm, supporting precise alignment in multi-row configurations.
- The connector system is board-to-board, providing secure connections between PCBs.
Product Description
Samtec SSQ-109-01-G-D is an 18-contact, 2-row straight through hole PCB socket with a 2.54 mm pitch. Manufactured with a robust liquid crystal polymer housing and phosphor bronze Tiger Buy contacts plated with 0.51 μm gold, this socket ensures excellent electrical conductivity and corrosion resistance.
Its solder termination type and through hole mount type enable reliable PCB integration for industrial, electronics manufacturing, and power connector applications. The socket is designed for board-to-board connections, providing a firm and precise interface between PCBs.
The SSQ series sockets operate effectively within the -55°C to 125°C temperature range, suitable for demanding environments including industrial electronics and power systems. The maximum current and voltage ratings of 7.6 A and 550 V, respectively, support robust electrical performance.
This connector features female contacts with a row pitch of 2.5 mm ensuring proper spacing in dual-row configurations. The straight orientation facilitates ease of assembly and integration in electronics manufacturing processes.
Samtec SSQ sockets are compatible with related TSW and TSM series headers, making them versatile components for various electronic assembly needs. The socket's liquid crystal polymer housing provides mechanical strength and thermal stability.
Gold plating on contacts ensures longevity and consistent signal integrity. 18-contact count in a 2-row layout supports complex circuit connections. Through hole mount type provides secure attachment to PCBs for long-lasting reliability.
Wide operating temperature range suits applications in industrial and commercial electronic systems.
This Samtec PCB socket offers high reliability and precision for electronics manufacturing, industrial assemblies, and power connector applications. Explore the full range of PCB Sockets and connectors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating is 7.6 A and the voltage rating is 550 V, ensuring robust electrical performance.
It features a housing made from liquid crystal polymer and contacts made from bronze with gold plating for corrosion resistance and reliable conductivity.
This model operates effectively within a temperature range of -55°C to 125°C, suitable for harsh industrial environments.
The socket is designed for through hole mounting, which provides secure attachment to PCBs for long-lasting reliability.
The socket has a pitch size of 2.54 mm and features a dual-row configuration with 18 contacts.
It supports a board-to-board connector system, providing secure connections between PCBs.
The termination type for this socket is solder, facilitating reliable PCB integration.
Yes, it is compatible with related TSW and TSM series headers, making it versatile for various electronic assembly needs.
The socket features a straight orientation, which facilitates ease of assembly and integration in electronics manufacturing processes.
This socket has female contacts, designed for secure connections in electronic applications.
The row pitch measures 2.5 mm, ensuring proper spacing in dual-row configurations.
The socket is manufactured in India, ensuring compliance with local production standards.
