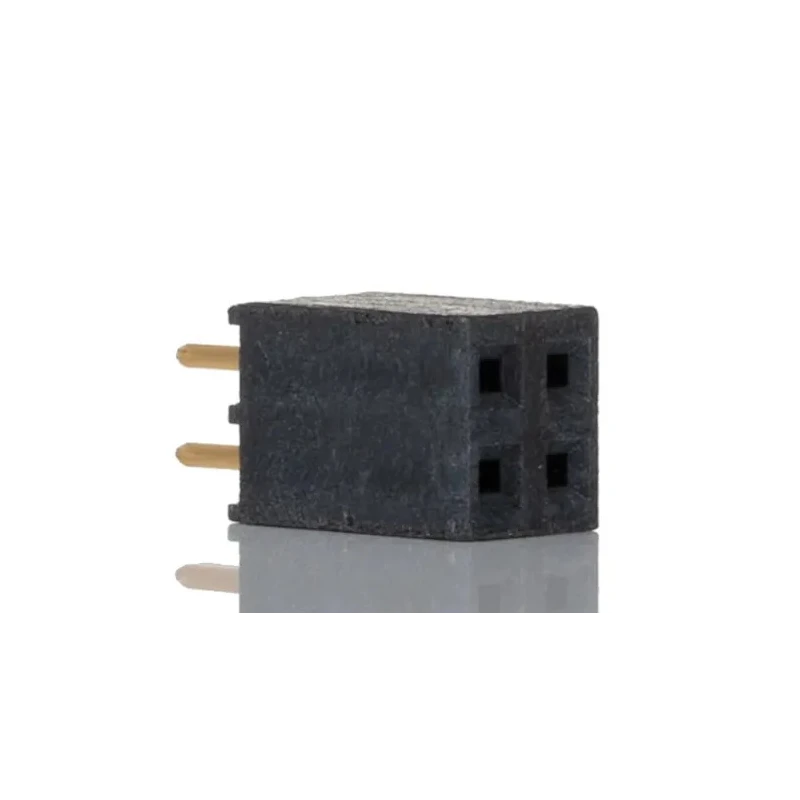

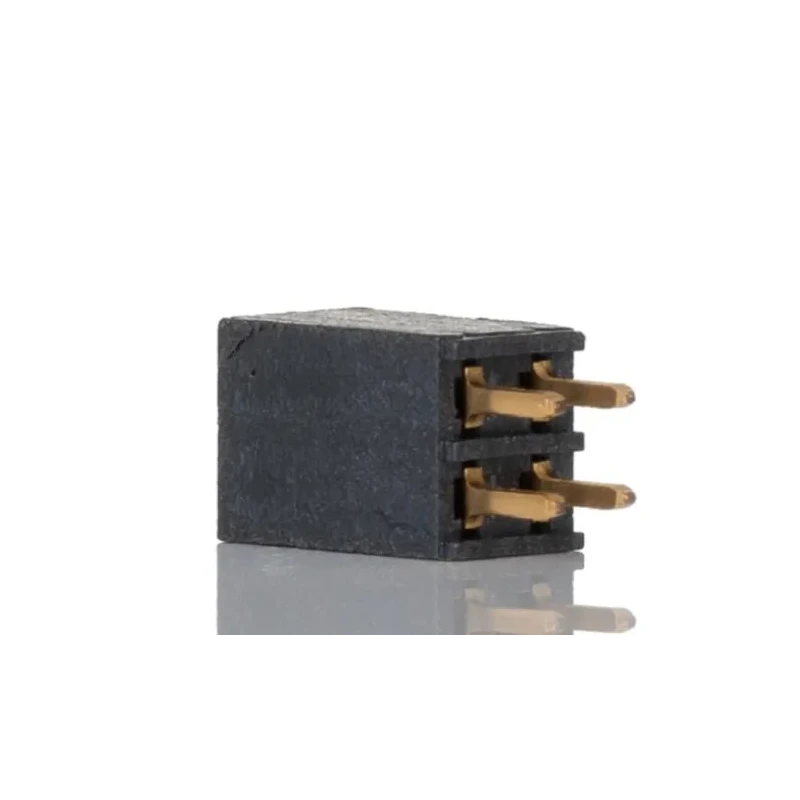

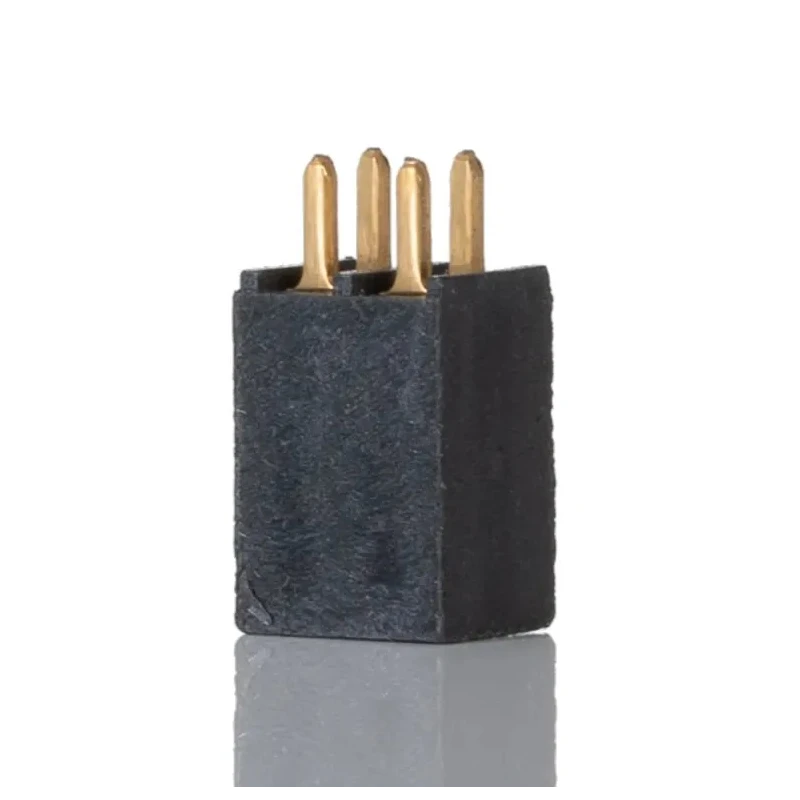

Samtec SSQ Series Straight Through Hole PCB Socket 4-Contact 2 Row 2.54 mm Pitch Solder SSQ-102-01-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | SSQ-102-01-G-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSQ |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Features a straight orientation with through hole mount for secure PCB connection.
- Housing made of black liquid crystal polymer, ensuring electrical insulation.
- Designed for industrial and telecommunications applications requiring reliable signal transfer.
- Contacts made of phosphor bronze with gold plating for corrosion resistance and high conductivity.
- Operates between -55°C and 125°C, suited for harsh environments.
- Supports current rating of 7.6A and voltage up to 550V.
- Low insertion force of 0.92N for ease of assembly and maintenance.
- Reusable design allows insertion and removal up to 100 times without performance loss.
Product Description
The Samtec SSQ-102-01-G-D is a high-quality SSQ Series straight through hole PCB socket designed for board-to-board connection systems. With 4 contacts arranged in 2 rows and a 2.54 mm pitch, this PCB socket provides a reliable and efficient interface for electronic circuit integration. The black liquid crystal polymer housing offers excellent insulation and protection against electric shocks, while the phosphor bronze contacts plated with gold ensure superior conductivity and corrosion resistance.
Rated for a current of 7.6A and voltage up to 550V, this PCB socket withstands operating temperatures from -55°C up to 125°C, making it suitable for demanding industrial, military, telecommunication, and research applications. The straight connector design and through-hole mount allow quick and secure installation, reducing wiring complexity and assembly time.
A key feature is its 0.92N insertion force, facilitating easy assembly and disassembly. This socket is reusable up to 100 cycles, supporting setups that require frequent configuration changes.
Applications include industrial automation systems, military-grade equipment, telecommunication centres, and test research facilities that demand dependable PCB connections under harsh conditions.
Straight orientation with through hole mount. Phosphor bronze contacts with gold plating. Broad temperature operating range (-55°C to 125°C). Up to 100 insertion/removal cycles. Current rating: 7.6A and voltage rating: 550V.
Low insertion force of 0.92N.
For professionals seeking reliable PCB Socket solutions, the Samtec SSQ-102-01-G-D offers proven durability and performance. Browse EnvMart's electronics components category for additional PCB connectors and related devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this PCB socket is 7.6A.
It has a voltage rating of up to 550V.
This model operates within a temperature range of -55°C to 125°C.
The housing is made of liquid crystal polymer, while the contacts are made of phosphor bronze with gold plating.
This PCB socket features 4 contacts arranged in 2 rows.
The pitch size of the contacts is 2.54 mm.
It uses a through hole mounting type for secure PCB connection.
The insertion force is 0.92N, facilitating ease of assembly and maintenance.
This socket can be inserted and removed up to 100 times without performance loss.
It is designed for industrial automation systems, military-grade equipment, telecommunication centres, and test research facilities.
The connector system type is board-to-board.
The contacts in this PCB socket are female.
