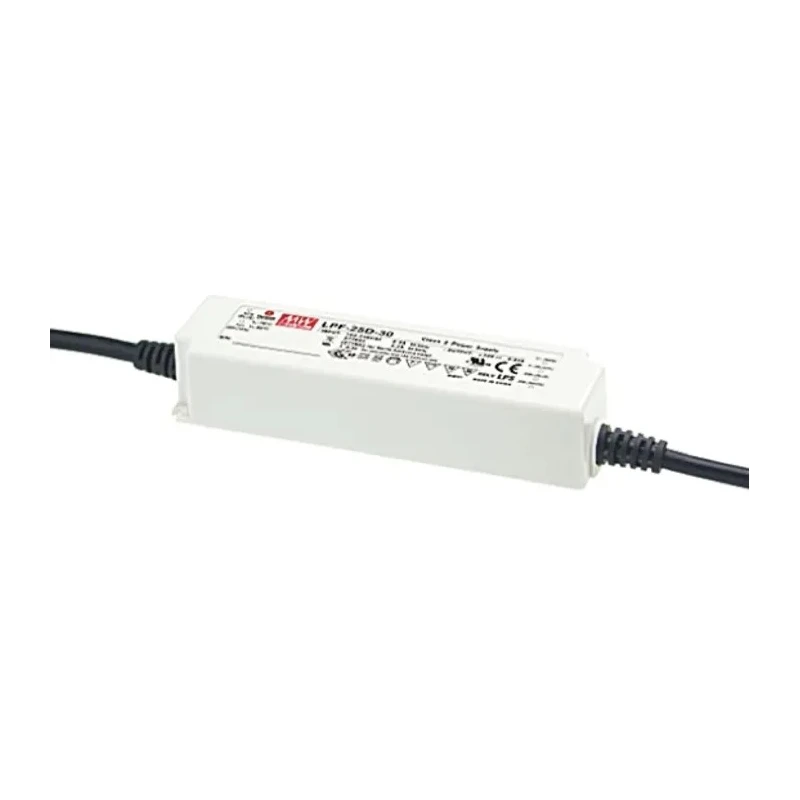

MEAN WELL IP67 5 Output 25.2W LED Driver, 13.2V/24V, 1.05mA, 1 to 10 V PWM Resistance Dimmable

MEAN WELL LPF-25D-24 is an IP67 rated dimmable LED driver delivering a maximum output power of 25.2W with five constant voltage outputs at 13.2 V and 24 V. It features a wide universal AC input voltage range from 90 to 305 Vac and a built-in active PFC function for improved efficiency and power quality.

This LED driver uses a fully potted, 94V-0 rated plastic case that ensures protection from dust and water ingress, making it suitable for harsh industrial, commercial, and outdoor LED lighting installations including moving signs and displays, in dry, damp, or wet locations.

The three-in-one dimming function supports 1 to 10 V DC, PWM signals, or resistance dimming, providing flexible brightness control options. It has a class II AC input design without frame ground, ensuring safe operation. The device is cooled by free air convection and can withstand ambient temperatures from -40 to +70°C, enhancing reliability across varied environmental conditions.

Additional safety features include protections against short circuit, over current, over voltage, and over temperature conditions. With up to 85% efficiency and compliance with international safety and EMC standards such as UL8750, CSA C22.2, CE, CB, and EN61347 series, it integrates well into a wide range of LED lighting solutions.

The driver supports a universal AC input range from 90 to 305 Vac for versatile power compatibility. Features a built-in active Power Factor Correction (PFC) function ensuring efficient power usage. Comes with a three-in-one dimming function compatible with 1 to 10 V DC, PWM signal, or resistance dimming methods.

Encapsulated in a fully potted IP67 rated plastic case for excellent protection against dust and water. Designed for use in LED lighting and moving sign applications in dry, damp, or wet environments. Offers high efficiency up to 85% and operates reliably in ambient temperatures from -40 to +70°C.

Equipped with short circuit, overload, over voltage, and over temperature protection for enhanced safety. Class II input design with no frame ground and free air convection cooling allows easy installation. Complies with multiple international standards including UL8750, CSA C22.2, EN61347-1, and EN61347-2-13.

This LED driver is commonly used in industrial, commercial, and outdoor LED lighting applications. It is ideal for powering LED assemblies requiring stable constant voltage and dimmable light control with high reliability and safety.
