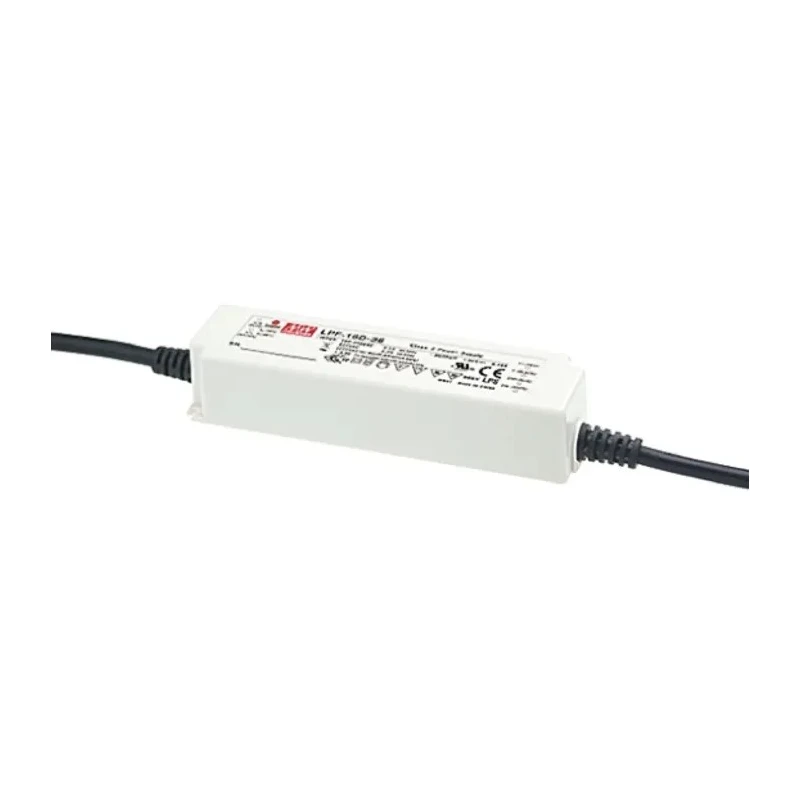

MEAN WELL 16W 5 Output IP30 10-20V 800mA Dimmable LED Driver Power Supply
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP30 |
| IP Rating | IP30 |
| Mount Type | Screw |
| Series | LPF-16D |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 16W |
| Input Voltage | 305, 90, 127, 431V ac |
| Output Voltage | 10, 20V |
| Power Dissipation | 16W |
| Standards/Approvals | CE, SELV, CSA, UL, ENEC, EAC, CB |
| Dimming Operation | 1 to 10 V PWM Resistance |
| Primary Type | AC-DC |
| Driver Current | 800mA |
| MEAN WELL, 23.1 → 42V Output, 16.38W Output, 390mA Output, Constant VoltageBrand | MEAN WELL |
| MEAN WELL IP30 5 Output LED Driver, 29.7V, 54 V, 16.2 W, 300mA LED DriverBrand | MEAN WELL |
Key Features
- Operates with universal AC input range of 90 to 305 Vac.
- Built-in active power factor correction for efficient energy use.
- Supports 1 to 10 Vdc, PWM signal, or resistance dimming functions.
- Features IP30 protection with enclosed plastic case and free air convection cooling.
- Complies with multiple safety standards including CE, UL, CSA, and ENEC.
- Offers short circuit, overcurrent, overvoltage, and overtemperature protections.
- Suitable for LED lighting and moving sign industrial applications.
- Class II AC input design without ground connection.
Product Description
MEAN WELL LPF-16D-20 is a high-performance 16W dimmable LED driver designed for industrial and commercial LED lighting applications. Featuring five output channels, it provides a voltage output range of 10 to 20V with a constant current of 800mA, ensuring stable operation in various lighting systems.
This LED driver supports a universal AC input voltage range between 90 and 305Vac, equipped with active power factor correction (PFC) to improve power efficiency up to 85%. The unit includes a versatile "three-in-one" dimming function that allows dimming through 1 to 10 Vdc control signals, PWM signal, or resistance, enabling flexible lighting control solutions.
The LPF-16D-20 features an IP30 rated enclosed plastic case housing designed for free air convection cooling, negating the need for a fan, thus enhancing reliability and reducing maintenance. It holds a Class II AC input design, eliminating the requirement for a ground connection (no FG), and complies with international certifications such as CE, UL8750, CSA, ENEC, EAC, and CB.
Robust safety features protect the driver against short circuits, overcurrent conditions, overvoltage events, and overtemperature to safeguard prolonged operational stability. This driver is ideal for industrial installations, laboratory lighting setups, architectural LED applications, and moving signages requiring reliable dimmable LED power supply.
Operates within a wide temperature range from -40 to +70°C using convection cooling. Meets EMC standards EN55015 and harmonic current compliance to EN61000-3-2 Class C (for loads above 50%). Designed to MIL-HDBK-217F for MTBF ensuring long-term reliability.
MEAN WELL’s LPF-16D series LED driver offers an optimal solution for enhancing LED lighting systems with flexible dimming options and stable electrical output in industrial, manufacturing, commercial, and laboratory environments.
Browse more LED drivers and power supplies in the Electronics Components - LED Lighting Components category on EnvMart for complementary products.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 16W.
This LED driver features five output channels.
The output voltage range is from 10 to 20V.
It supports dimming through 1 to 10 Vdc control signals, PWM signal, or resistance dimming.
This unit is designed for screw mounting and features an enclosed configuration.
It includes protections against short circuits, overcurrent, overvoltage, and overtemperature.
It operates within a wide temperature range from -40 to +70°C.
It complies with multiple safety standards including CE, UL, CSA, and ENEC.
The driver current for this model is 800mA.
It utilizes free air convection cooling, eliminating the need for a fan.
The IP rating for this model is IP30, indicating it is designed for indoor use only.
