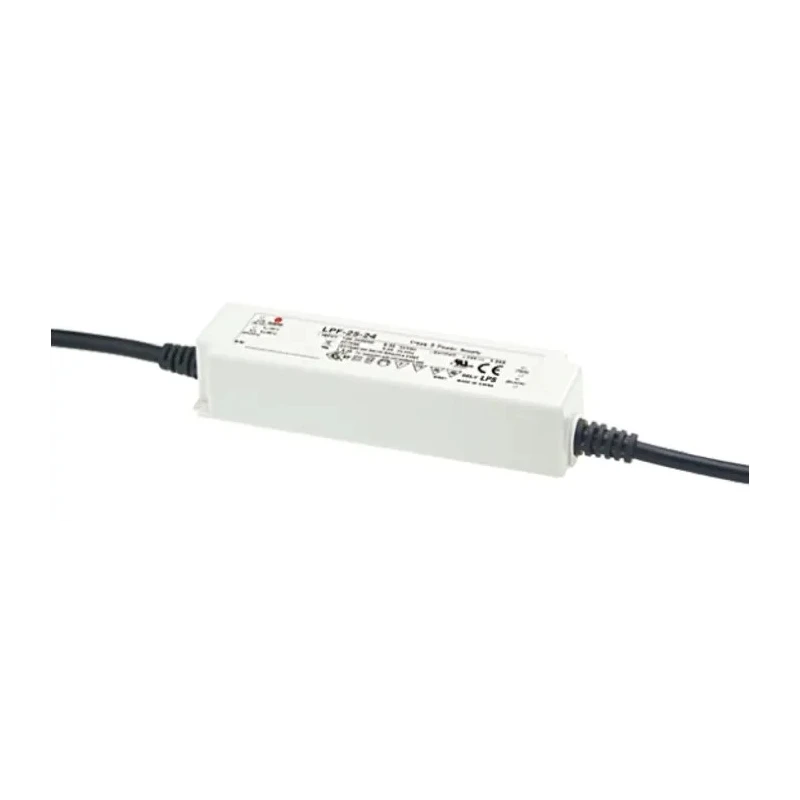

MEAN WELL IP67 5 Output LED Driver 13.2V/24V, 25.2W, 1.05A, Screw Mount Enclosed AC-DC Power Supply
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | LPF-25 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 25.2W |
| Input Voltage | 127, 305, 431, 90V |
| Output Voltage | 13.2, 24V |
| Power Dissipation | 25.2W |
| Standards/Approvals | UL, SELV, ENEC, EAC, CSA, CE, CB |
| Primary Type | AC-DC |
| Driver Current | 1.05A |
| MEAN WELL IP30 1 Output LED Driver, 5V, 35 W, 5A LED DriverBrand | MEAN WELL |
Key Features
- Provides five constant voltage outputs with 13.2V and 24V options.
- Supports universal AC input voltage from 90 to 305Vac for flexible power sources.
- Rated IP67 with full encapsulation for protection in dry, damp, or wet environments.
- Equipped with built-in active Power Factor Correction for energy efficiency.
- Screw mount enclosed design ensures secure installation and vibration resistance.
- Delivers a rated current of 1.05A with high efficiency up to 87%.
- Complies with major safety and EMC standards including UL, CE, CSA, and ENEC.
- Operates reliably in temperatures from -40°C to +70°C with free air convection cooling.
Product Description

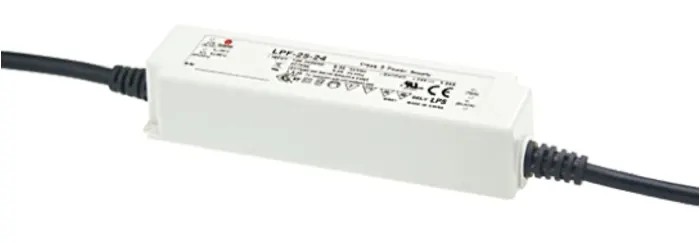

MEAN WELL LPF-25-24 IP67 5 Output LED Driver is a high-performance AC-DC power supply tailored for industrial and commercial LED lighting applications. It incorporates a universal AC input range from 90 to 305Vac, making it adaptable to multiple power environments. Its fully encapsulated and potted construction achieves an IP67 rating, providing dust-tight and water immersion protection, suited for harsh or wet locations.
This LED driver delivers a constant voltage output with five channels, supporting output voltages of 13.2V and 24V, and a driver current of 1.05A. The screw mount enclosed design provides strong mechanical stability and vibration resistance, rated to withstand 5G shocks. High efficiency of up to 87% ensures energy-saving operation with a built-in active power factor correction (PFC) to reduce electrical losses.
Comprehensive protection features include safeguards against short circuits, over current, over voltage, and thermal overload, ensuring reliability and extended service life. Compliance with international standards such as UL8750, CSA, CE, ENEC, and CB marks certification for industrial use. The product operates effectively over a wide temperature range (-40°C to +70°C) using free air convection cooling, eliminating the need for fans or additional cooling systems.
Useful for indoor and outdoor LED lighting and moving sign installations, this driver is suitable for industrial, manufacturing, commercial, and laboratory settings where dependable, efficient LED power supplies are needed.
Five output channels delivering constant voltage with selectable 13.2V and 24V outputs. Wide universal AC input voltage compatibility from 90 to 305Vac. Fully potted with heat-conducted glue for IP67 ingress protection and shock resistance.
Active power factor correction for enhanced energy efficiency. Robust screw mount enclosed design for secure and stable installation. Integrated short circuit, over current, over voltage, and over temperature protections.
Certified to UL, CE, CSA, ENEC, and CB safety and performance standards. Temperature range operable from -40°C to +70°C with convection cooling. Set contains 1 PC MEAN WELL LPF-25-24 LED driver power supply. Explore more options in LED drivers and power supplies at EnvMart for industrial and electronic component needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 25.2W.
This model provides two output voltage options: 13.2V and 24V.
The input voltage range for this LED driver is from 90V to 305V.
It has five outputs, allowing for multiple connections.
This model uses a screw mount design for secure installation.
The operating temperature range is from -40°C to +70°C.
It complies with several safety standards including UL, CE, CSA, and ENEC.
This LED driver includes protections against short circuits, over current, over voltage, and thermal overload.
The driver current rating for this model is 1.05A.
Yes, it is equipped with built-in active power factor correction for enhanced energy efficiency.
It utilizes free air convection cooling, eliminating the need for fans or additional cooling systems.
