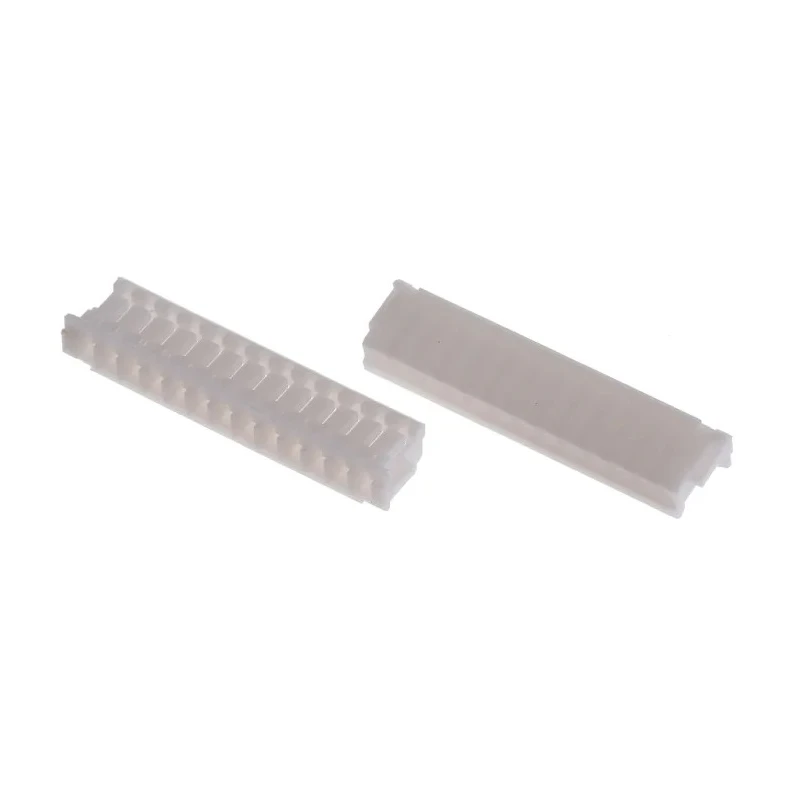

JST ZH Female Connector Housing 1.5 mm Pitch 13 Way 1 Row Side Entry ZHR-13
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | JST |
| Orientation | Side Entry |
| Length | 21mm |
| Model | ZHR-13 |
| Width | 4.8mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | ZH |
| Interfaces | lances |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| For Use With | ZH Series Dis-Connectable Crimp Style Connector |
| Number of Contacts | 13 |
| Connector Gender | Female |
| Approved | UL Recognised E60389, CSA Certified LR20812, TUV Certified R9351092 |
Key Features
- The housing is made from durable polyamide material ensuring mechanical strength.
- It features 13 contacts arranged in a single row with a 1.5 mm pitch spacing.
- Built for use with ZH Series dis-connectable crimp style connectors.
- Side entry orientation allows flexible mounting in various applications.
- Compact dimensions include 21 mm length and 4.8 mm width for space-saving designs.
- Designed for wire to board cable mounting applications.
- The product is sourced from Republic of Korea, ensuring quality manufacturing standards.
- Approved by UL Recognised E60389, CSA Certified LR20812, and TUV Certified R9351092.
Product Description
The JST ZHR-13 female connector housing is a high-quality 13-way, 1-row, side entry connector designed with a 1.5 mm pitch suitable for cable-mounted applications. Constructed from polyamide, this connector ensures durability and reliable performance in various demanding environments.
Its compact size with dimensions of 21 mm length and 4.8 mm width provides an efficient space-saving solution for electronics requiring multiple contacts in close proximity.
The housing is compatible with the JST ZH series dis-connectable crimp style connectors and includes retention lances for visual confirmation of proper contact locking, enhancing assembly reliability.
Approved by notable certifying bodies including UL, CSA, and TUV, this connector housing meets recognized safety and quality standards. It is produced in the Republic of Korea ensuring manufacturing excellence.
Common applications include integration within household appliances, industrial control systems, storage systems, and networking devices, where compact and robust connector housings are essential.
The housing is made from durable polyamide material ensuring mechanical strength. Features 13 contacts arranged in a single row with a 1.5 mm pitch spacing. Designed for side entry cable mounting with JST ZH Series connectors.
Compact dimension of 21 mm length by 4.8 mm width for space efficiency. Incorporates retention lances for visual contact lock confirmation. Approved by UL, CSA, and TUV certification authorities. Manufactured in Republic of Korea under stringent quality controls.
Applications include household, industrial, storage, and networking use cases. Suitable for wire-to-board connection requiring high-density contact arrangement. Explore the wide range of reliable Connector Housings by JST on EnvMart to support your industrial and commercial electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the JST ZHR-13 connector housing is 1.5 mm.
This connector housing features 13 contacts arranged in a single row.
The dimensions of the JST ZHR-13 housing are 21 mm in length and 4.8 mm in width.
The connector housing is made from durable polyamide material, ensuring mechanical strength.
The orientation of the JST ZHR-13 connector housing is side entry, allowing flexible mounting options.
The JST ZHR-13 housing is designed for use with ZH Series dis-connectable crimp style connectors.
The housing is approved by UL Recognised E60389, CSA Certified LR20812, and TUV Certified R9351092.
This connector housing is suitable for wire-to-board cable mounting applications, commonly used in household appliances, industrial control systems, and networking devices.
The JST ZHR-13 connector housing has 1 row of contacts.
Yes, the housing incorporates retention lances for visual confirmation of proper contact locking, enhancing assembly reliability.
The JST ZHR-13 connector housing is manufactured in the Republic of Korea, ensuring quality manufacturing standards.
The mount type for the JST ZHR-13 connector housing is cable, designed for cable mounting applications.
