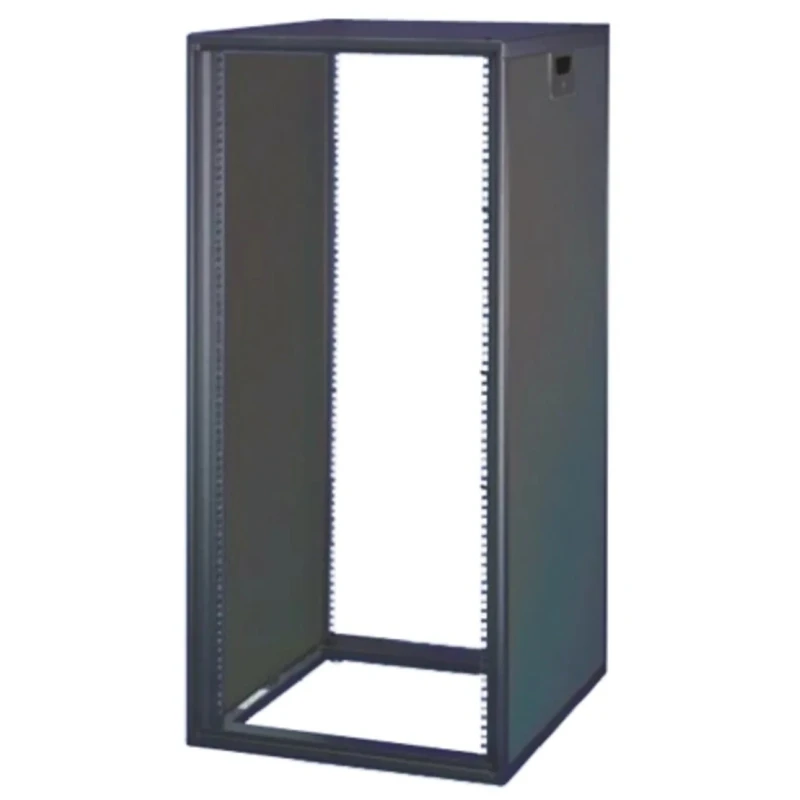

nVent SCHROFF Novastar Series 16 U-Rack Server Cabinet, Floor Standing, Single Transparent Door, Steel, 500mm 16230-004

nVent SCHROFF 16230-004 Novastar Series 16 U-Rack Server Cabinet is a floor standing server enclosure designed to accommodate 19 inch rack mount servers and equipment in industrial and commercial environments. This robust cabinet offers a balance of durability and a compact footprint with dimensions measuring 767 mm in height, 553 mm in width, and 500 mm in depth.

The cabinet is constructed from high-quality steel finished in grey and features a single transparent door enabling visual inspection without opening. The side panels are 1 mm steel with twist-lock catching mechanisms, ensuring both security and easy access for maintenance. A flush top cover completes the enclosure, along with 4 feet for stable placement and an earthing kit to ensure electrical safety.

The Novastar series supports 16U rack units and meets international industrial standards IEC 61587-1 and IEC 60297-3-100, guaranteeing compatibility and safety. It incorporates IP40 and IP20 ingress protection classes, protecting the mounted devices from solid contaminants and minimal liquid exposure.

With its static load-carrying capacity of 200 kg, this cabinet supports a broad range of server equipment and networking hardware. The slim line aluminium frame and recessed flush front and rear uprights optimize space, allowing for efficient stacking and cable management.

Designed for a variety of applications including data centers, industrial automation sites, laboratories, and telecommunications rooms, the Novastar cabinet provides configurable options. Users can personalize this rack by purchasing additional parts such as doors with 180° opening angles, rear panels, shelves, slide rails, base plates, bases or plinths, and castors independently.

Constructed from steel with a grey finish and die cast aluminium extrusion uprights featuring 19 inch cutouts for versatile equipment mounting. Single transparent door allowing easy monitoring and access to server components.

Side panels with twist-locking catches enable quick secure access. External dimensions: 767 mm height, 553 mm width, and 500 mm depth maximize space efficiency. IP40 and IP20 ingress protection ratings ensure solid protection and limited liquid resistance.

Static load capacity of 200 kg supports industrial-grade equipment loads. Compliance with IEC 61587-1, IEC 60297-3-100, DIN EN 50178 / VDE 0160, and IEC 60529 standards. Includes frame, side panels, flush top cover, feet, and earthing kit for complete installation.

Compatible with a range of separately ordered accessories for customization.

The nVent SCHROFF Novastar Series 16 U-Rack Server Cabinet is ideal for professional server room setups in industries requiring secure, durable, and customizable rack server enclosures. Its compliance with international standards alongside superior ingress protection and strong load capability makes it a trusted choice for data center, laboratory, telecommunications, and industrial electrical applications.
