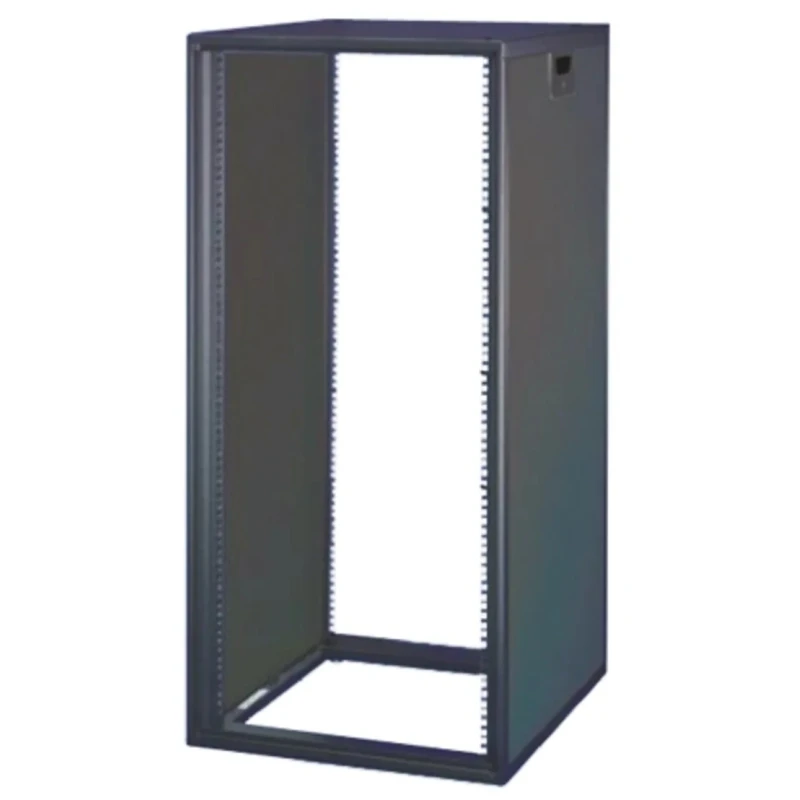

nVent SCHROFF Novastar Series 20U Rack Server Cabinet Floor Standing Grey Steel, External 945 mm Height x 553 mm 16230-007

nVent SCHROFF 16230-007 Novastar Series 20U Rack Server Cabinet is a floor standing server enclosure engineered with rugged grey steel and die cast aluminium extrusion uprights featuring 19 inch mounting cut-outs. The cabinet measures 945 mm in height, 553 mm in width, and 600 mm in depth, making it a slender and space efficient solution for standard 19 inch rack mounted equipment.

This model belongs to the Novastar series, known for slim, mobile, and versatile enclosures designed to house servers and networking hardware in demanding professional environments including industrial automation, data centers, telecommunications, and commercial IT.

The cabinet provides ingress protection class IP20, effectively protecting internal equipment from solid objects larger than 12.5 mm, with no liquid ingress protection. It supports a maximum static load capacity of 200 kg for equipment mounted within rack units 9U through 25U, ensuring robust support for a wide range of hardware setups.

Included with the cabinet are two 1mm steel side panels secured by twist-locking catches, contributing to easy access and maintenance, and a flush top cover. The design allows the front door (available separately) to be mounted with a 180° opening angle, optimizing accessibility and security.

The cabinet's compact depth of 600 mm and width of 553 mm, achieved through recessed flush side panels, suits environments where space is constrained but accessibility and equipment protection remain critical. Four durable feet support floor standing mounting stability.

Additional accessories such as doors, rear panels, bases, shelves, slide rails, and castors are available separately to customize the cabinet to specific installation and operational requirements.

The cabinet supports 20 rack units conforming to 19 inch standards. Constructed with steel and die cast aluminium extrusion for strength and lightness. Provides protection level IP20 against solids, no liquid protection.

Equipped with quick release side panels and flush cladding for ease of use and compact footprint. Static load capacity rated to 200 kg to securely house server equipment. Optional doors with 180° opening angle improve security and serviceability.

Includes four feet for robust floor standing installation. Ideal for industrial, laboratory, server room, HVAC, manufacturing, and commercial rack mounting applications. Explore the extensive nVent SCHROFF range of Server Cabinets at EnvMart for professional enclosures optimized for security, durability, and modularity.
