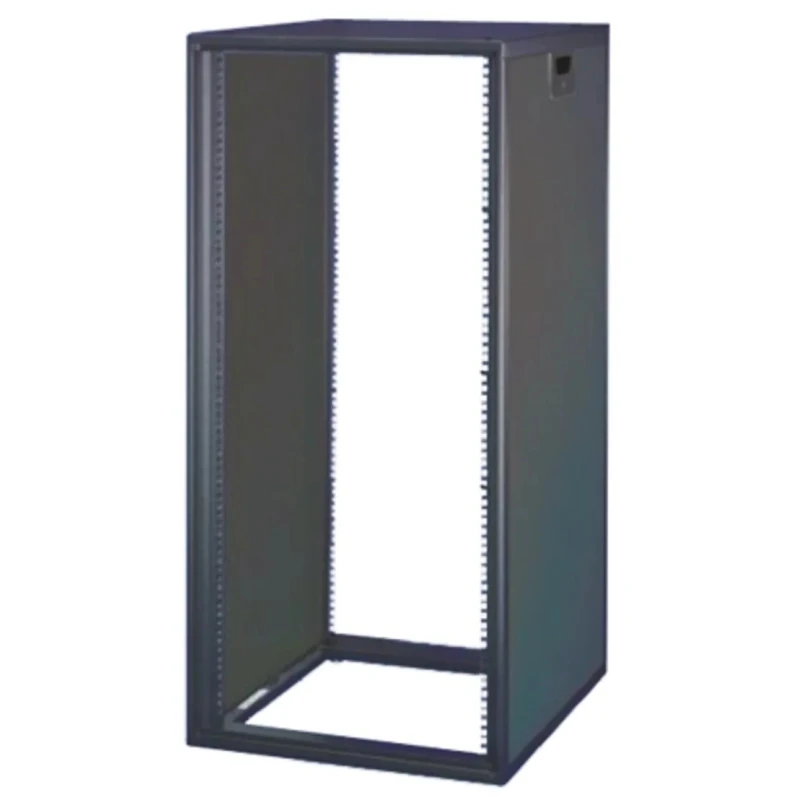

nVent SCHROFF Novastar Series 12U Floor Standing Single Door Server Cabinet Steel Grey 589mm Height 553mm Width 16230-002

nVent SCHROFF 16230-002 Novastar Series 12U Floor Standing Server Cabinet is a robust and slim server enclosure designed to house 19 inch rack mount equipment in industrial, commercial, and data center applications. The cabinet features a steel construction with a grey powder-coated finish, providing durability and resistance to environmental influences.

The cabinet supports 12 rack units (12U) in a compact footprint with external dimensions of 589mm height, 553mm width, and 500mm depth, enabling optimized use of floor space. It is designed for floor standing installation and incorporates a single door with a 180° opening angle (door not included) allowing secure access and straightforward equipment maintenance.

The Novastar series server cabinets meet international safety and quality standards including DIN EN 50178, IEC 61587-1, IEC 60297-3-100, and IEC 60529. It comes with ingress protection classes IP20 and IP40, suitable for protecting electronic equipment from dust and solid object penetration but not liquid ingress, ideal for controlled indoor environments.

Supplied components include die cast aluminium extrusion uprights with 19 inch cut-outs and steel side panels featuring twist-locking catches, along with a steel flush top cover and feet for stable placement. The cabinet supports static loads up to 200 kg, catering to network and server equipment demands.

Optional accessories such as doors, rear panels, base plates, slide rails, shelves, and castors are available separately to customize the cabinet for specific installation needs and enhanced security.

The cabinet features 12U rack height, suitable for mounting standard 19 inch industrial server and networking hardware. Floor standing design ensures stability for heavier equipment installations. Durable steel construction with a protective grey coating offers long-term resistance to wear and environmental factors.

Ingress protection rating up to IP40 provides effective dust protection in controlled environments. Compliant with multiple IEC and DIN standards guaranteeing quality and safety. Side panels with twist-lock catches enable easy access for maintenance and installation.

Supplied frame and feet support stable, upright positioning of equipment racks.

This server cabinet is ideal for data centers, telecommunications, industrial automation control rooms, and IT infrastructure setups requiring a secure, standard-compliant housing for sensitive electronic equipment. Explore more Server Cabinets and industrial electrical enclosures on EnvMart for comprehensive infrastructure solutions.
