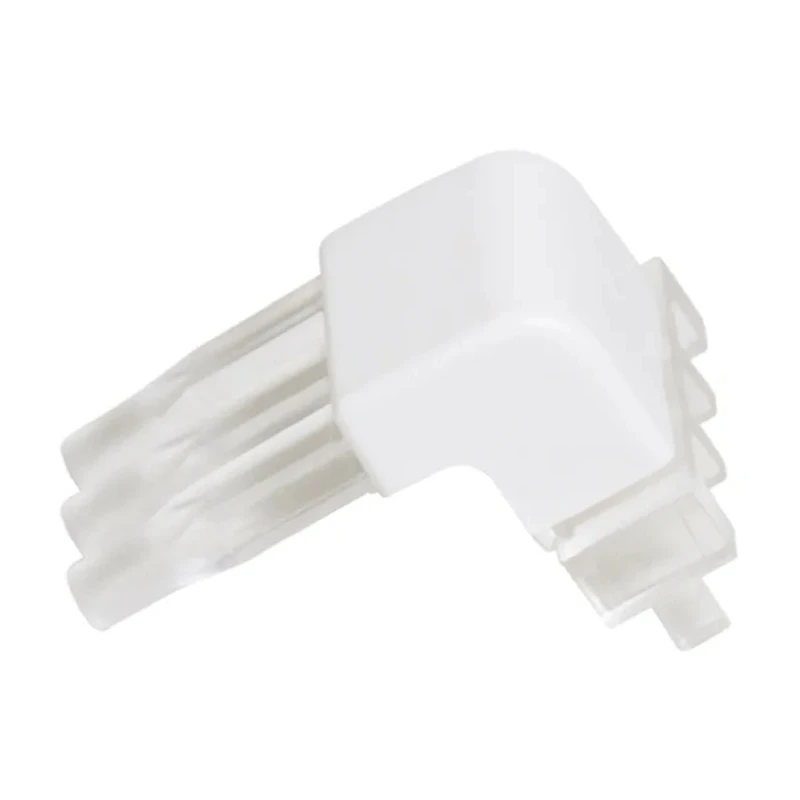

Bivar PCB 3-Way Right Angle Rigid LED Light Pipe Clear 2.8 mm RLP3-200-800

Bivar RLP3-200-800 PCB 3-Way Right Angle Rigid LED Light Pipe Clear 2.8 mm is designed for effective optical light pipe applications in electronic components. This rigid light pipe assembly features a 2.8 mm round lens with a right angle orientation to enable efficient light redirection from LEDs mounted on PCBs.

The light pipe is constructed with durable materials featuring a white outer protective housing that provides ESD protection and mechanical isolation to prevent accidental damage to the PCB assembly. Its snap-in mounting system is designed for easy installation on PCBs with a recommended thickness of 0.062 inches, ensuring secure positioning and stable operation.

This model includes three light pipe ways arranged in a 1 x 3 row-column configuration, allowing simultaneous output from three LEDs to a remote location on the device or panel. The light pipes provide uniform and diffused light output, making them suitable for indicator and signaling applications in industrial, electronic manufacturing, and commercial equipment.

Bivar’s RLP3 series complies with RoHS environmental standards, ensuring the product meets regulations for hazardous substances in electronics manufacturing. The light pipe has a length of 23 mm, providing ample length for light transmission while maintaining compact dimensions for PCB integration.

The output lens diameter is 2.8 mm, optimized for precise light focusing and low loss. Right angle orientation enhances design flexibility by allowing LED light to be directed away from the PCB surface. Snap-in mounting allows easy and repeatable installation on the recommended PCB thickness.

Rigid construction offers mechanical stability and robustness in harsh environments. No LEDs are included; this product serves as an optical element only. The elevation of the center of the output lens above the PCB is 5 mm in this model, aiding in clearance and light positioning.

Supplies uniform diffused light output suitable for industrial and commercial LED lighting needs.

This product is widely used in industrial electronics, telecommunications, instrumentation panels, and other electronic devices requiring precise optical light routing from LEDs on circuit boards. It supports enhanced device reliability and operational safety by preventing direct LED exposure and providing ESD shielding.
