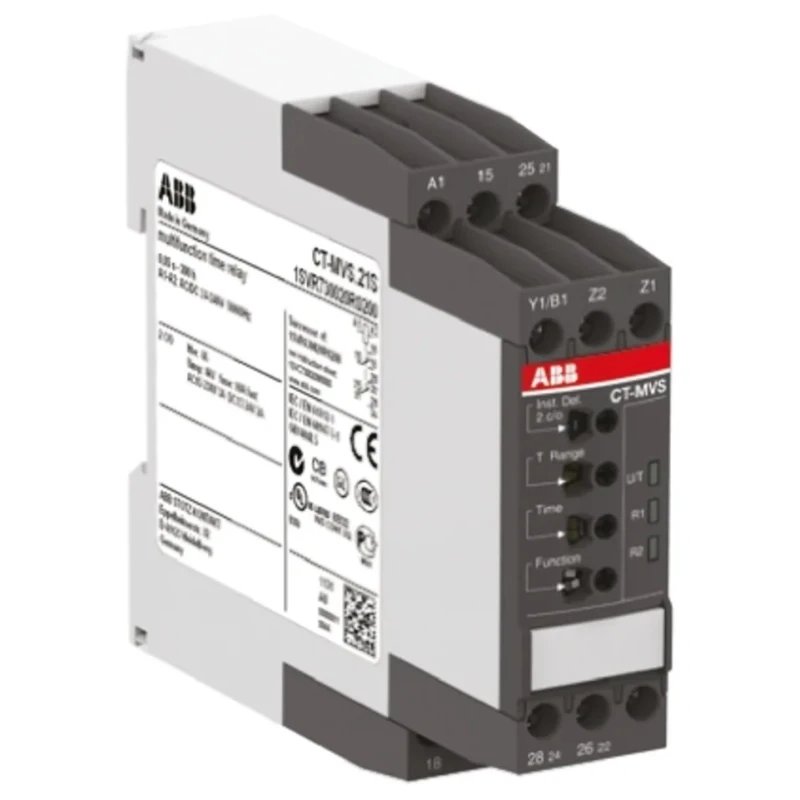

ABB CT-MVS Series DIN Rail Snap-On Multifunction Timer Relay 2-Contact 24 V dc 240V ac 0.05 s to 1SVR730020R0200 CT-MVS.21S

ABB 1SVR730020R0200 CT-MVS.21S is a high-quality DIN Rail Snap-On multifunction timer relay designed for reliable control in automation and electrical systems. It operates with a supply voltage range of 24 V dc to 240V ac and provides precise timing from 0.05 seconds up to 300 hours, making it suitable for a wide variety of timing applications industrially.

This timer relay provides 11 timer functions including ON-delay, OFF-delay, impulse ON and OFF, symmetrical ON and OFF delays, flasher with start ON or OFF, star-delta change-over with impulse, pulse former, accumulative ON delay, and ON/OFF function, selectable via a rotary switch with international symbols for ease of configuration.

It features a compact design with dimensions of 86.5mm (height), 85.6mm (length), and 22.5mm (width), enabling easy integration into DIN rail-mounted panels. The snap-on mounting mechanism offers tool-free installation and removal. Connection terminals utilize a double-chamber cage screw design, facilitating secure wiring and maintenance.

The relay is equipped with a single-pole double-throw (SPDT) contact configuration, capable of switching 4A contact current safely. It is rated IP50 for protection against dust, with a wide operating temperature range from -40°C to 60°C, ensuring robust performance in harsh environments.

Operational status is visible via three LEDs, aiding in diagnostics and reducing downtime. The device's continuous rated control voltage supports worldwide voltage standards seamlessly. Manufactured in Germany under strict quality standards (RoHS and CE certified), this timer relay suits an array of industrial applications including conveyor belt control, motor start control systems, and industrial furnace automation.

ABB’s CT-MVS series timer relay is an excellent choice where precise, customizable timing and reliable switching are critical. The compact size, multifunction capabilities, and durable build make this relay ideal for control systems in manufacturing, process automation, HVAC, and other industrial sectors.

This timer relay supports 11 different timing functions for versatile industrial applications. It features a screwdriver slot for timing adjustment and screw terminals for secure, easy wiring. The device is designed for DIN rail mounting with snap-on installation for convenience.

3 LEDs display operational status to aid troubleshooting and ensure reliability. Has a contact current rating of 4A and SPDT contact configuration for efficient switching. Operates in a temperature range from -40°C to 60°C with an IP50 rating for protection.

Compact dimensions of 86.5mm height, 85.6mm length, and 22.5mm width fit standard enclosures. Suitable for automation, conveyor control, motor start systems, and industrial furnaces. Explore more timer relay products like the ABB CT-MVS series and similar reliable control components from leading industrial automation categories on EnvMart.
