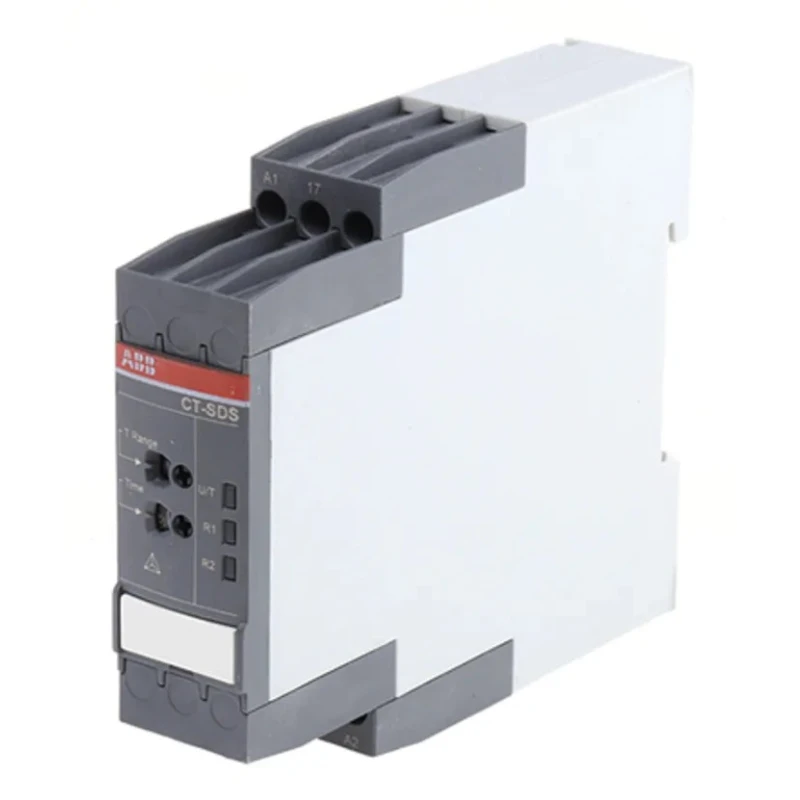

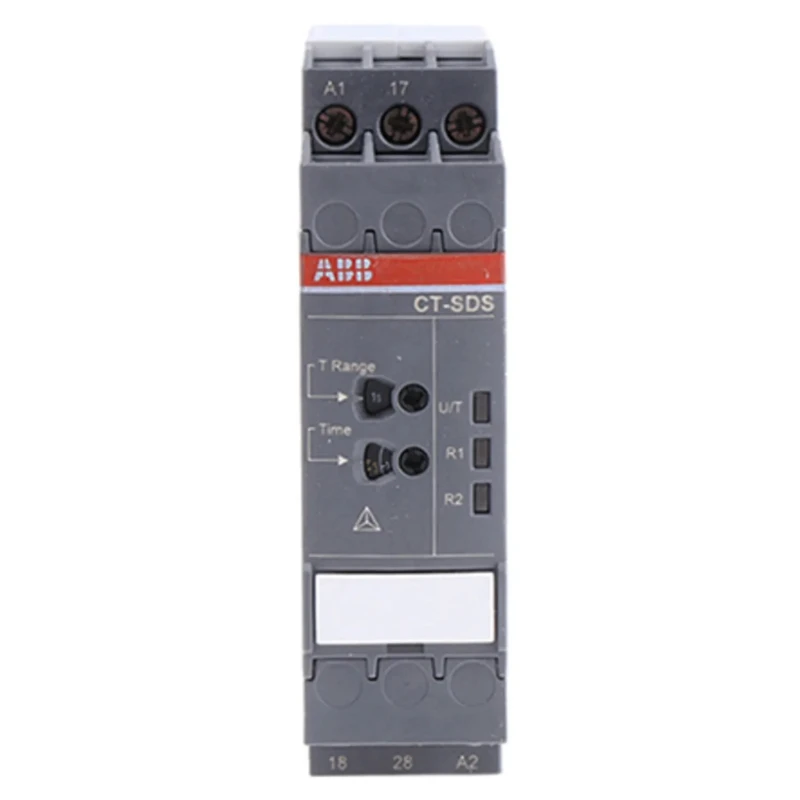

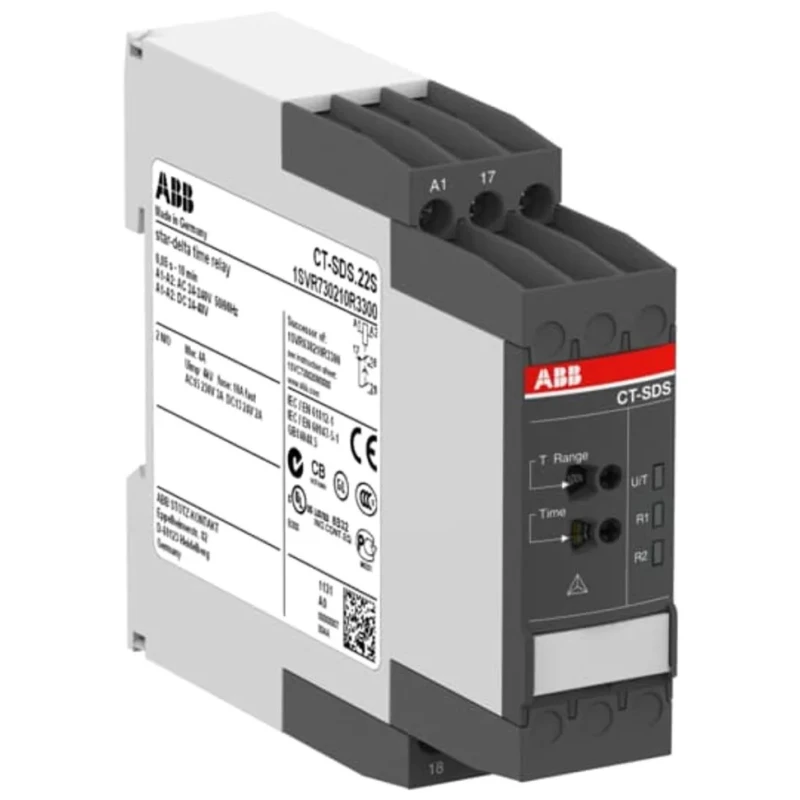

ABB CT-SDS.225 Series DIN Rail Timer Relay 2-Contact DPST 48 V DC 24/240 V AC 0.05 s to 10 min 1SVR730210R3300 CT-SDS.22S

ABB 1SVR730210R3300 CT-SDS.22S Series DIN Rail Timer Relay is a versatile and reliable industrial control device designed for time-delayed switching in automation systems. It features a 2-contact Double Pole Single Throw (DPST) contact configuration and supports a wide voltage range from 48 V DC to 240 V AC, accommodating various power supply options.

This timer relay provides a configurable time range from 0.05 seconds up to 10 minutes with one timer function, allowing precise control over process timing and start sequences. Its compact dimensions of 85.6 mm length, 22.5 mm width, and 113.4 mm height enable efficient use of panel space, while DIN rail mounting and screw terminals ensure straightforward installation and wiring.

The device's enclosure rating of IP50 and IP20 protects against dust ingress, maintaining reliable operation in industrial and commercial environments. It operates effectively within a temperature range from -25°C to 60°C, suitable for harsh operational conditions. Additionally, the relay includes three LEDs to indicate its operating status, simplifying diagnostics and monitoring.

Featuring cadmium-free contacts, this timer relay offers an environmentally conscious choice without compromising performance. With a mechanical lifespan rated up to 30 million switching cycles, it ensures long-lasting durability for demanding applications. The star-delta mode function reduces harmful inrush current during motor starting by initially energizing the motor in a star configuration.

Typical applications include lighting control systems, industrial process control, motor starters, and heating, ventilation, and air conditioning (HVAC) equipment, making this product ideal for industrial automation and building management systems.

The relay has a single timer function with a 2-contact DPST configuration. Compatible with supply voltages of 48 V DC and 24 to 240 V AC. Compact DIN rail mount design with screw terminal connections. Enclosure with IP50 and IP20 ratings protects against dust.

Operates in temperatures ranging from -25°C to 60°C. Features 3 inbuilt LEDs for easy status monitoring. Environmental compliance with cadmium-free contacts. Mechanical lifespan of up to 30 million switching cycles. Star-delta mode reduces inrush current during motor startup.
