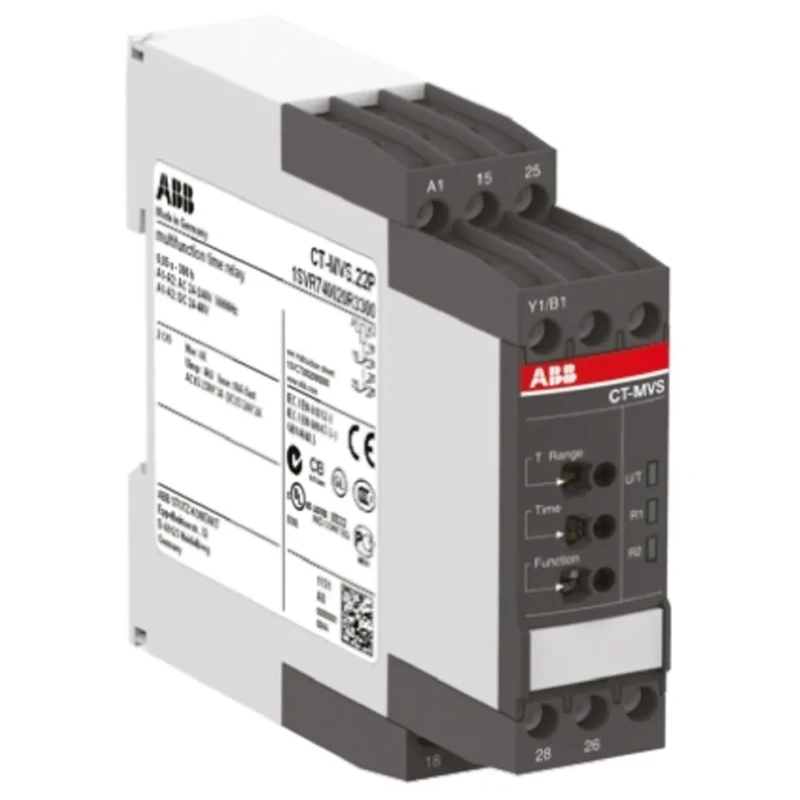

ABB DIN Rail Multifunction Timer Relay 2-Contact DPDT 48 V DC, 24/240 V AC, 0.05 s to 300 h 1SVR740020R3300 CT-MVS.22P

ABB 1SVR740020R3300 CT-MVS.22P is a high-quality multifunction electronic timer relay designed for DIN rail mounting within electrical and automation control panels. It offers extensive timer functions spanning from 0.05 seconds to 300 hours, suitable for industrial, manufacturing, HVAC, and laboratory applications that require precise timing control.

This timer relay features a 2-contact DPDT (Double Pole Double Throw) switch configuration, enabling robust switching for diverse loads. The unit supports dual supply voltages of 48 V DC and 24/240 V AC, providing flexible integration options within different control systems.

Constructed with IP50 and IP20 ratings, it provides reliable protection against dust and certain environmental hazards in industrial settings. The timer relay supports multiple timing functions including ON-delay, OFF-delay with auxiliary voltage, impulse ON/OFF sequences, symmetrical delays, flasher options, star-delta changeover impulses, pulse forming, and accumulative delays, offering a wide application scope.

The device utilizes push-in terminal technology, allowing tool-free wiring for faster installation and maintenance. It is housed within a compact enclosure measuring 113.4 mm in height, 85.6 mm in length, and 22.5 mm in width, optimizing space on standard DIN rails.

The front panel provides precise setting adjustments via operating elements and includes three LEDs to indicate operational status, enhancing user interface and diagnostics. The timer relay operates reliably within a temperature range of -25°C to 60°C, ensuring stable performance in varying industrial environments.

This product complies with RoHS standards, assuring environmental safety and quality. The CT-MVS series timer relays are ideal for control circuits requiring multifunction timing with high accuracy and flexible configuration capabilities.

For industrial automation, electrical control panels, manufacturing lines, HVAC systems, and other applications demanding precise timer functionality, the ABB CT-MVS.22P timer relay is a dependable choice.

Supports 5, 10, or 11 multifunction timing options. Compact DIN rail mount design with tool-free push-in terminals. Wide operating voltage range for AC and DC supply. Compliant with RoHS environmental standards. Protective IP50 and IP20 enclosure ratings.

LED indicators for status monitoring. Robust temperature operating range from -25°C to 60°C. Exact timing adjustment via front-face controls. Includes DPDT contact configuration with a 4 A current rating. Explore more Timer Relays and electrical automation components at EnvMart for your industrial and commercial needs.
