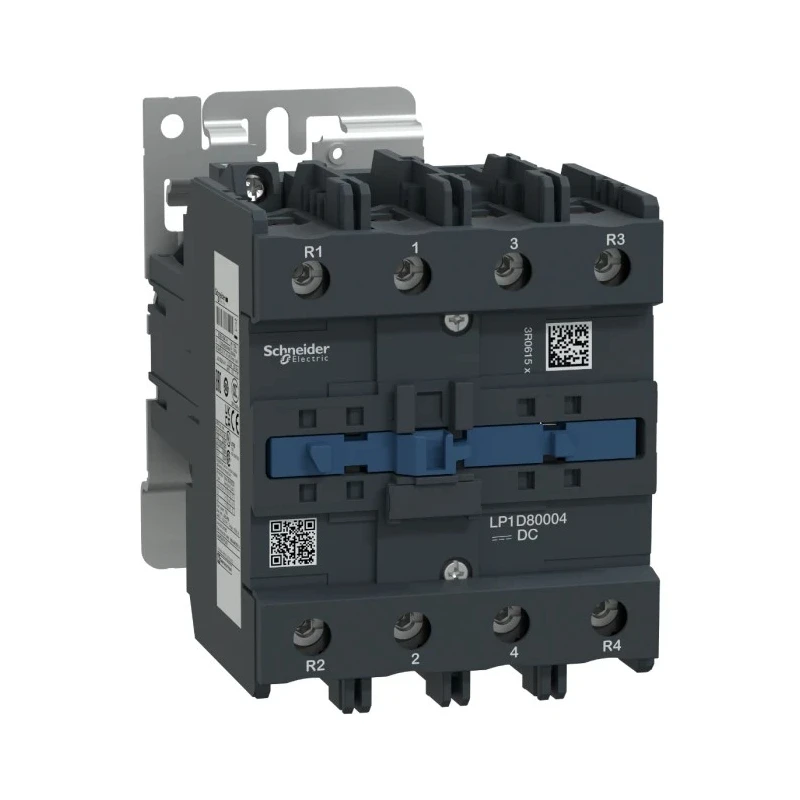

Schneider Electric TeSys D 24V DC Coil 4-Pole Contactor 125A 4 NO 1kV AC LP1D80004BW
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 127mm |
| Model | LP1D80004BW |
| Depth | 125mm |
| Width | 96mm |
| Mount Type | DIN Rail |
| Series | LP1D |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -60°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 1kV ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 125A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 4 NO |
| Operational Current Ie | 124A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for both motor control and resistive load applications.
- Equipped with a 24V DC coil voltage for stable operation.
- Features 4 poles with screw-type IP20 finger-safe terminals.
- Supports control circuit voltage of 24V DC with a contact voltage of 1kV AC.
- Operates efficiently from -60°C to 80°C temperature range.
- Mounts easily on a DIN rail for installation flexibility.
- Includes 4 normally open auxiliary contacts with 4 NO configuration.
- Complies with CSA and UL safety standards.
Product Description
Schneider Electric LP1D80004BW is a TeSys D series contactor designed for industrial automation and motor control applications, operating with a 24V DC coil voltage and capable of handling 125A contact current across 4 poles. This contactor features screw-type IP20 finger-safe terminals and supports a contact voltage of 1kV AC, ensuring safe and reliable switching performance.
It is suitable for motor control and resistive load functions, with a control circuit voltage of 24V DC. The contactor can function effectively in extreme temperature conditions ranging from -60°C minimum up to 80°C maximum, making it adaptable to harsh industrial environments.
The unit mounts conveniently on DIN rails, providing installation flexibility in electrical panels. It includes 4 normally open (NO) auxiliary contacts with screw terminals, enabling extended control and signaling options.
Schneider Electric’s TeSys D contactors are known for their high mechanical and electrical endurance, employing a double break pole design with linear translation movement that ensures double breaking of poles for enhanced safety and durability.
This product complies with CSA and UL approvals, underscoring its quality and adherence to international standards. Additionally, it is a Better World product designed with sustainability in mind, featuring easy disassembly for recycling and environmental responsibility.
Designed for motor control and resistive loads. 24V DC coil voltage ensures wide control voltage band and low permanent consumption. IP20 finger-safe screw terminals with both North American and International markings. Double breaking poles with linear translation for reliable making and breaking.
Wide operating temperature range from -60°C to 80°C. Mountable via DIN rail or panel screws for versatile installation. 4 NO auxiliary contacts for enhanced control capability. CSA and UL certified for industrial safety standards.
Better World product designed for disassembly and sustainability.
This Schneider Electric TeSys D contactor is ideal for industrial, manufacturing, HVAC, and commercial automation applications, including motor starters, lifts, conveyors, compressors, pumps, and mixers. It offers quick and simple setup while maintaining robust operational performance and compliance.
Explore more Contactors and control gear solutions in the Electronics & Electricals Automation & Control Gear category on EnvMart to find complementary products for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric TeSys D LP1D80004BW has a contact current rating of 125A.
This contactor operates with a coil voltage of 24V DC.
It features 4 poles, configured as normally open (4 NO).
The operating temperature range is from -60°C to 80°C.
It is equipped with screw-type IP20 finger-safe terminals.
The dimensions are 127mm in length, 125mm in depth, and 96mm in width.
It complies with CSA and UL safety standards.
It is designed for motor control and resistive load applications.
This contactor mounts easily on a DIN rail, providing installation flexibility.
The contact voltage rating is 1kV AC.
It includes 4 normally open auxiliary contacts.
The country of origin for this contactor is the Czech Republic.
