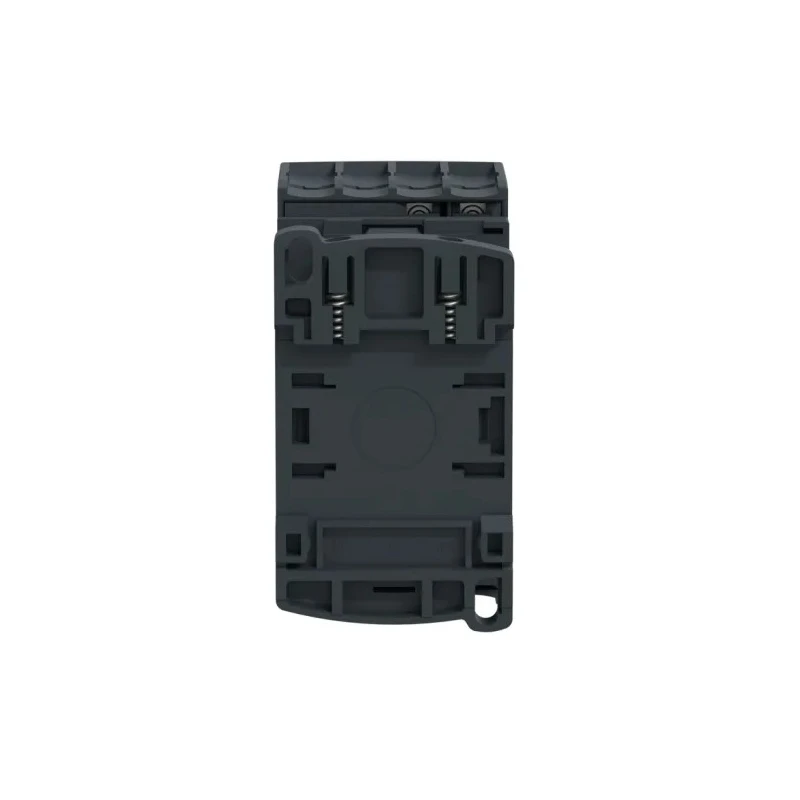

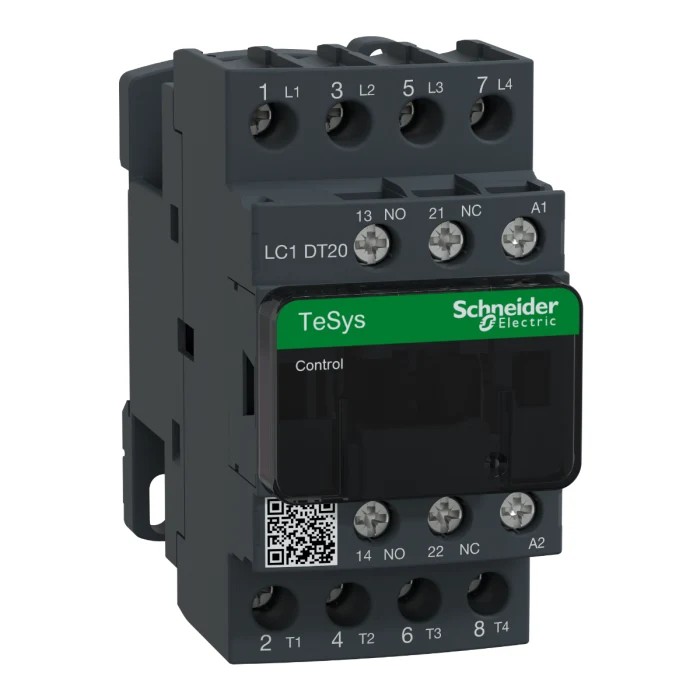

Schneider Electric LC1DT20U7 TeSys D Contactor, 230V AC Coil, 4-Pole, 20A 240V, 4 NO, 690V AC/DC LC1DT20U7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1DT20U7 |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 230V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 20A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 240V |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 230V AC coil suitable for a 240V control circuit voltage.
- Features 4 poles with 4 normally open contacts rated for 20A at 240V.
- Suitable for resistive load applications with contact voltage up to 690V AC/DC.
- Compact size with DIN rail mounting and screw clamp terminals for easy installation.
- Built-in auxiliary contacts including one normally open and one normally closed (NC) mirror certified contact.
- Operates reliably up to 60°C ambient temperature and supports up to 3600 cycles per hour.
- Certified to multiple standards including CSA, UL, IEC, CCC, EAC, and Marine standards.
- Designed for industrial automation and motor control in harsh environments.
Product Description
Schneider Electric LC1DT20U7 TeSys D Contactor is a high-quality 4-pole contactor with a 230V AC coil designed for motor control and resistive load applications. This contactor supports a control circuit voltage of 240V and provides a contact current rating of 20A at 240V resistive load with contact voltage capacity up to 690V AC/DC.
Its compact design measures 85mm in length, 45mm in width, and 92mm in depth, making it suitable for DIN rail mounting or screw fixing, simplifying integration into control panels.
Equipped with screw clamp terminals that are IP20 finger-safe and marked for both North American and International standards, it ensures safe and secure electrical connections. Built to operate in ambient temperatures ranging from -40°C to 60°C, it provides durable and reliable performance in demanding industrial environments.
The contactor includes one normally open and one normally closed auxiliary contact, with the NC contact being mirror certified for added reliability.
With approvals from multiple international standards bodies such as CSA, UL, IEC, CCC, EAC, and Marine certifications, and compliance to RoHS/REACh as a Green Premium product, it meets global quality and environmental requirements.
Typical applications include motor starters, resistive load switching, and automation systems in industrial, manufacturing, HVAC, and commercial environments. Equipped with a 230V AC coil suitable for a 240V control circuit voltage.
Features 4 poles with 4 normally open contacts rated for 20A at 240V. Suitable for resistive load applications with contact voltage up to 690V AC/DC. Compact size with DIN rail mounting and screw clamp terminals for easy installation.
Built-in auxiliary contacts including one normally open and one normally closed (NC) mirror certified contact. Operates reliably up to 60°C ambient temperature and supports up to 3600 cycles per hour. Certified to multiple standards including CSA, UL, IEC, CCC, EAC, and Marine standards.
Designed for industrial automation and motor control in harsh environments. Explore more Schneider Electric Contactors and automation products on EnvMart for advanced industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 230V AC, suitable for a control circuit voltage of 240V.
It can handle contact voltages up to 690V AC/DC, making it suitable for various applications.
This contactor features 4 poles, with a configuration of 4 normally open contacts.
The LC1DT20U7 is rated for a contact current of 20A at 240V for resistive load applications.
It measures 85mm in length, 45mm in width, and 92mm in depth, making it compact for installation.
It is designed for DIN rail mounting, facilitating easy integration into control panels.
The operational temperature range is from -40°C to 60°C, allowing it to function in harsh environments.
Yes, it includes two auxiliary contacts: one normally open and one normally closed, with the NC contact being mirror certified.
It is certified to multiple standards including CSA, UL, IEC, CCC, EAC, and Marine standards.
This contactor is suitable for motor control, resistive load switching, and automation systems in industrial and commercial environments.
It features screw clamp terminals that are IP20 finger-safe and marked for both North American and International standards.
It supports up to 3600 cycles per hour, ensuring efficient operation in demanding applications.
