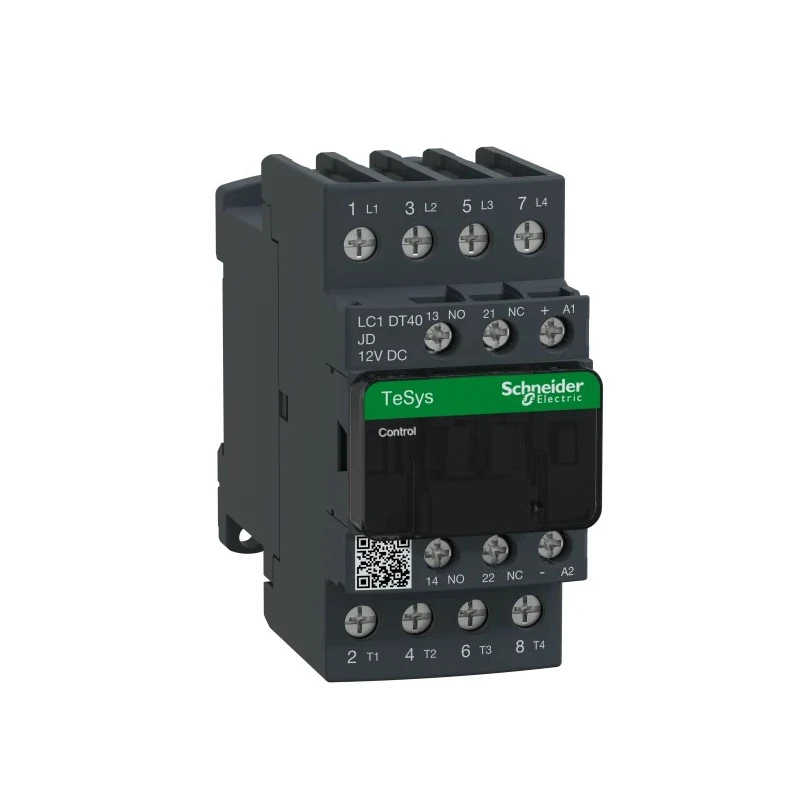

Schneider Electric LC1D Contactor, 12V DC Coil, 4-Pole, 40A, 17.6 kW, 4 NO, 690V AC/DC LC1DT40JD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1DT40JD |
| Depth | 107mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 17.6kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 12V dc |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 12V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates at 12V DC coil voltage for precise control.
- Supports 40A contact current with 4 normally open poles.
- Rated power of 17.6 kW for diverse industrial applications.
- Compact design with DIN Rail mount for easy installation.
- Equipped with screw clamp terminals for secure connections.
- Includes 2 auxiliary contacts with 1 normally open configuration.
- Operates reliably between -40°C and 60°C.
- Complies with CSA and UL standards for safety.
Product Description
Schneider Electric LC1DT40JD is a high-quality TeSys D Contactor featuring a 12V DC coil and 4 poles (4 normally open). It is ideal for motor control and resistive load applications offering a power rating of 17.6 kW and contact current of 40A. Compact and durable, it mounts easily on DIN rails or by screw fixing.
The contactor includes built-in auxiliary contacts (one normally open and one normally closed, the latter mirror certified) to enhance control capabilities. Terminals use screw clamps for both load and auxiliary connections, ensuring robust and reliable installation.
Designed for operating temperatures from -40°C to 60°C, the device supports operating rates up to 3600 cycles per hour, making it suitable for demanding industrial environments. It is compliant with multiple certifications including CSA, UL, IEC, CCC, EAC, and Marine standards, and meets RoHS/REACh Green Premium requirements.
Applications encompass a wide range of industrial uses such as motor starters for various machinery, resistive load control, HVAC systems, manufacturing plants, and water treatment facilities. The device’s compact size and multiple mounting options facilitate integration into existing control panels.
Operates at 12V DC coil voltage for precise coil control. 4 poles provide 4 normally open contacts suitable for various load switching. High power rating allows control over motors and resistive loads up to 17.6 kW. Screw clamp terminals guarantee secure electrical connections.
Auxiliary contacts provide additional control flexibility. Certified for safety and reliability across major global standards. Robust construction ensures long mechanical and electrical life. Compact DIN rail mount design saves panel space.
Designed to operate in harsh environments with wide temperature tolerance. Green Premium status highlights sustainable design and reduced environmental impact.
Schneider Electric’s TeSys D Contactor range combines excellent reliability and ease of use, making LC1DT40JD an ideal solution for diverse industrial automation and control requirements. Explore the full range of Schneider Electric control gear at EnvMart for optimized system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1DT40JD contactor has a power rating of 17.6 kW, suitable for various industrial applications.
This model supports a contact current of 40A, making it suitable for motor control and resistive load applications.
The LC1DT40JD operates with a coil voltage of 12V DC, providing precise control for the contactor.
The dimensions of this contactor are 91mm in length, 45mm in width, and 107mm in depth.
This contactor features 4 poles, all configured as normally open (4 NO).
The LC1DT40JD can operate reliably between -40°C and 60°C, making it suitable for harsh environments.
It is equipped with screw clamp terminals, ensuring secure electrical connections for both load and auxiliary connections.
Yes, it includes 2 auxiliary contacts, with 1 configured as normally open.
This contactor complies with CSA and UL standards, ensuring safety and reliability in its applications.
It is suitable for motor control, resistive load control, HVAC systems, manufacturing plants, and water treatment facilities.
The contactor is designed for DIN rail mounting, allowing for easy installation in control panels.
The operational current rating for the LC1DT40JD is also 40A, consistent with its contact current capacity.
