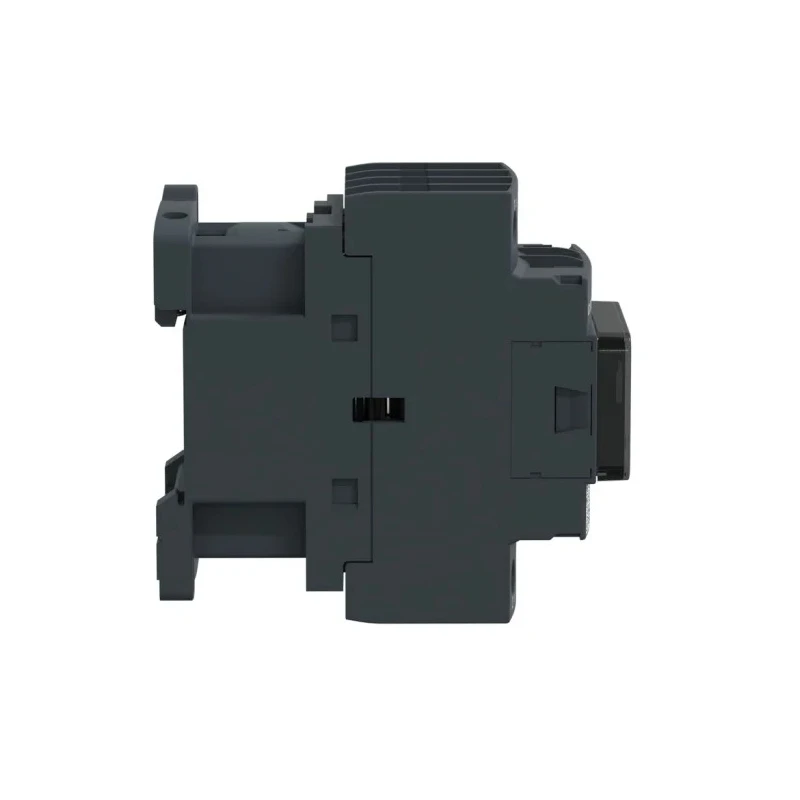

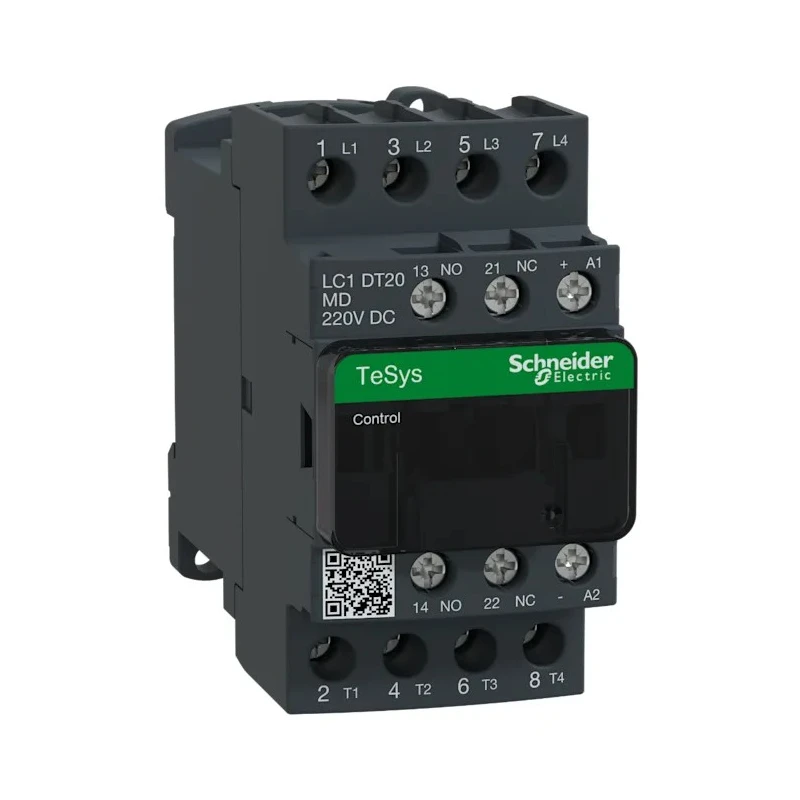

Schneider Electric TeSys D 4-Pole Contactor 20 A, 8.8 kW 220V, 4 NO, 230V DC Coil LC1DT20MD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1DT20MD |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 8.8kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 230V dc |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 20A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 220V |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor features a compact 45mm width suitable for DIN rail mounting.
- It supports resistive load applications with a 20 A contact current rating.
- Includes 4 normally open main contacts and 2 auxiliary contacts.
- Screw clamp terminals provide secure wiring with IP20 finger-safe protection.
- Operates reliably within the temperature range of -5°C to 60°C.
- Meets multiple certifications including UL, CSA, IEC, CCC, EAC, and Marine standards.
- Green Premium product compliant with RoHS and REACh environmental regulations.
- Ideal for motor starters, industrial automation, and resistive load control applications.
Product Description
Schneider Electric LC1DT20MD is a robust TeSys D series motor control contactor designed for industrial and commercial automation systems. The contactor features a 230V DC coil and a 4-pole configuration providing a 20A resistive load rating and power handling of 8.8 kW at 220V AC-1.
This contactor is compact, measuring 45mm in width, 85mm in length, and 99mm in depth, allowing for DIN rail mounting or screw fixing in control panels. It includes 4 normally open main contacts ideal for non-inductive loads and 2 auxiliary contacts, one of which is normally open and the other normally closed with mirror certification.
The device supports operational temperatures from -5°C to 60°C, ensuring durability in varied industrial environments. Screw clamp terminals with IP20 finger-safe rating ensure reliable and safe electrical connections with both North American and international terminal markings.
Certified by multiple standards including UL, CSA, IEC, CCC, EAC, and Marine, the contactor is a Green Premium product compliant with RoHS and REACh directives, emphasizing sustainability and environmental responsibility.
Applications commonly include motor starters for a broad range of uses, resistive load control, pumps, compressors, conveyors, air conditioning systems, and other industrial automation controls. The transient suppressor module integrated into the coil adds protection and longevity.
The contactor is designed for integration into motor starters and industrial control systems. 4-pole, 4 NO contact configuration is suitable for powering and controlling motors and resistive loads. Screw clamp terminals with IP20 finger-safe protection improve user safety during installation.
Wide temperature range capability supports diverse installation environments. Compliant with numerous international standards ensuring reliable global usage. Green Premium certification enhances environmental sustainability credentials.
Choose Schneider Electric LC1DT20MD for a reliable, high-quality motor control contactor suitable for demanding electrical and automation applications. Explore extensive related automation and control gear products at EnvMart for comprehensive system solutions.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 20 A.
It has a power handling capacity of 8.8 kW at 220V AC-1.
This unit operates reliably within a temperature range of -5°C to 60°C.
This model features a 4-pole configuration.
It is designed for motor control and resistive load applications.
The contactor measures 45mm in width, 85mm in length, and 99mm in depth.
It features screw clamp terminals with IP20 finger-safe protection.
This model includes 2 auxiliary contacts: one normally open and one normally closed.
It meets multiple certifications including UL, CSA, IEC, CCC, EAC, and Marine standards.
The coil voltage for this contactor is 230V DC.
It is suitable for DIN rail mounting.
Common applications include motor starters, pumps, compressors, conveyors, and air conditioning systems.
