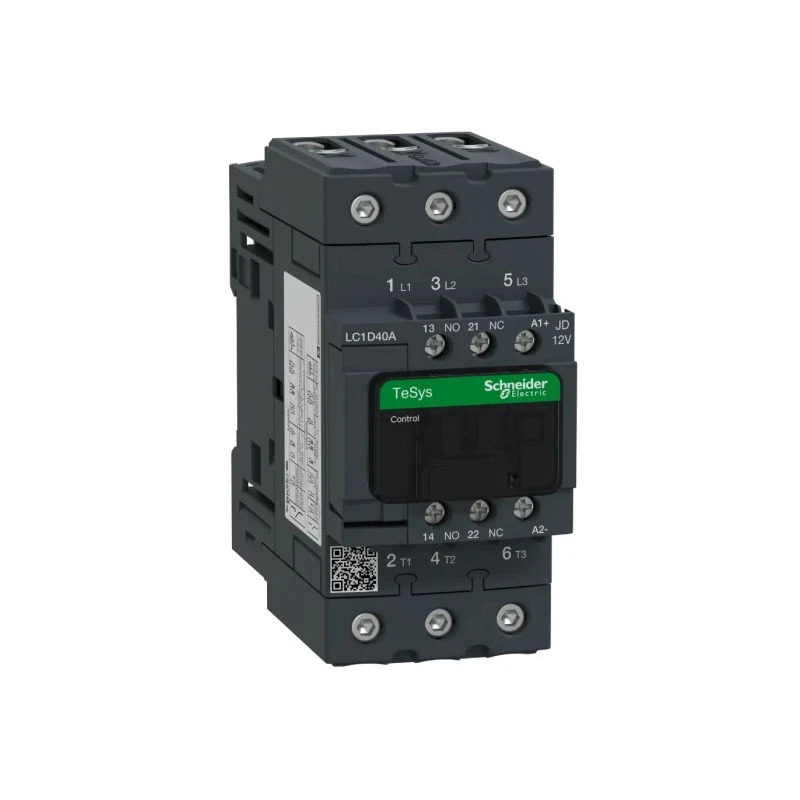

Schneider Electric LC1D Contactor, 12V DC Coil, 3-Pole, 40 A, 30 kW, 690V AC/DC LC1D40AJD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 122mm |
| Model | LC1D40AJD |
| Depth | 120mm |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 12V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 12V dc |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load applications.
- Features a compact 55mm width with DIN-rail mounting.
- Includes 3 normally open (NO) contacts with 2 auxiliary contacts (1 NO/1 NC).
- Supports operational currents up to 40A with maximum power rating of 30kW.
- Operates efficiently in temperatures from -5°C to 60°C.
- Durable screw clamp terminals for load and auxiliary connections.
- Complies with multiple standards including UL and CSA.
- Built-in transient suppressor module in the 12V DC coil for enhanced longevity.
Product Description
Schneider Electric LC1D40AJD is a robust TeSys Deca contactor featuring a 12V DC coil with a transient suppressor module. It has 3 poles with normally open contacts and supports motor control applications up to 40A and 690V AC/DC voltage.
This contactor is designed for resistive loads and motor control with high reliability, supporting up to 30kW power rating. It features a compact 55mm width and DIN-rail mounting compatibility for easy installation. The device includes two auxiliary contacts configured as 1 NO and 1 NC, with the NC contact mirror certified for safety.
The Schneider Electric LC1D40AJD operates within a temperature range of -5°C to 60°C, and its screw clamp terminals facilitate secure load and control connections. Rated for 10HP at 200-208VAC and 30HP at 480-600VAC three-phase, it can handle demanding industrial environments and provide a high breaking capacity when combined with appropriate circuit breakers and fuses.
This contactor meets international standards including IEC, UL, CSA, CCC, EAC, and Marine certifications and is RoHS/REACh Green Premium compliant, ensuring sustainability and environmental safety.
Ideal for applications in industrial automation, manufacturing plants, HVAC systems, and electrical motor starter assemblies, this contactor delivers excellent performance with guaranteed durability.
Designed for motor control and resistive load applications. Supports operational currents up to 40A with a 30kW power rating. Includes 3 poles with normally open contacts and 2 auxiliary contacts (1 NO/1 NC). Produces a reliable and compact solution with a 55mm width and DIN rail mounting.
Operates within temperature range of -5°C to 60°C. Equipped with screw clamp terminals for secure electrical connection. Meets UL, CSA, IEC, CCC, EAC, and Marine certifications. Green Premium compliant with RoHS and REACh standards.
EnvMart offers this Schneider Electric LC1D40AJD Contactor ideal for electrical engineers, industrial automation specialists, and those needing quality, robust motor control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 30 kW.
It operates efficiently within a temperature range of -5°C to 60°C.
This contactor features 3 poles with normally open contacts.
The coil voltage for this model is 12V DC.
It is designed for DIN rail mounting, allowing for easy installation.
This unit supports a contact current rating of 40A.
The contactor includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with multiple standards including UL and CSA, among others.
The dimensions are 122mm in length, 120mm in depth, and 55mm in width.
This contactor is designed for motor control and resistive load applications.
It is equipped with screw clamp terminals for secure electrical connections.
The contact voltage rating is 690V AC/DC.
