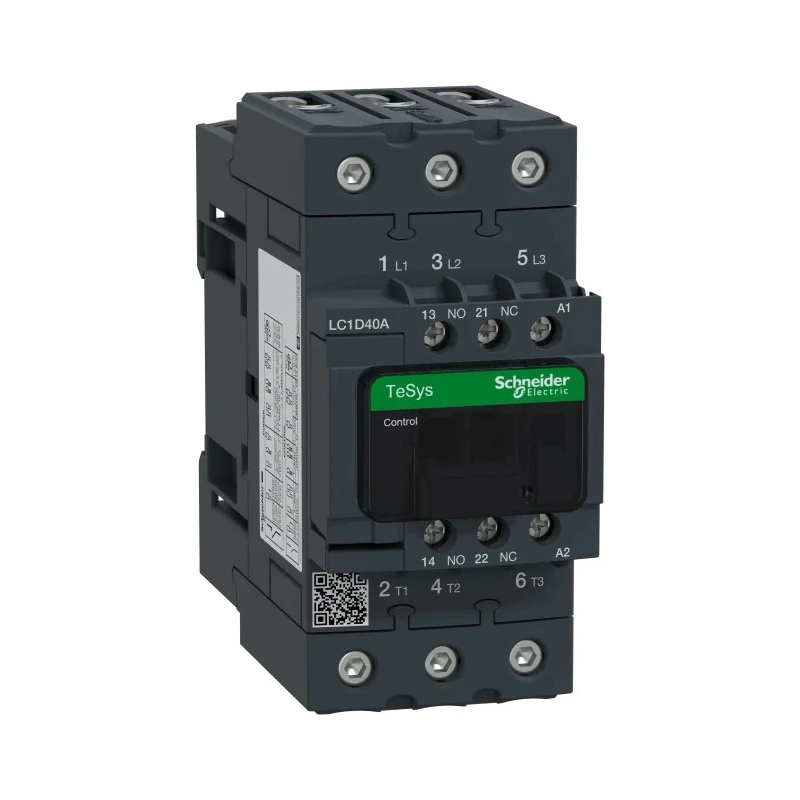

Schneider Electric LC1D TeSys D Contactor 36V AC Coil, 3-Pole, 40A, 30kW, 3 NO, 690V AC/DC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 122mm |
| Model | LC1D |
| Depth | 120mm |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 36V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 32V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 3 NO main contacts and 2 auxiliary contacts (1 NO/1 NC) for enhanced switching capability.
- Designed for DIN rail mounting with IP20 finger-safe screw terminals.
- Control circuit voltage of 32V and operational current rating of 40A ensure reliable performance.
- Wide operating temperature range from -5°C to 60°C for versatile industrial environments.
- Complies with CSA and UL standards for safety and quality assurance.
- Built-in bidirectional peak limiting diode suppressor protects the coil.
- Auxiliary contacts and flexible control circuits enable varied usage in motor starters and automation systems.
- Designed for sustainability with features that facilitate disassembly and component recycling.
Product Description
Schneider Electric LC1D40AC7 is a high-reliability TeSys D contactor designed for motor control and resistive load applications. Featuring a 36V AC coil and 3 poles rated for 40A current and 30kW power, it supports control circuits at 32V and can operate in temperatures from -5°C to 60°C. It meets international standards such as CSA and UL, ensuring safe and efficient use in industrial and commercial settings.
The contactor integrates three normally open (3 NO) main contacts and two auxiliary contacts configured as 1 NO/1 NC, allowing additional switching capabilities. Its construction offers screw connection terminals rated IP20 for finger safety, suitable for DIN rail or panel mounting, making installation quick and secure.
This device includes a bidirectional peak limiting diode suppressor to protect the coil against voltage spikes, enhancing durability. The TeSys D range is known for double break pole design using linear translation movement, which ensures reliable electrical and mechanical life suitable for motor starters across numerous load types.
Applications include controlling squirrel cage motors, conveyors, elevators, pumps, mixers, air conditioning units, and resistive loads such as heating equipment. The contactor's versatile design accommodates AC1 utilization categories for high power factor loads and AC3 for motor breaking under running conditions, ensuring dependable switching performance.
The product's compact dimensions (122mm length, 55mm width, and 120mm depth) and IP20-rated screw terminals allow easy integration into automation and control gear assemblies. Designed with sustainability in mind, it supports disassembly and component recycling, aligning with environmental responsibility goals.
3-pole contactor with 40A current rating. 36V AC coil voltage and 32V control circuit voltage. DIN rail mountable with finger-safe screw terminals. Meets CSA and UL safety standards. Designed for control of motors, pumps, compressors, and resistive loads.
Choose Schneider Electric LC1D40AC7 for reliable, efficient, and sustainable motor control and automation in industrial and commercial applications. Explore more Contactors and auxiliary contacts in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 36V AC.
It has a maximum current rating of 40A.
This contactor is designed for motor control and resistive load applications.
The power rating of this contactor is 30kW.
It can operate within a temperature range of -5°C to 60°C.
This model features 3 poles.
The dimensions are 122mm in length, 55mm in width, and 120mm in depth.
It is designed for DIN rail mounting.
It includes 2 auxiliary contacts configured as 1 NO (normally open) and 1 NC (normally closed).
This contactor complies with CSA and UL standards.
It features IP20 finger-safe screw terminals.
The control circuit voltage is 32V.
