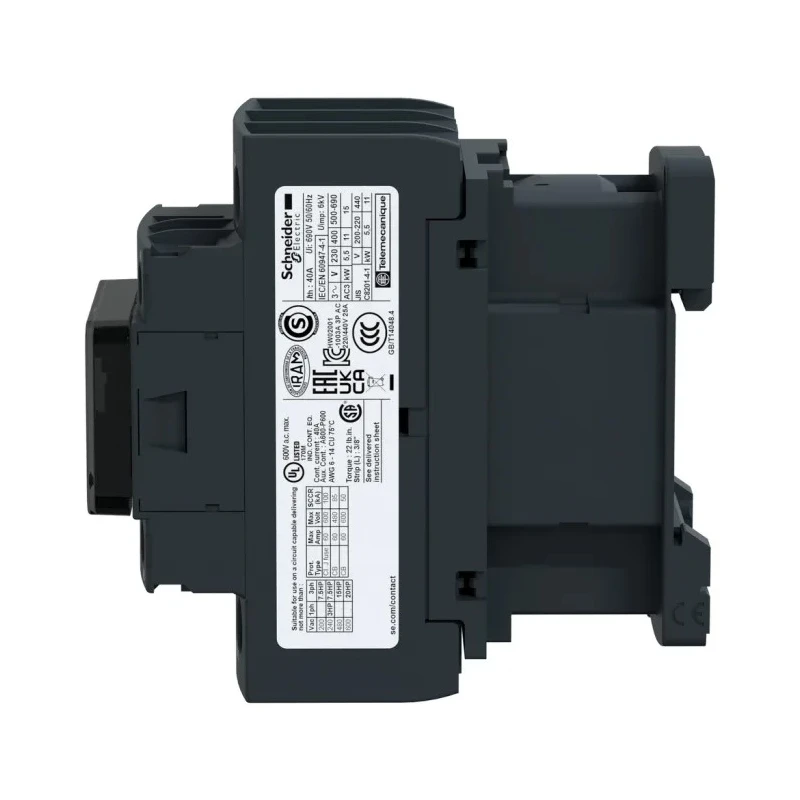

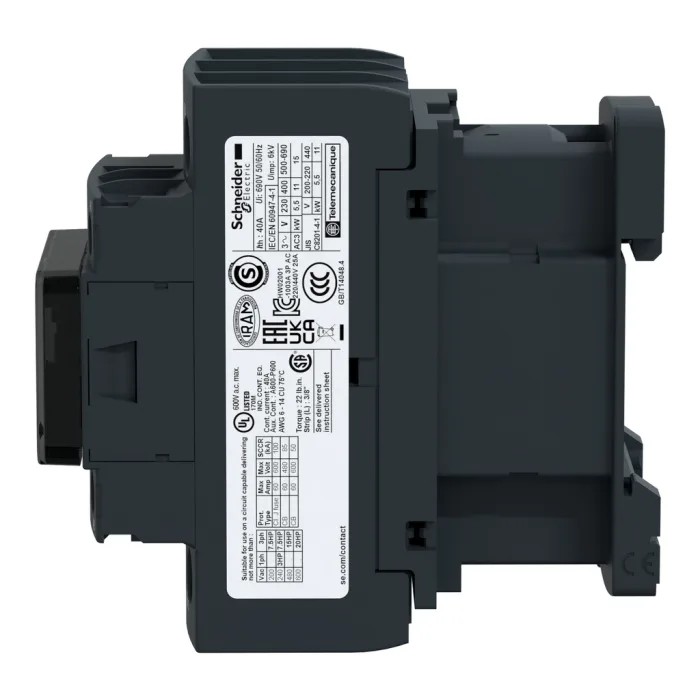

Schneider Electric LC1D Contactor, 42V AC Coil, 3-Pole, 32A, 2HP, 3 NO, 690V AC/DC LC1D32D7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D32D7 |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 2HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 42V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 42V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor features a 42V AC 50/60Hz coil for reliable operation.
- It has a 3-pole 3 NO configuration suitable for various motor starter applications.
- Screw clamp terminals ensure secure connections for load and auxiliary circuits.
- Compact DIN rail mount design allows easy installation in control panels.
- Supports operational temperatures ranging from -5°C to 60°C for versatile use.
- Certified to multiple standards including UL, CSA, IEC, CCC, EAC and Marine.
- Includes 1 normally open and 1 normally closed auxiliary contact with NC mirror certification.
- High reliability and durability for up to 3600 cycles per hour in demanding environments.
Product Description
Schneider Electric LC1D32D7 is a TeSys D series contactor designed for industrial and commercial motor control applications requiring high performance and reliability. The contactor features a 42V AC coil providing consistent magnetic operation suited for different control environments.
This 3-pole contactor supports a contact current rating of 32A and voltages up to 690V AC/DC, making it ideal for controlling motors and resistive loads with power ratings of up to 2HP. Its compact dimensions (85mm length, 45mm width, and 92mm depth) and DIN rail mounting option allow seamless integration into electrical panels.
The device incorporates screw clamp terminals for both load and auxiliary contacts, ensuring secure electrical connections. It includes one normally open and one normally closed auxiliary contact, with the NC contact mirror certified for added safety and reliability.
Certified under multiple international standards including UL, CSA, IEC, CCC, EAC, and Marine certifications, the contactor meets global safety and quality requirements while being RoHS/REACh compliant as a Green Premium product.
It operates efficiently within a temperature range of -5°C to 60°C and supports operating rates up to 3600 cycles per hour, suitable for demanding industrial environments such as manufacturing, HVAC systems, water treatment plants, and automation systems.
The contactor’s 42V AC coil and 3 NO configuration enable flexible motor control solutions. Screw clamp terminals facilitate installation and maintenance. Compact DIN rail mounting fits standard industrial panels. High power ratings accommodate a variety of motor sizes and voltages.
Wide operating temperature range ensures durability across environments. Meets multiple global approvals and standards for safety and performance. Includes auxiliary contacts for additional control and signaling functions.
Designed for applications in industrial automation and motor control sectors.
Set contains one Schneider Electric LC1D32D7 Contactor with complete technical specifications. This product is suitable for industrial, commercial, and automation use cases requiring reliable and efficient motor control.
Explore the full range of Schneider Electric products in the Automation & Control Gear category at EnvMart for trusted solutions in electrical and industrial automation equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor has a contact current rating of 32A, making it suitable for various motor control applications.
It can handle voltages up to 690V AC/DC, allowing it to control motors and resistive loads effectively.
This model features a coil voltage of 42V AC, which is designed for reliable operation in motor control applications.
The contactor has dimensions of 85mm in length, 45mm in width, and 92mm in depth, making it compact for installation.
It is a 3-pole contactor, which is suitable for various motor starter applications.
This contactor uses screw clamp terminals for both load and auxiliary contacts, ensuring secure electrical connections.
It operates efficiently within a temperature range of -5°C to 60°C, suitable for diverse environments.
It includes one normally open (NO) and one normally closed (NC) auxiliary contact, with the NC contact being mirror certified for safety.
The contactor is certified to multiple standards including UL, CSA, IEC, CCC, EAC, and Marine, ensuring compliance with global safety requirements.
The power rating of this model is 2HP, making it suitable for controlling motors of that capacity.
It features a DIN rail mounting design, which allows for easy installation in control panels.
This contactor is designed for motor control and resistive load applications in industrial and commercial settings.
