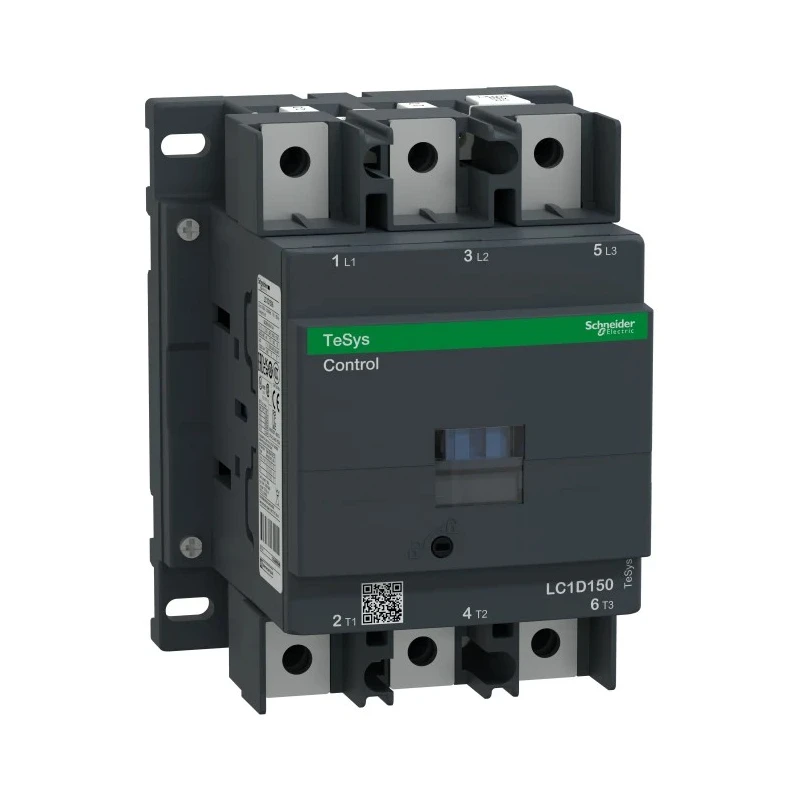

Schneider Electric LC1D Contactor, 110V DC Coil, 3-Pole, 150 A, 100 kW Power Rating, 3 NO Contacts, 1kV AC, DIN LC1D1506FD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D1506FD |
| Depth | 136mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 100kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 1kV ac |
| Coil Voltage | 110V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 150A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 150A |
| Control Circuit Voltage Uc | 110V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3P |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 3-pole configuration for robust electrical switching.
- Rated for 150 amps contact current ensuring high-load capacity.
- Power rating of 100 kW suitable for demanding industrial applications.
- Includes 3 normally open (NO) main contacts and 2 auxiliary contacts (1 NO, 1 NC).
- Compact DIN rail mount design for easy installation in electrical panels.
- Operating temperature range from -40°C to 60°C ensures device reliability in harsh conditions.
- Complies with CSA and UL standards for safety and performance.
- Terminal type is lug ring for secure electrical connections.
Product Description
Schneider Electric LC1D1506FD Contactor is engineered to deliver high reliability and performance in motor control and resistive load applications. Featuring a 110V DC coil and 3-pole configuration, this contactor is capable of handling contact currents up to 150 amps and power ratings of 100 kW. It supports robust and safe switching operations in industrial environments.
The contactor includes three normally open main contacts and two auxiliary contacts (one normally open and one normally closed) for flexible control and signaling functions. Mounted on a DIN rail, it offers ease of installation and maintenance within control panels.
Designed to operate within a temperature range of -40°C to 60°C, the LC1D1506FD ensures consistent performance even under demanding environmental conditions. Its lug ring terminal type provides reliable electrical connections necessary for long service life.
This contactor complies with CSA and UL standards, ensuring adherence to rigorous safety and performance benchmarks. It is especially suitable for applications involving motor control, resistive loads, and automated industrial processes.
The product is part of the Schneider Electric LC1D series, known for combining mechanical longevity with electrical reliability. Additional accessories such as auxiliary contact blocks, dust-tight covers, and voltage suppressors are available to enhance its functionality.
Equipped with a 3-pole configuration for robust electrical switching. Rated for 150 amps contact current ensuring high-load capacity. Power rating of 100 kW suitable for demanding industrial applications. Includes 3 normally open (NO) main contacts and 2 auxiliary contacts (1 NO, 1 NC).
Compact DIN rail mount design for easy installation in electrical panels. Operating temperature range from -40°C to 60°C ensures device reliability in harsh conditions. Complies with CSA and UL standards for safety and performance.
Terminal type is lug ring for secure electrical connections. Contact voltage rated at 1kV AC supporting heavy-duty circuits. Ideal for use in automation, motor starting, and resistive load control systems. Explore more Schneider Electric Contactors and automation solutions in EnvMart's comprehensive catalog designed for industrial and commercial electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D1506FD contactor has a power rating of 100 kW, making it suitable for demanding industrial applications.
This model can handle a maximum contact current of 150 amps, ensuring it can manage high-load capacities effectively.
The coil voltage for this contactor is 110V DC, which is necessary for its operation.
The operating temperature range for this contactor is from -40°C to 60°C, ensuring reliable performance in various environmental conditions.
The LC1D1506FD contactor features a 3-pole configuration, which is designed for robust electrical switching.
This contactor includes two auxiliary contacts, configured as one normally open (NO) and one normally closed (NC).
The dimensions of this model are 158 mm in length, 120 mm in width, and 136 mm in depth.
It is designed for DIN rail mounting, which facilitates easy installation in electrical panels.
This contactor complies with CSA and UL standards, ensuring adherence to safety and performance benchmarks.
The terminal type for the LC1D1506FD is lug ring, providing secure electrical connections.
This contactor is suitable for motor control and resistive load applications, making it versatile for various industrial uses.
The contact voltage rating for the LC1D1506FD is 1 kV AC, supporting heavy-duty circuits.
