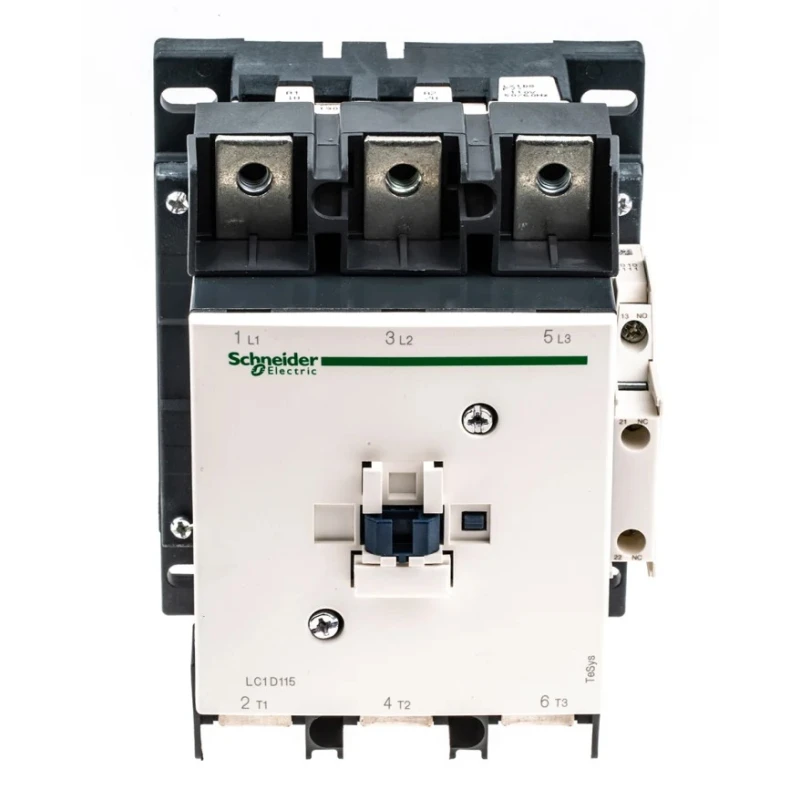

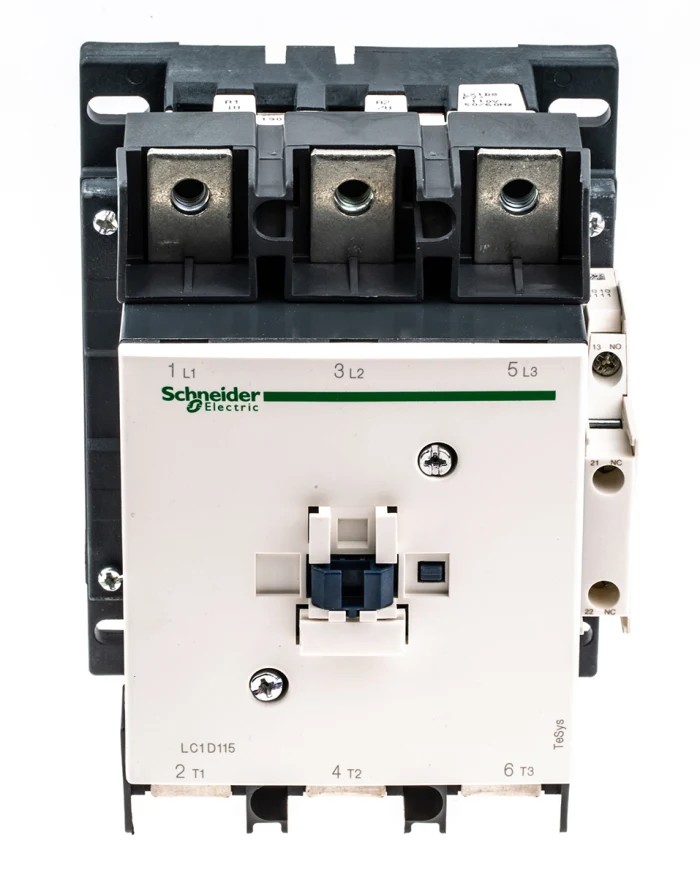

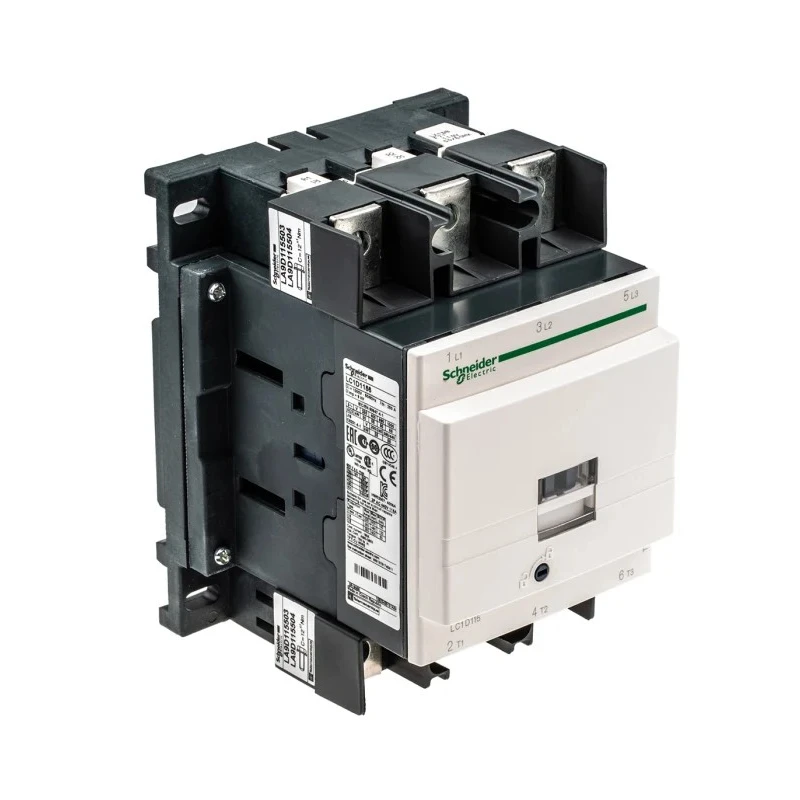

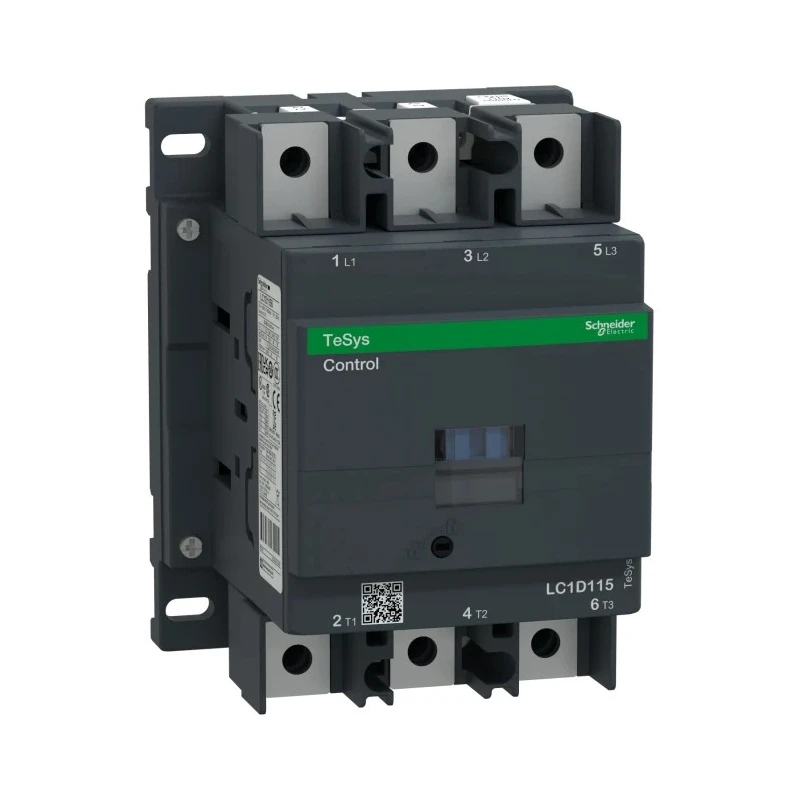

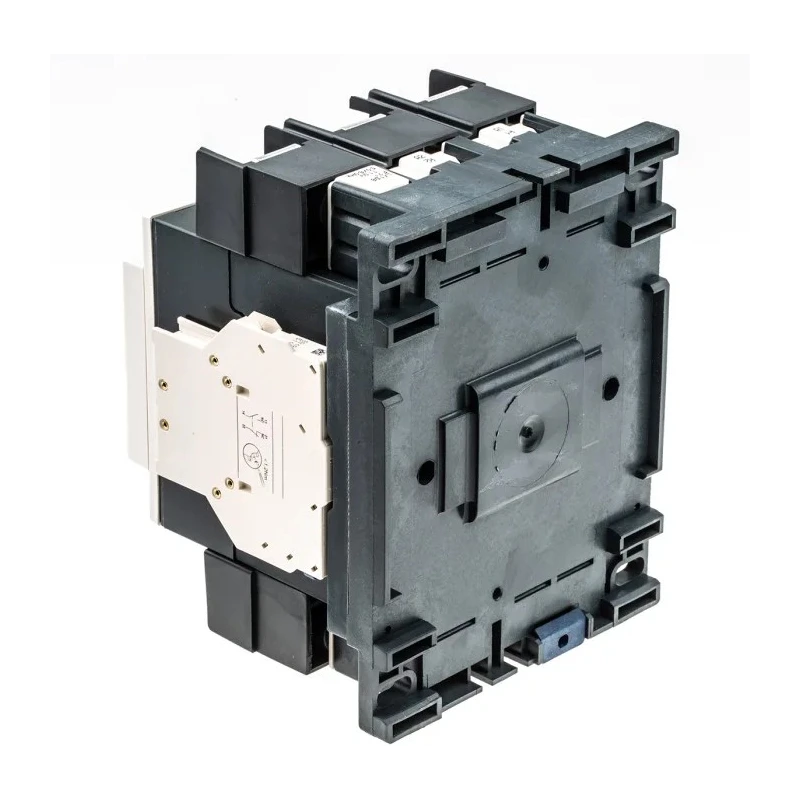

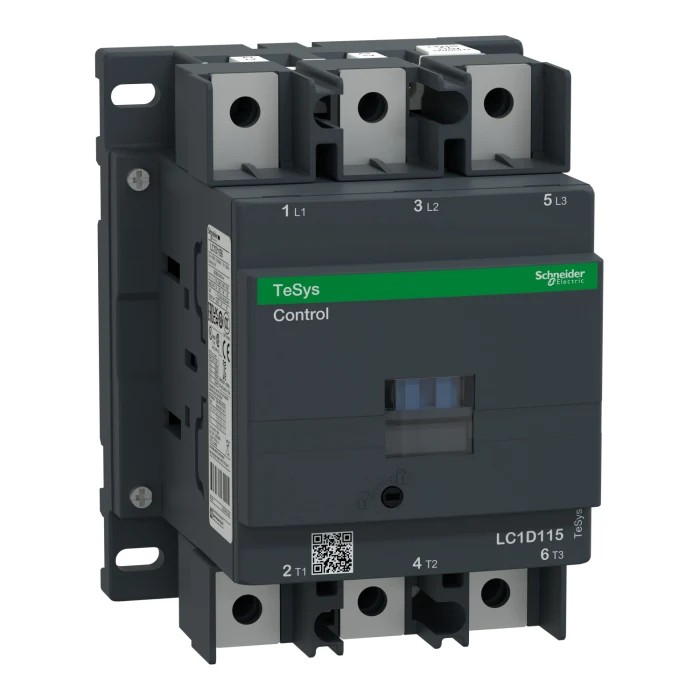

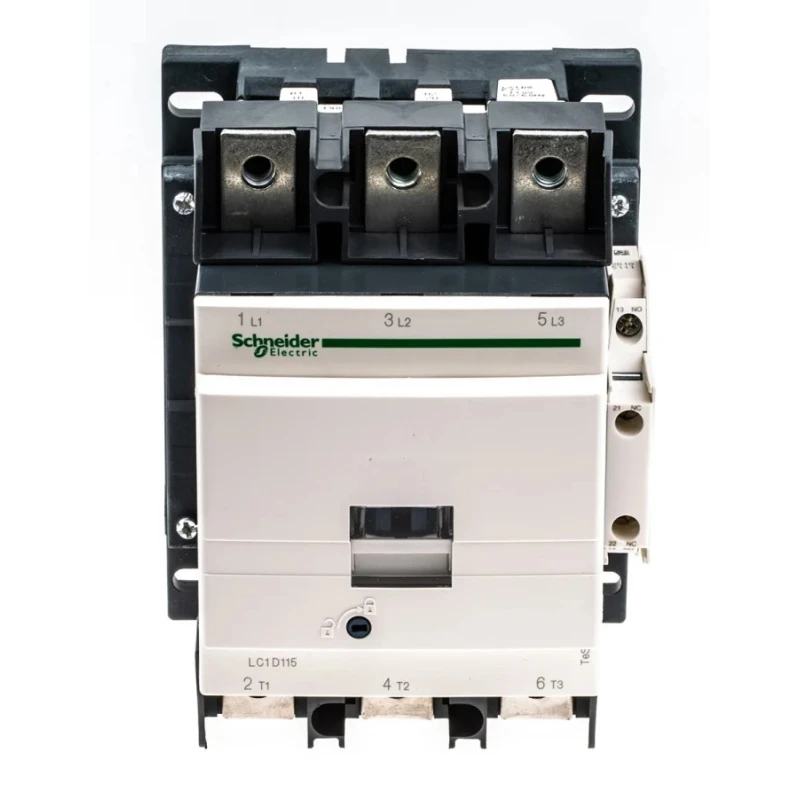

Schneider Electric TeSys D LC1D Contactor 110V AC Coil, 3-Pole, 115A, 30kW, 3NO Auxiliary Contacts, 1kV AC LC1D1156F7

Schneider Electric LC1D1156F7 Contactor from the TeSys D Series features a 110V AC coil with a 3-pole configuration, rated for 115A contact current and 30kW power. It is designed for motor control and resistive load applications, providing robust switching capability with 3 normally open (NO) contacts and an auxiliary contact configuration of 1 NO and 1 NC. The contactor supports control circuits with 110V AC coil voltage and operational current of 115A.

This product is designed to perform reliably in demanding industrial environments, with an extended mechanical endurance of approximately 8 million cycles and an operating temperature range from -40°C to 60°C. It complies with IEC 61095 standards and features an IP20 protection rating for finger-safe terminals, increasing operator safety.

The compact size of this contactor, with dimensions measuring 158mm length, 120mm width, and 136mm depth, allows easy integration on a DIN rail or panel mounting. The lug ring terminal type facilitates secure wiring connections.

Applications for the LC1D1156F7 contactor include motor starters in the HVAC industry, transformers, automated industrial machinery, medical devices, and agricultural equipment where reliable switching under resistive and motor loads is essential.

With built-in auxiliary contacts and a bidirectional peak limiting diode suppressor, this Schneider Electric contactor enhances coil protection and switching efficiency. The unit is made in the Czech Republic and embodies high standards of safety, performance, and durability common to Schneider Electric products.

Equipped with 3 normally open (NO) contacts for efficient switching. Integrates 2 auxiliary contacts with 1 NO and 1 NC configuration. Durable design offers approximately 8 million mechanical operating cycles. Compact dimensions of 158mm length, 120mm width, and 136mm depth suitable for DIN rail mounting.

Wide operating temperature range of -40°C to 60°C for diverse environments. Complies with IEC 61095 standards for reliable and safe performance. Features IP20 finger-safe terminals enhancing electrical safety. Designed for use in motor starters, transformers, automated industrial applications, medical equipment, and agricultural machinery.
