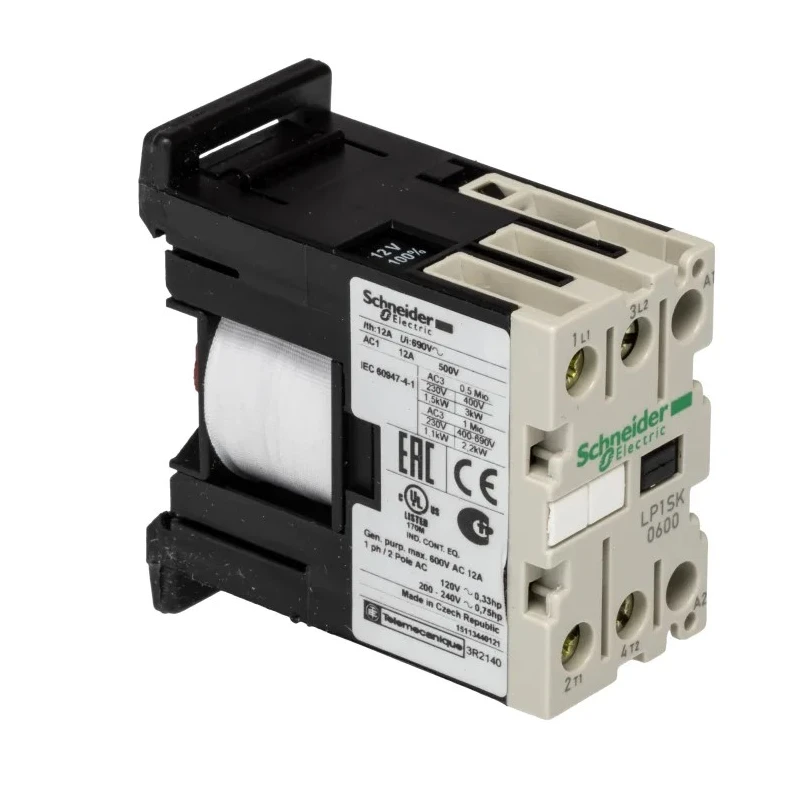

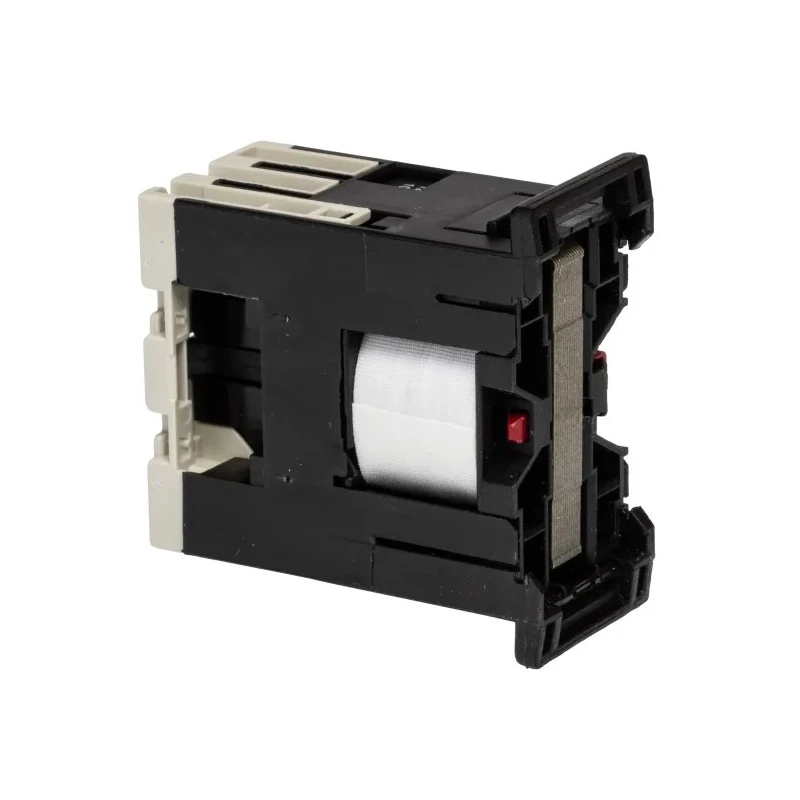

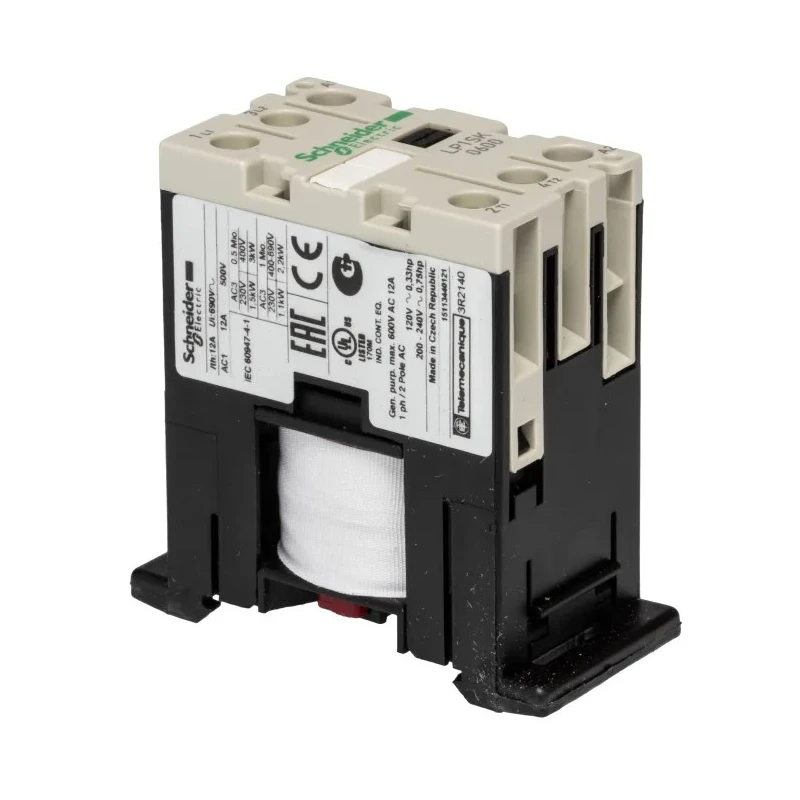

Schneider Electric LP1S Contactor with 12V DC Coil, 2-Pole, 12A Contact Current, 690V AC Contact Voltage
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 56mm |
| Model | LP1S |
| Depth | 55.5mm |
| Width | 27mm |
| Mount Type | DIN Rail |
| Series | LP1S |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number of Poles | 2 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac |
| Coil Voltage | 12V dc |
| Normal State Configuration | 2 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 12V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 2 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
Key Features
- The contactor has an IP2X-rated DIN rail mount housing ensuring secure and safe installation.
- Equipped with 2 Normally Open (NO) main contacts and 1 Normally Open auxiliary contact.
- Designed for harsh environmental conditions with an operating temperature range of -20°C to +50°C.
- Compact dimensions (56mm length, 27mm width, 55.5mm depth) minimize panel footprint.
- The coil includes built-in rectifier for DC operation, facilitating quick setup and reliability.
- Meets UL and CSA standards, guaranteeing safety and performance.
- The contactor is insulated and includes TC protective coating to resist corrosion in damp environments.
- Suitable for HVAC systems, water management, lifting equipment, and automated assembly line controls.
Product Description
Schneider Electric LP1SK0600JD Contactor is engineered for reliable motor control and resistive load switching, featuring a 12V DC coil and 2-pole configuration rated for 12A contact current at 690V AC contact voltage. Its compact design with DIN rail mounting allows easy panel integration while providing robust electrical switching with minimal risk of contact wear or electric arcs.
Built to operate efficiently in demanding industrial and commercial environments, this contactor performs reliably between -20°C and +50°C. The unit's IP2X-rated housing offers protection against finger contact and tools larger than 12.5mm, enhancing user safety during installation and operation. Screw terminals with IP20 finger-safe protection facilitate secure wiring, complying with both North American and International terminal markings.
The contactor includes 2 Normally Open main contacts and 1 Normally Open auxiliary contact, enabling added switching capability for control and signaling. Its coil has an integrated rectifier to support direct current operations, simplifying system design and maintenance.
Offered by Schneider Electric under the TeSys K Mini Series, the LP1SK0600JD meets UL and CSA standards, ensuring both safety and compliance for industrial automation. Its TC protective coating prevents corrosion, making it well suited for damp conditions. The insulated design further protects plant personnel from electric shocks, contributing to improved safety in various applications.
Ideal for HVAC equipment, water management systems, lifting and hoisting machinery, and automated assembly lines, this contactor supports a maximum switching rate of 1200 operations per hour, meeting demands of high-cycle use scenarios.
The contactor's compact dimensions support efficient panel space utilization. Auxiliary contacts enhance switching options for flexible control configurations. DIN rail mount type ensures quick and secure installation. IP2X-rated housing for protection and safety.
Designed for end-of-life recyclability supporting sustainability goals. Choose Schneider Electric LP1SK0600JD Contactor for a dependable solution in controlling motors and resistive loads across diverse industrial processes on EnvMart.
Explore more products in our Contactors & Auxiliary Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric LP1SK0600JD Contactor has a contact current rating of 12A.
This contactor operates with a coil voltage of 12V DC.
It is rated for a maximum contact voltage of 690V AC.
The LP1SK0600JD has a 2-pole configuration.
The dimensions of this contactor are 56mm in length, 27mm in width, and 55.5mm in depth.
It operates efficiently within a temperature range of -20°C to +50°C.
This contactor includes 1 Normally Open (NO) auxiliary contact.
It is designed for DIN rail mounting, allowing for easy installation.
The LP1SK0600JD meets UL and CSA standards, ensuring safety and performance compliance.
It features screw terminals with IP20 finger-safe protection and complies with both North American and International terminal markings.
This model is suitable for applications in HVAC systems, water management, lifting equipment, and automated assembly lines.
Yes, it includes a TC protective coating to resist corrosion in damp environments.
