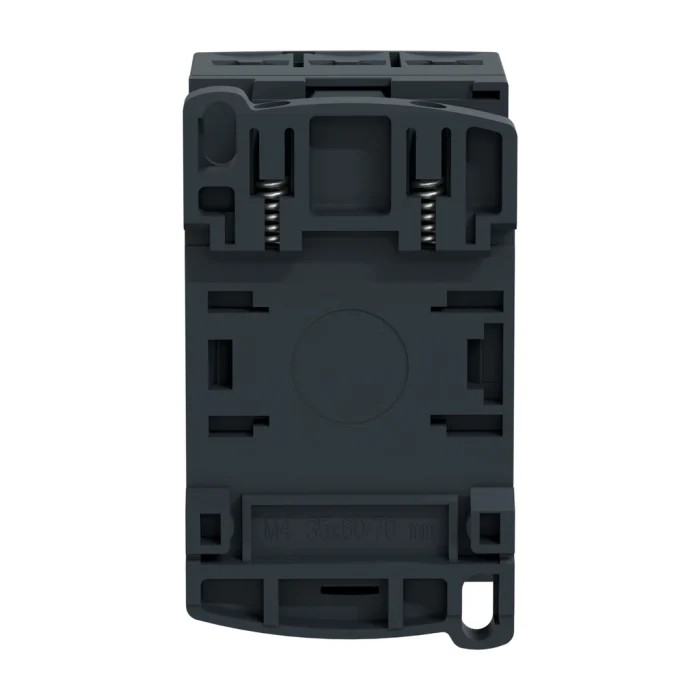

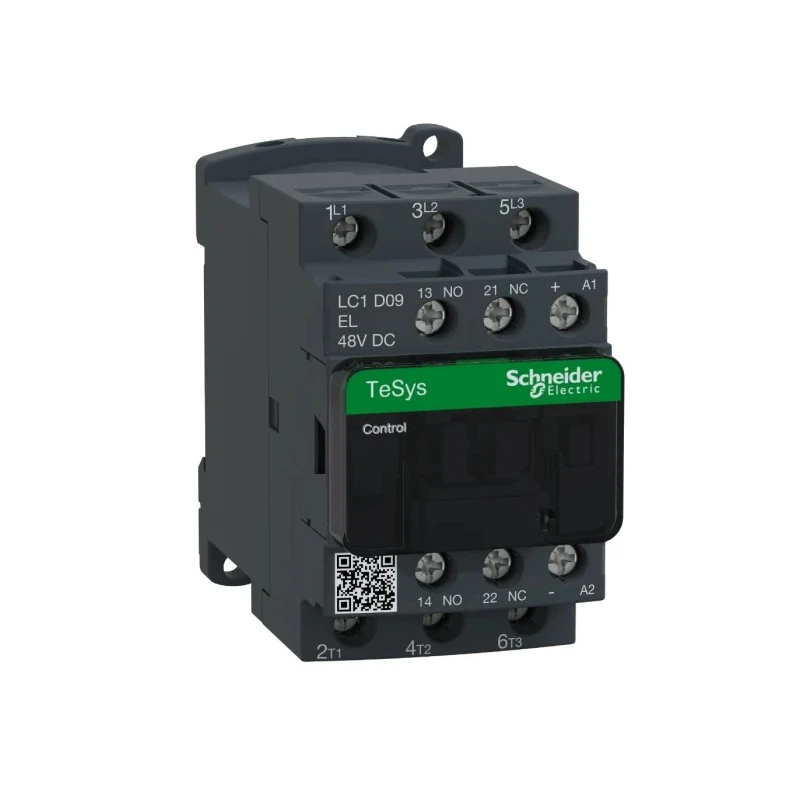

Schneider Electric TeSys Deca Contactor, 48V DC Coil, 3-Pole, 9A, 2.2kW, 3 NO, 690V AC/DC LC1D09EL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D09EL |
| Depth | 95mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC 61095 |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 48V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 48V dc |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Low consumption 48V DC coil with transient suppressor module for enhanced coil life.
- Compact design with 45mm width and DIN-rail mounting for easy installation.
- Supports operation up to 3600 cycles/hour at temperatures up to 60°C.
- Equipped with 3 NO main contacts and 1 NO + 1 NC auxiliary contacts for versatile control.
- Rated for 2.2kW power at 48V DC and 690V AC/DC contact voltage.
- Screw clamp terminals provide reliable and secure electrical connections.
- Built to meet international standards including IEC 61095 and offers Green Premium compliance.
- Designed for motor control applications such as HVAC, lighting, irrigation, and lifting devices.
Product Description
Schneider Electric LC1D09EL is a high-quality TeSys Deca contactor designed for reliable motor control and resistive load applications. It features a low power consumption 48V DC coil equipped with a transient suppressor module to enhance coil durability and performance. The contactor includes 3 normally open (NO) poles rated for 9A, supporting power loads up to 2.2kW at 48V DC with a contact voltage capacity of 690V AC/DC.
The compact 45mm width design allows easy installation on DIN rails or by screw fixing, making it suitable for a broad range of industrial and commercial automation systems. It operates efficiently in temperature ranges from -40°C up to 60°C and can handle operational cycles of up to 3600 per hour, ensuring dependable switching performance under demanding conditions.
The contactor also includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts to facilitate control circuit flexibility. The screw clamp terminal connections offer secure and long-lasting electrical contacts. The product complies with multiple international standards including IEC 61095 and meets environmental standards through Green Premium RoHS/REACh certification.
Applications for the LC1D09EL contactor encompass HVAC systems, irrigation infrastructure, lighting setups, and lifting or hoisting equipment, positioning it as a versatile component in automation and control gear. It is engineered to provide extended service life and high reliability in industrial environments.
Low power consumption 48V DC coil with transient suppression. Compact and space-saving 45mm width design. Durable operating temperature range from -40°C to 60°C. High operational rate up to 3600 cycles per hour. 3 NO main contacts and 2 auxiliary contacts (1 NO + 1 NC).
Rated for 2.2kW power and 9A current. Screw clamp terminals for secure connection. Complies with IEC 61095 and Green Premium standards. Suitable for motor control and resistive load applications. Explore more Schneider Electric Contactors and automation products on EnvMart for your industrial, commercial, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 2.2kW at a coil voltage of 48V DC and a contact voltage capacity of 690V AC/DC.
The maximum operating temperature for the TeSys Deca Contactor is 60°C.
It features 3 poles, all of which are normally open (NO).
The operational current rating is 9A.
This unit supports DIN rail mounting for easy installation.
It operates efficiently within a temperature range from -40°C to 60°C.
It is designed for motor control and resistive load applications.
It includes 2 auxiliary contacts: 1 normally open (NO) and 1 normally closed (NC).
The width of this model is 45mm.
It features screw clamp terminals for secure electrical connections.
The contactor complies with IEC 61095 and is certified under Green Premium standards.
It can operate at a rate of up to 3600 cycles per hour.
