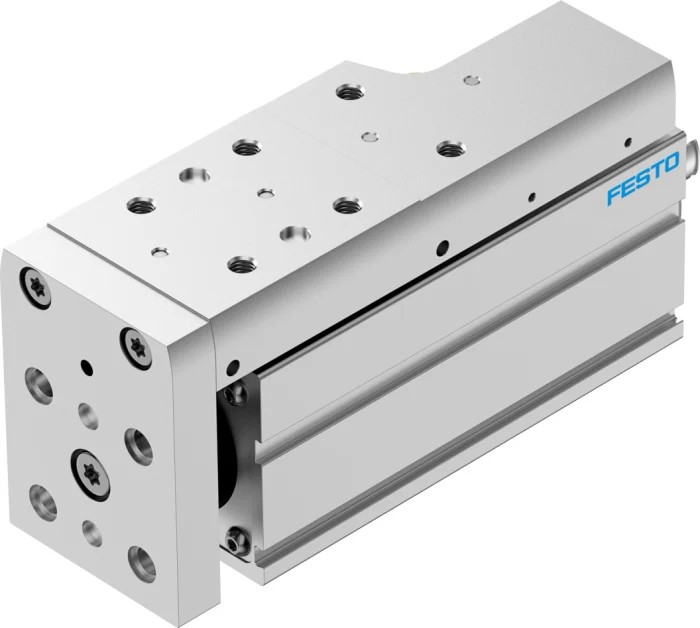

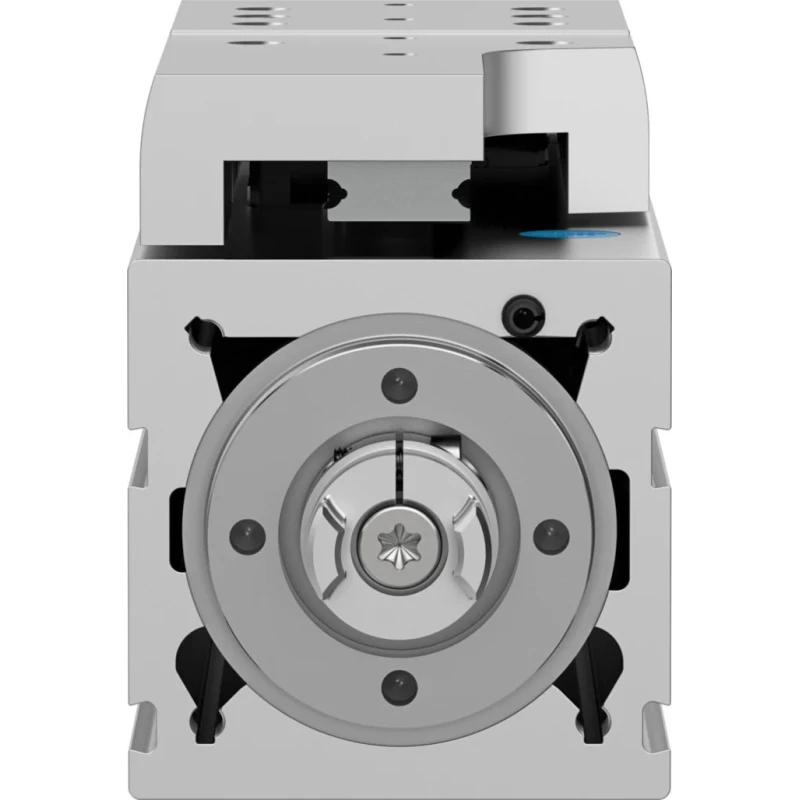

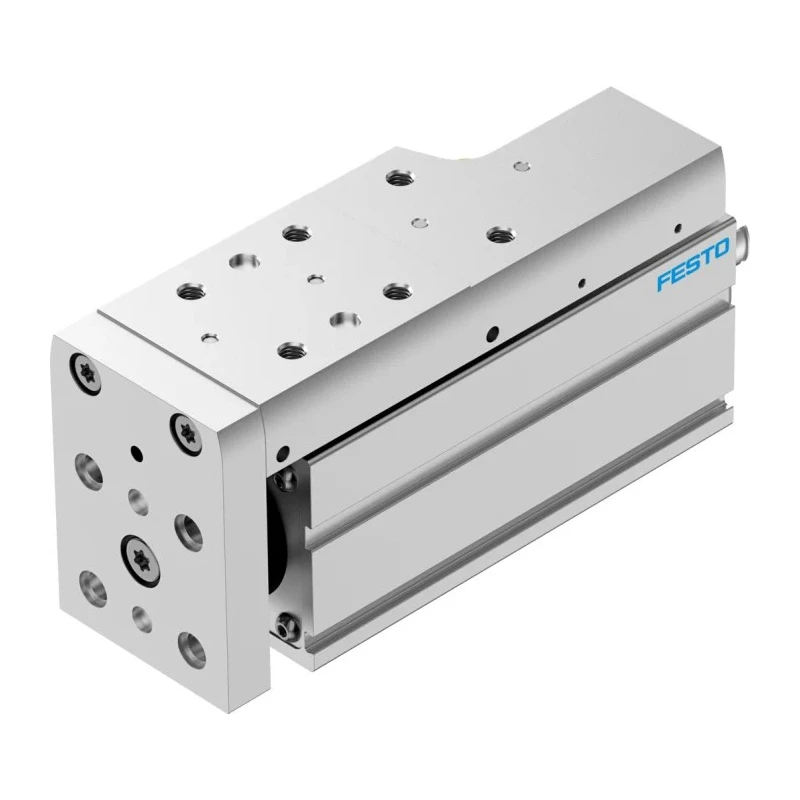

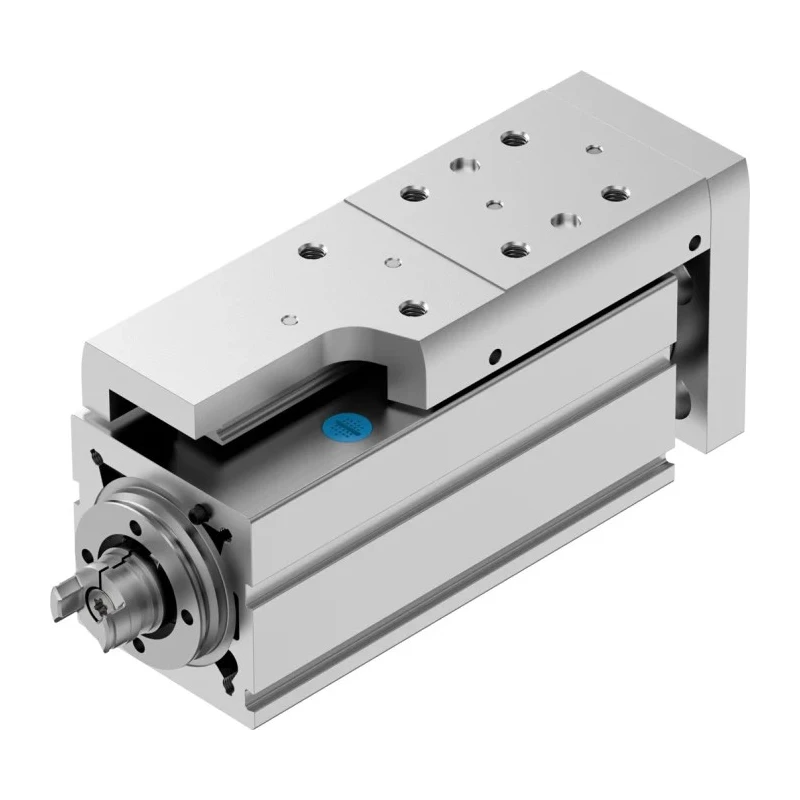

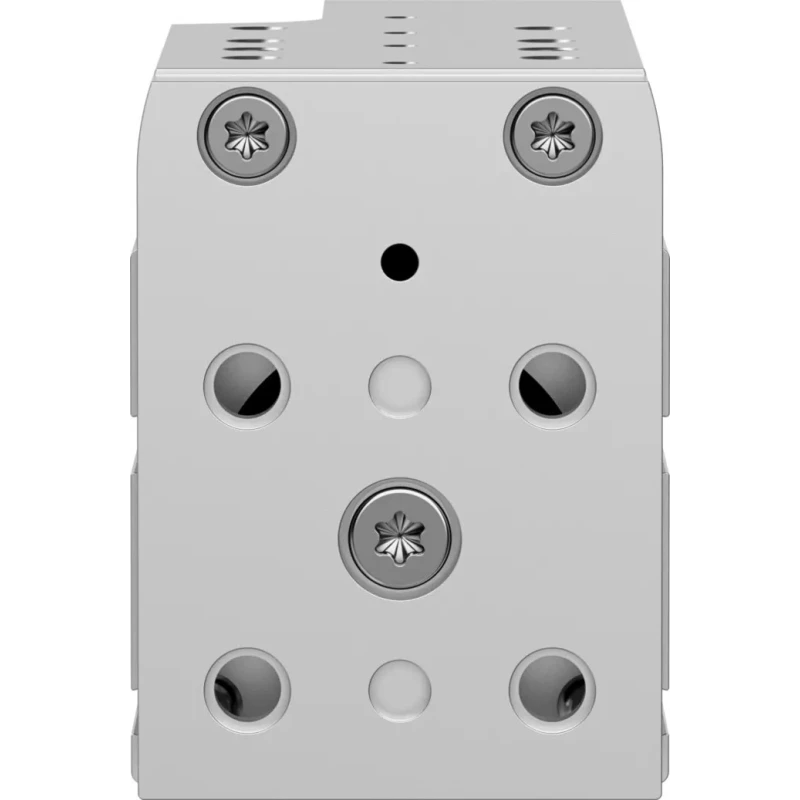

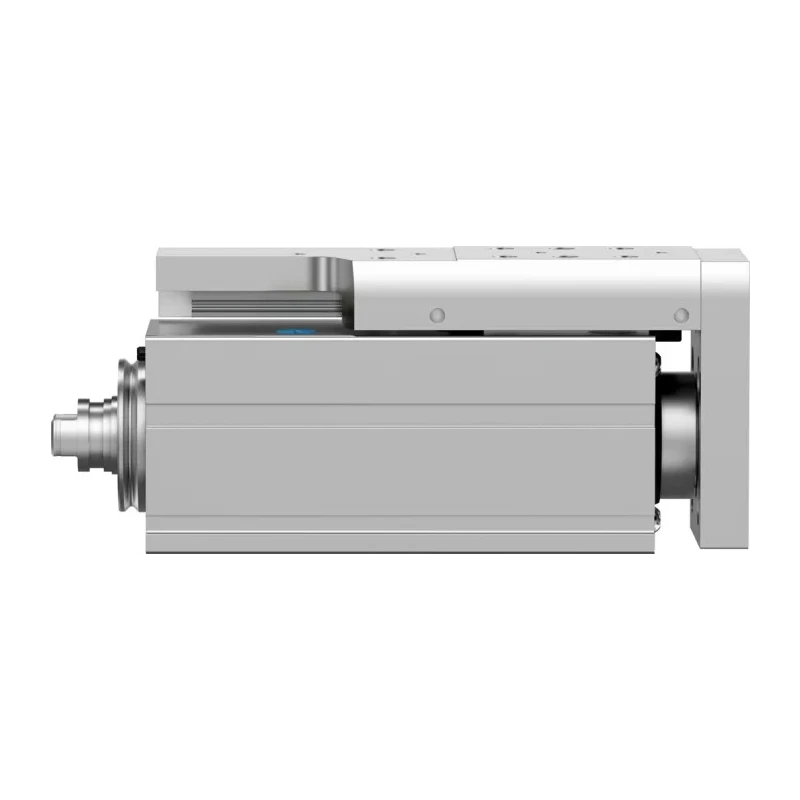

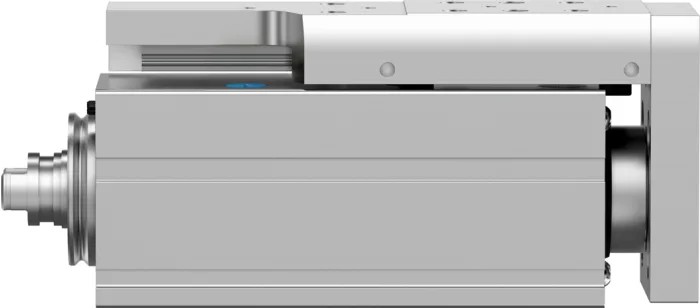

Festo Electrical Linear Actuator 50 mm Stroke Length 7413N Maximum Load 600mm/s Speed EGSC-BS-KF-45-50-10P

Festo EGSC-BS-KF-45-50-10P Electrical Linear Actuator features a 50 mm stroke length with a maximum load capacity of 7413N and a maximum speed of 600mm/s. Engineered with stepper and servo motor technologies, it delivers precise linear motion ideally suited for automation, electrical, and mechanical applications.

This actuator incorporates a ball screw spindle type that ensures efficient power transmission and smooth operation. Its compact design with an overall closed length of 45 mm makes it suitable for integration in space-limited environments, while the IP40 rating protects against solid foreign objects.

The actuator operates reliably within a temperature range of 0°C to 50°C, and its construction using anodised aluminium and high-alloy stainless steel components ensures durability and long service life. The 100% duty cycle rating supports continuous operation, making it a robust solution for industrial use.

Typical applications include electronic component positioning, laboratory automation systems, manufacturing conveying lines, and robotics requiring precise linear movement control. Mounting flexibility is provided through options such as female thread or cylindrical pin installations to accommodate diverse application requirements.

Maximum speed of 600mm/s ensures quick actuation without load. Compact design allows easy integration in confined spaces. Ball screw spindle type provides efficient power transmission. Operates smoothly within 0°C to 50°C ambient temperature range.

Constructed with anodised aluminium and high-alloy stainless steel for durability. 100% duty cycle suitable for continuous operation. IP40 rating offers protection against solid objects larger than 1 mm. Compatible with stepper or servo motor control for flexible operation.

High repetition accuracy guarantees consistent positioning performance. Versatile mounting options include female thread and cylindrical pin installation.

This actuator is a reliable component for industrial, laboratory, manufacturing, and automation system applications requiring precise, repeatable linear actuation. Explore the full range of Festo actuators on EnvMart for comprehensive automation solutions.
