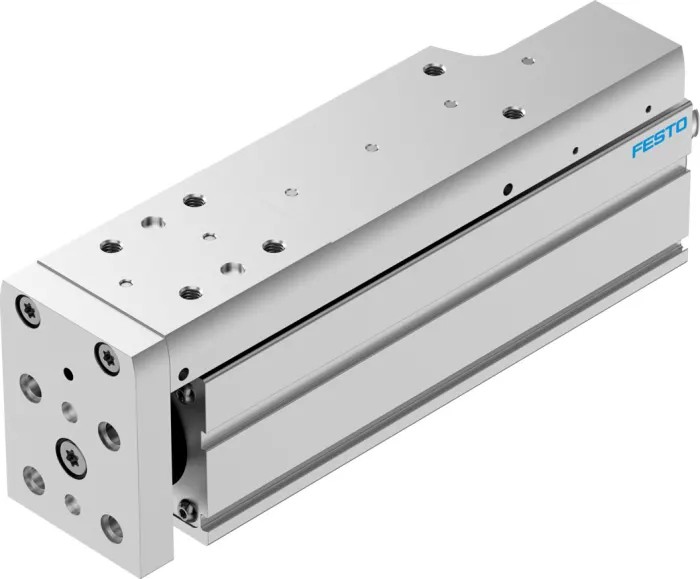

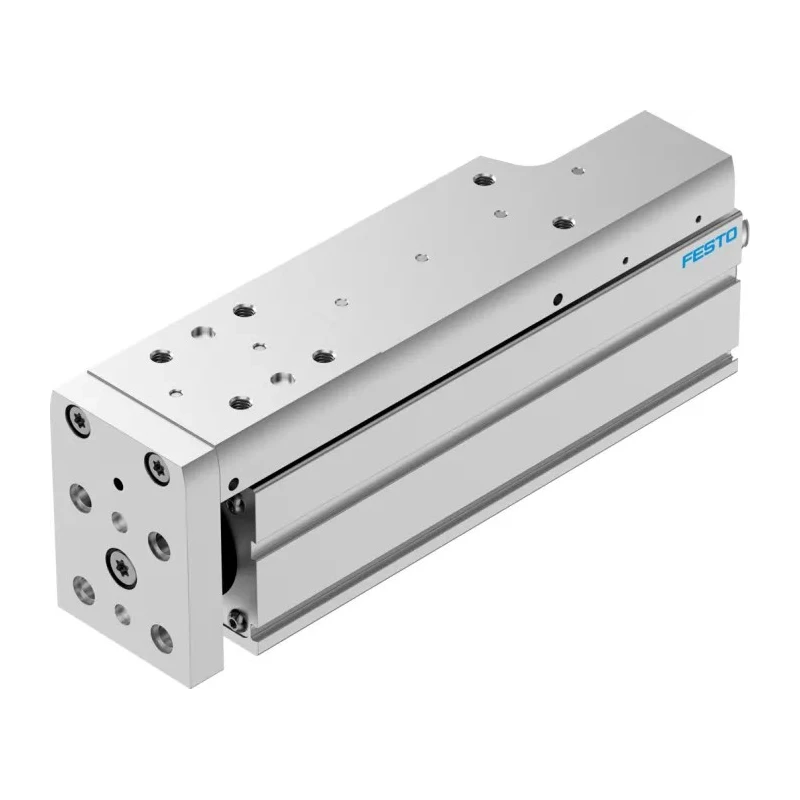

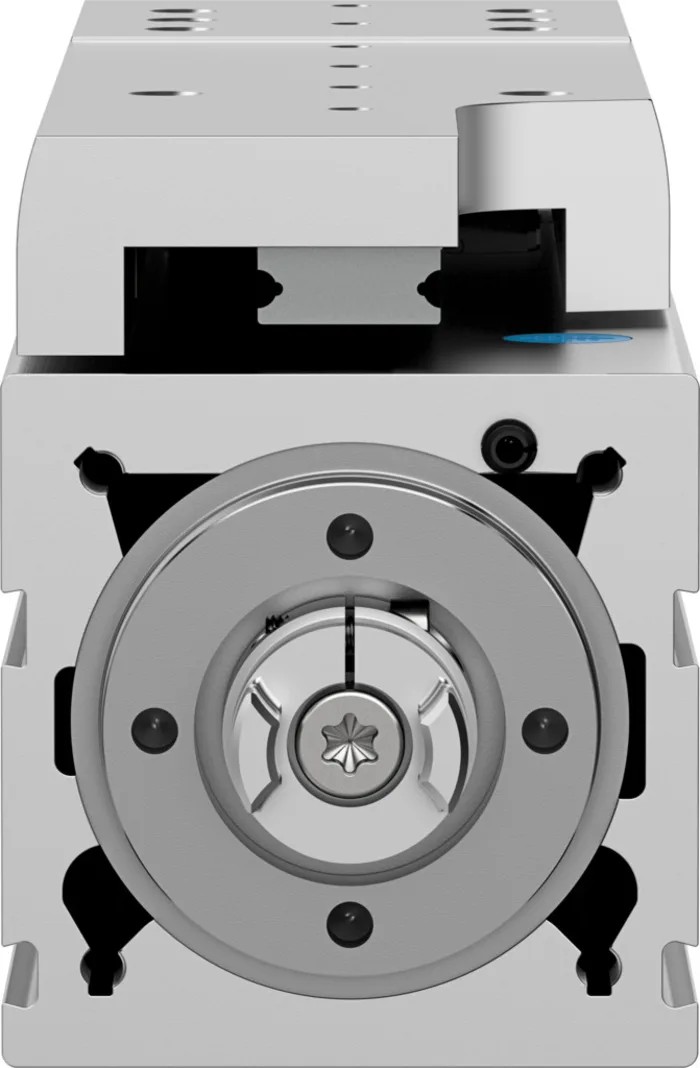

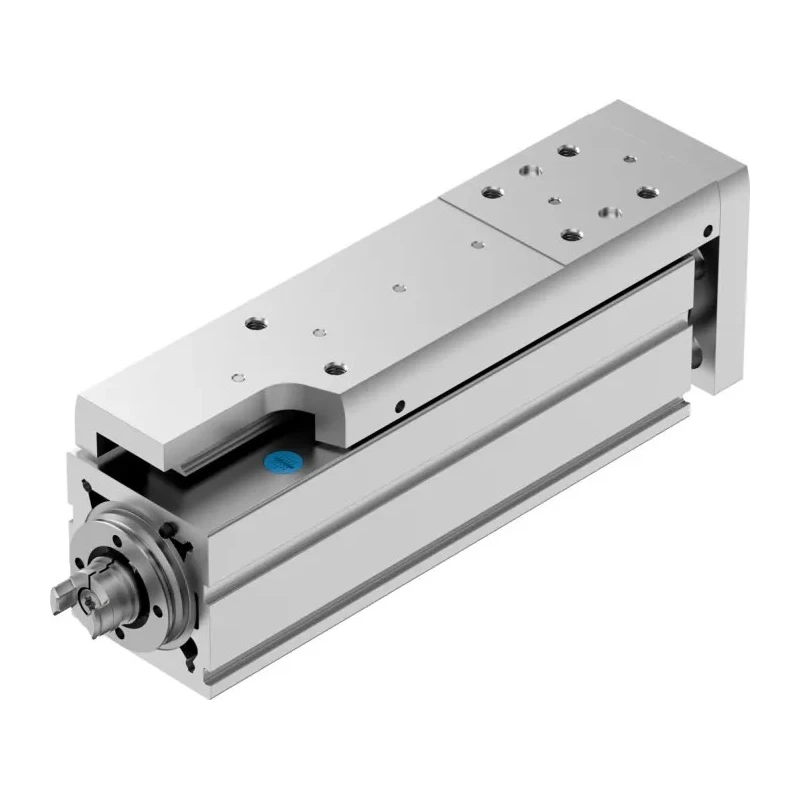

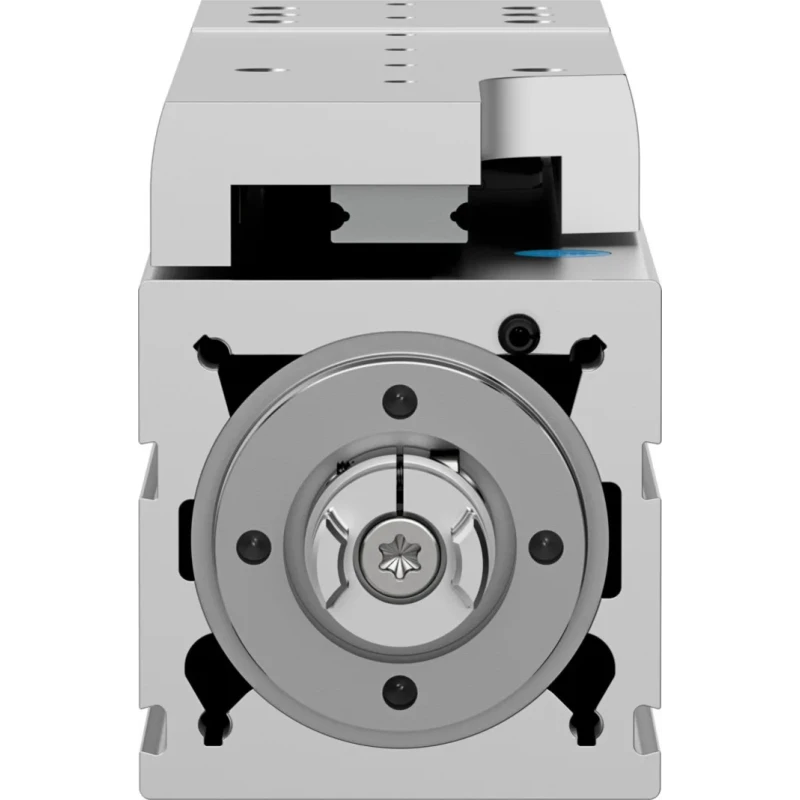

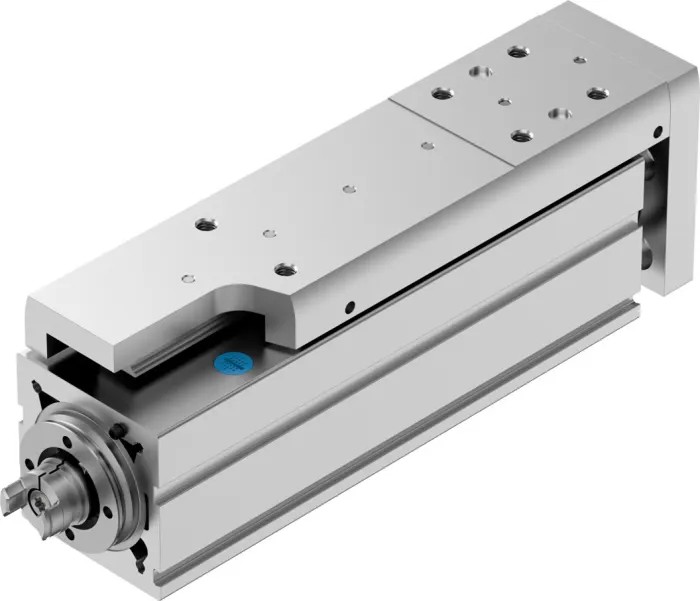

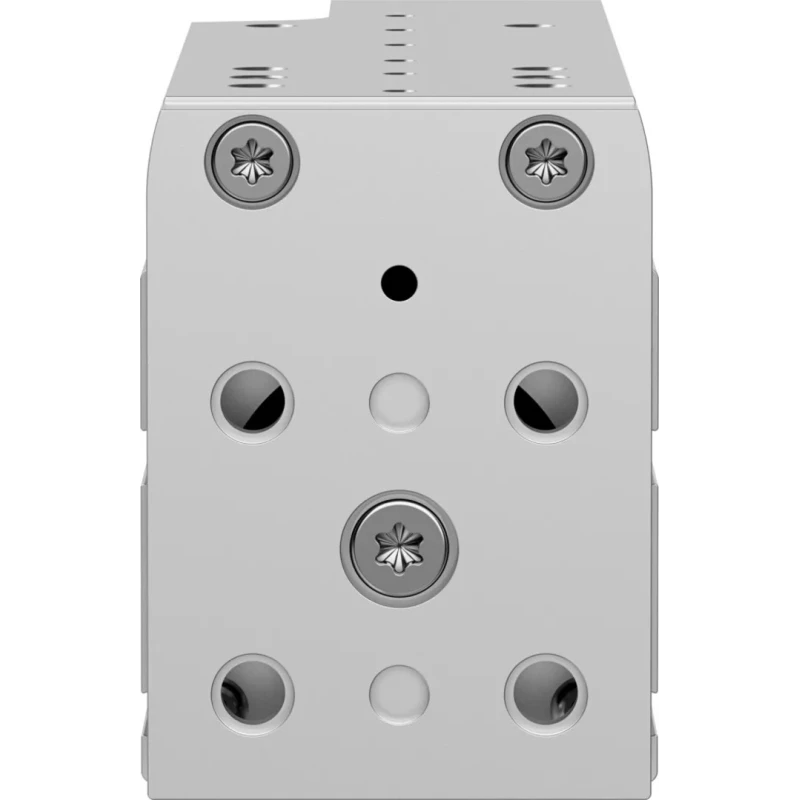

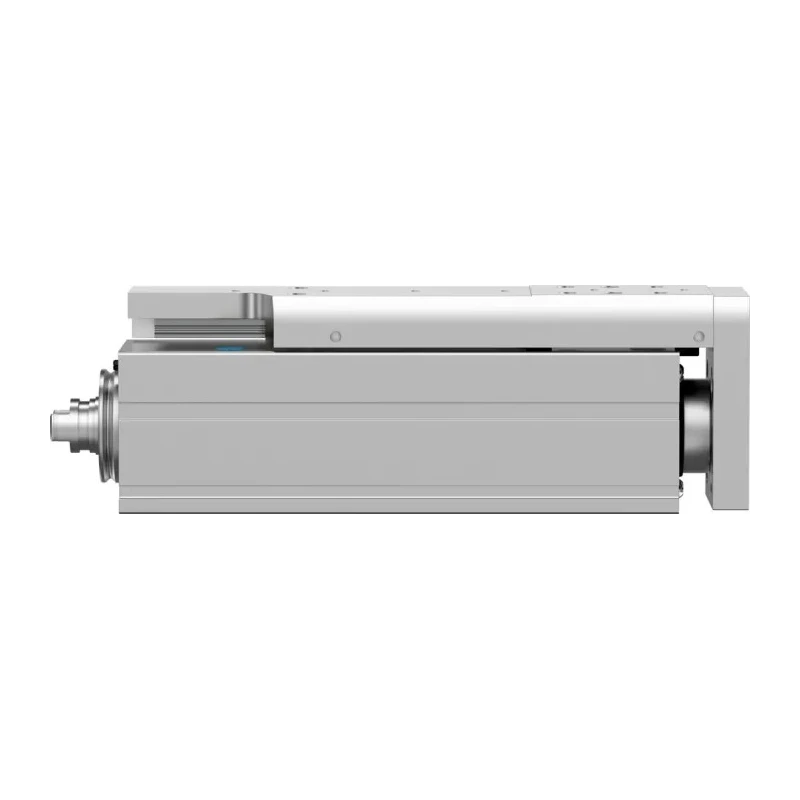

Festo Electrical Linear Actuator 125 mm Stroke Length 12kg Maximum Load 1314N Force EGSC-BS-KF-45-125-10P

Festo EGSC-BS-KF-45-125-10P is a high-performance electrical linear actuator designed for industrial automation requiring precision and efficiency. Featuring a 125 mm maximum stroke length and 12kg maximum load capacity, this actuator is ideal for electrical and mechanical automation tasks that demand reliable and smooth linear motion.

This actuator operates at a maximum speed of 600 mm/s using advanced servo and stepper motor technologies supported by a ball screw spindle for excellent positional accuracy and durability. The device maintains an exceptional repetition accuracy of ±0.015 mm, ensuring consistent and reliable operation in demanding environments.

Rated IP40 for environmental protection, the actuator withstands conditions within 0°C to 50°C making it versatile for various industrial and laboratory settings. Its compact closed length of 45 mm enhances its suitability for installations with space constraints.

Manufactured with premium materials including rolled steel, anodised wrought aluminum alloy, and high-alloy stainless steel, it provides enhanced corrosion resistance and longevity. This actuator supports multiple mounting options such as female thread, centring sleeve, and cylindrical pin mounts, providing installation flexibility.

Designed for demanding automation applications, it is well-suited for robotics, assembly line automation, battery production processes, and testing equipment requiring reliable and precise linear movement. The 100% duty cycle rating permits continuous operation without interruption, making it ideal for high-demand processes.

Equipped with servo and stepper motor technology for precise control. Ball screw spindle ensures high efficiency and accuracy. Maximum lifting force of 1314N for robust performance. IP40 rating enables operation in standard industrial environments.

Exceptional positional repeatability of ±0.015 mm. Supports multiple mounting configurations for flexibility. Operating temperature range from 0°C to 50°C. Constructed for durability with corrosion-resistant materials.

This Festo Electrical Linear Actuator represents an advanced solution for industrial automation applications requiring compact size, precision, and high performance. Explore EnvMart's broad selection of electric linear actuators for complementary solutions in your automation projects.
