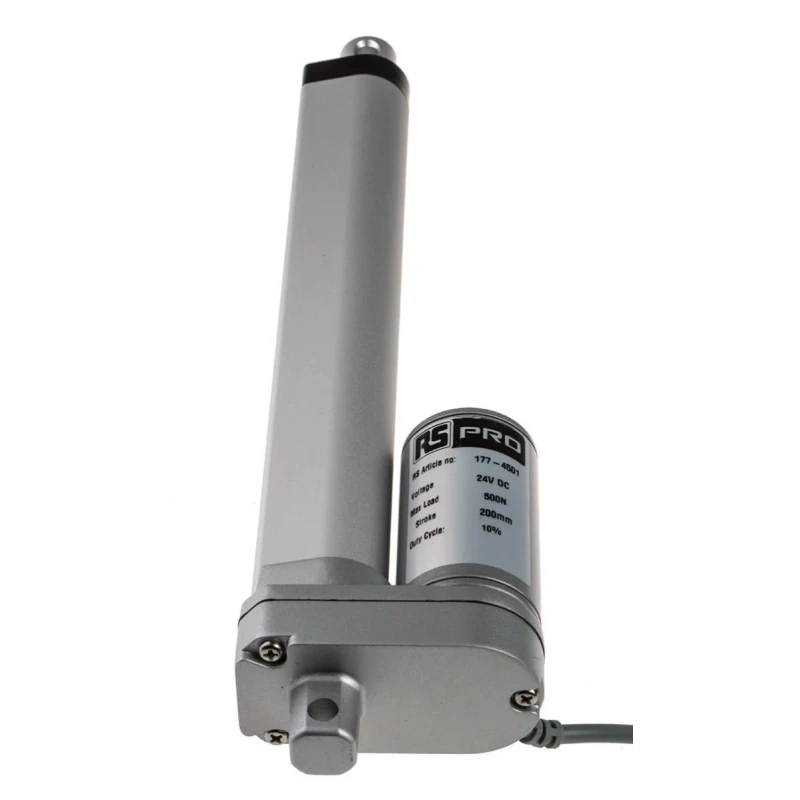

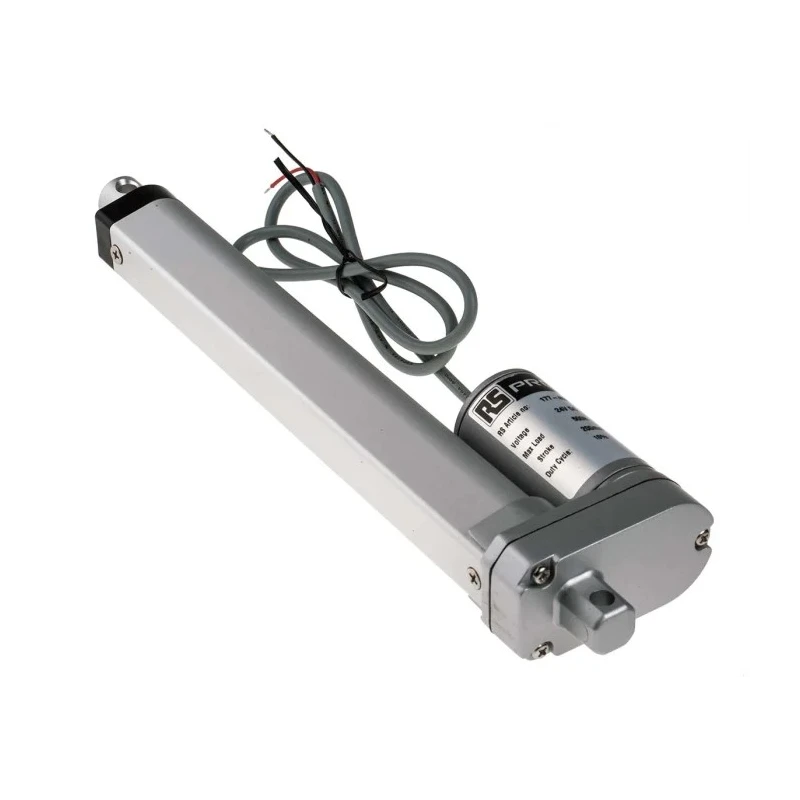

RS PRO Electrical Linear Actuator 200 mm Stroke Length 500N Max Load 24V DC 14.6 mm/s Speed 177-4501

RS PRO 177-4501 Electrical Linear Actuator is a high-quality device engineered for precise linear movement with a 200 mm stroke length, a maximum load capacity of 500N, and powered by a 24V DC motor. This actuator is ideal for applications requiring reliable push and pull forces such as automation systems, machine tools, and other industrial machinery where compactness and efficiency are essential.

The actuator’s design features a pitch 6 mm double-thread spindle and quiet operation to minimize noise in sensitive environments. It incorporates preset limit switches that automatically prevent the motor from burning out by stopping the actuator at the stroke limits, ensuring long service life and low maintenance.

Its IP54 rating makes the linear actuator resistant to dust ingress and water splashes, making it suitable for demanding environments. The device operates efficiently with a duty cycle of 25%, designed to handle intermittent use without degradation.

The compact overall closed length of 327 mm and aluminium grey finish provide easy installation and durability. Its operating temperature range from -25°C to 65°C allows use in various environmental conditions.

Applications include automation of windows or adjustable car drivers, industrial machinery components, solar tracking systems, and other equipment requiring a smooth and controlled linear motion. This product meets CE standards EN55014-1:2017+A11:2020 and EN55014-2:2015, demonstrating compliance with regulatory requirements.

Operates with a 24V DC powered DC motor for efficient energy use. Provides maximum push and pull force of 500N, suitable for medium load tasks. Offers a stroke length of 200 mm ideal for limited installation spaces. Features an IP54 rating for protection against dust and water splashes.

Equipped with preset limit switches to prevent motor damage at stroke limits. Compact overall closed length of 327 mm enables versatile mounting. Operates quietly with a speed of 14.6 mm/s without load. Designed for a 25% duty cycle ensuring reliability in intermittent use.

Constructed with aluminium grey color for durability and corrosion resistance. Suitable for automation, machine components, and industrial applications. Manufactured in Taiwan, ensuring quality standards compliance. Explore more high-performance linear actuators and automation components in the Industrial Tools & Equipment category at EnvMart.
