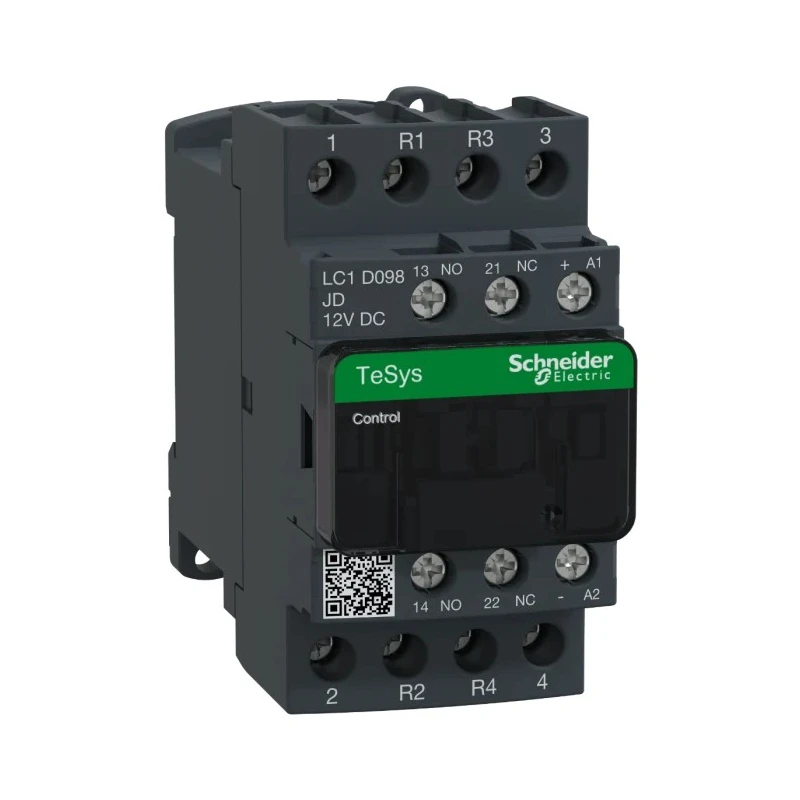

Schneider Electric LC1D Contactor, 12V DC Coil, 4-Pole, 20A, 2 NO/2 NC, 690V AC/DC LC1D098JD

Schneider Electric LC1D098JD Contactor is a highly reliable 4-pole contactor featuring a 12V DC coil, designed to operate at 690V AC/DC and handle 20A contact current. It is engineered specifically for resistive load applications and industrial automation systems. This contactor combines a long mechanical and electrical life, making it suitable for motor control and distribution systems.

The compact design includes DIN Rail mounting and IP20 finger-safe screw terminals with both North American and international terminal markings for ease of installation and safety. Its normal state configuration comprises 2 normally open (NO) and 2 normally closed (NC) contacts, along with 2 auxiliary contacts (1 NO and 1 NC) to provide auxiliary control capabilities.

Operating efficiently in temperatures ranging from -5°C to 50°C, this contactor complies with the IEC 61095 standard, ensuring high-quality and reliability in critical applications. The device uses linear translation movement offering double breaking poles for dependable switching performance.

This contactor is an ideal component in industrial automation systems, including motor starters, pumps, compressors, conveyors, lifts, escalators, mixers, and air conditioning units. The built-in bidirectional peak limiting diode suppressor offers coil protection and reduces electrical noise.

Additional advantages include its flexible control circuit to suit diverse applications and the capability to be panel or DIN Rail mounted, providing installation versatility. Schneider Electric has designed this as part of the TeSys D range, emphasizing energy efficiency and sustainability efforts such as low permanent coil consumption and easy disassembly for recycling.

This contactor is designed for resistive load and motor control applications. It features high mechanical and electrical durability with international compliance. The device is mounted on DIN Rail with safe screw connections suitable for industrial environments.

Operating temperature ranges support versatile environmental conditions. The configuration includes auxiliary contacts to extend control functionality. Double breaking poles ensure reliable switching and longevity. It supports a wide array of industrial automation use cases including HVAC and manufacturing.

Part of Schneider Electric's sustainable and energy-efficient TeSys D range. Explore more Schneider Electric Contactors and automation solutions on EnvMart for efficient and reliable industrial equipment.
