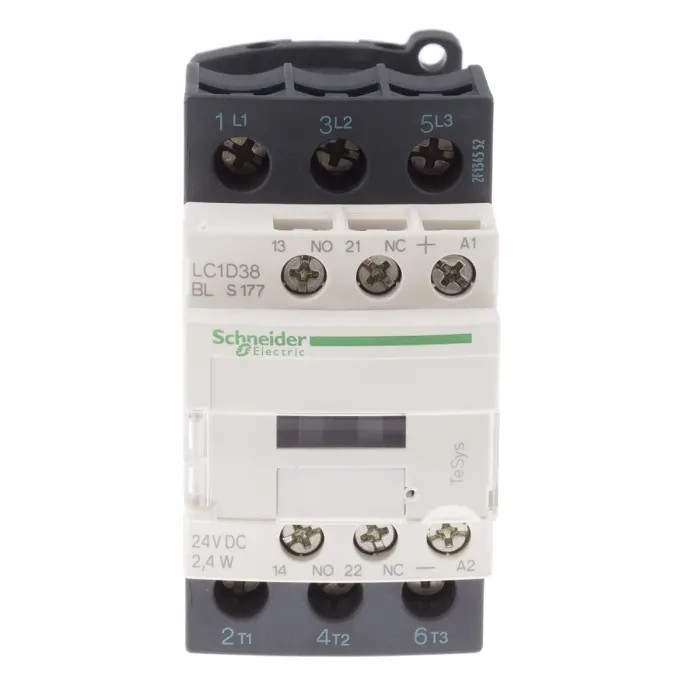

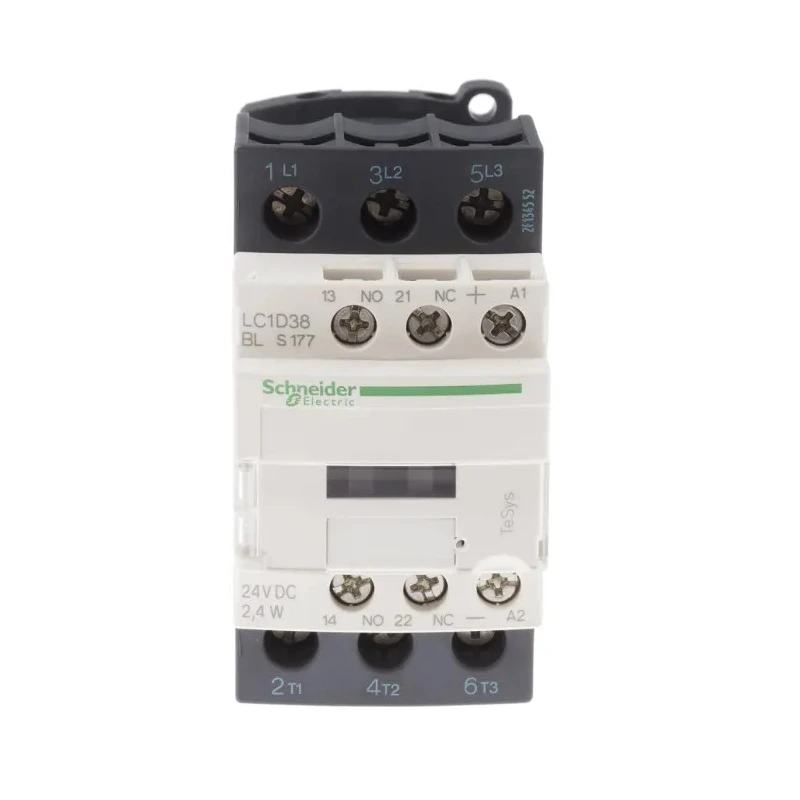

Schneider Electric LC1D Contactor, 24V DC Coil, 3-Pole, 38 A, 5.5 kW Power Rating, 3 NO Auxiliary Contacts, 690V AC/DC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D |
| Depth | 101mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | EN 60947-4-1 |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 38A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 38A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equivalent operational current rating of 38 amps ensures reliable switching performance.
- Power rating is 5.5 kW at 24V DC coil voltage for versatile industrial usage.
- Features 3 normally open (NO) contacts and 2 auxiliary contacts configured as 1 NO and 1 NC.
- Designed for DIN rail mounting with screw terminal type for secure electrical connections.
- Operating temperature range from -5°C to 60°C supports diverse industrial environments.
- Compact dimensions with width 45 mm, depth 101 mm, and length 85 mm for efficient panel space use.
- Conforms to EN 60947-4-1 standards ensuring international quality compliance.
- Better World product designed for disassembly enhancing sustainability and recyclability.
Product Description
Schneider Electric LC1D38BLS177 Contactor is a high-quality, reliable 3-pole contactor designed for motor control and resistive load applications. Operating at a coil voltage of 24V DC, it supports contact currents up to 38 amperes and power ratings of 5.5 kW, making it suitable for various industrial automation requirements.
The contactor includes 3 normally open main contacts and an auxiliary contact configuration consisting of 1 normally open and 1 normally closed contact. It mounts easily on DIN rails and uses screw terminals to ensure secure and safe electrical connections, facilitating straightforward installation and maintenance.
Constructed to operate within temperatures ranging from -5°C to 60°C, this contactor offers dependable function even in challenging operating environments. It meets the EN 60947-4-1 standard for control gear, guaranteeing compliance with international quality and safety benchmarks.
Its compact dimensions (45 mm width, 101 mm depth, and 85 mm length) help maximize space efficiency within control panels. The product is also part of Schneider Electric’s Better World initiative, featuring a design optimized for disassembly which supports sustainability efforts by enabling easier recycling and reuse of components.
Operational current rating of 38 A for robust motor and resistive load control. Power rating of 5.5 kW at 24V DC coil voltage. Equipped with 3 NO main contacts and 2 auxiliary contacts (1 NO, 1 NC). DIN rail mounting with screw terminal connections for easy installation.
Suitable for use in environments from -5°C to 60°C operating temperature. Compliant with EN 60947-4-1 industrial standards. Compact form factor with 45 mm width, 101 mm depth, 85 mm length. Better World product designed for environmentally friendly disassembly.
This contactor is ideal for industrial automation, electrical motor control, HVAC systems, manufacturing equipment, and other environments where precise, reliable switching is essential. Engineers and maintenance professionals will appreciate its ease of installation, international standard compliance, and sustainable design.
Explore a wide range of Schneider Electric products and Contactors on EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operational current rating of this model is 38 amps, ensuring reliable switching performance for motor control and resistive load applications.
It has a power rating of 5.5 kW at a coil voltage of 24V DC, making it suitable for various industrial automation requirements.
This contactor is a 3-pole device, designed for effective control of electrical loads.
The coil voltage for this contactor is 24V DC, which is essential for its operation in control circuits.
It operates within a temperature range of -5°C to 60°C, making it suitable for diverse industrial environments.
The compact dimensions of this model are 45 mm in width, 101 mm in depth, and 85 mm in length, optimizing space within control panels.
This model includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It is designed for DIN rail mounting, which allows for easy installation and secure electrical connections.
The contactor conforms to the EN 60947-4-1 standard, ensuring compliance with international quality and safety benchmarks.
This contactor is suitable for motor control, resistive load applications, HVAC systems, and manufacturing equipment.
It uses screw terminal connections, which provide secure and reliable electrical connections during operation.
This model is designed for disassembly, enhancing sustainability and recyclability of its components, as part of Schneider Electric’s Better World initiative.
