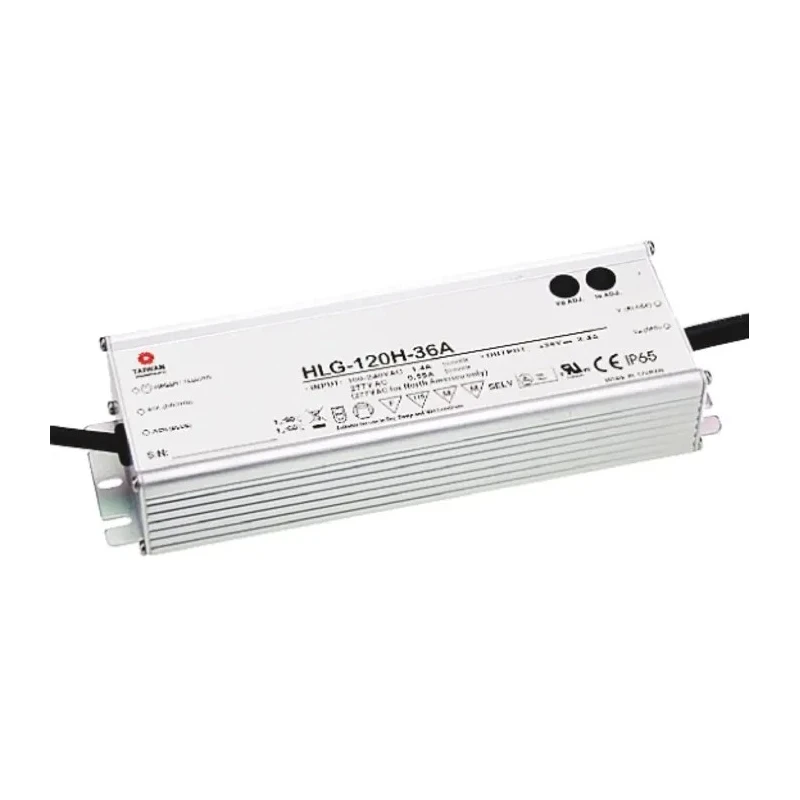

MEAN WELL IP65 1 Output LED Driver 36V 122.4W 3.4A Potentiometer
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP65 |
| IP Rating | IP65 |
| Mount Type | Screw |
| Series | HLG-120H |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 1 |
| Terminal type | Wire |
| Maximum Output Power | 122.4W |
| Input Voltage | 264, 90, 127, 370V ac |
| Output Voltage | 36V |
| Power Dissipation | 122.4W |
| Standards/Approvals | UL, EN, TUV |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-2362 Brand: [MEAN WELL](https://in.rsdelivers.com/brands/mean-well)Manufacturers Part No.: HLG-120H-36A Distrelec Article No.: 30011442 |
| Dimming Operation | Potentiometer |
| Primary Type | AC-AC |
| Driver Current | 3.4A |
Key Features
- Designed with IP65 protection for waterproof indoor and outdoor applications.
- Supports universal AC input voltage ranging 90V to 370V AC for flexible installation.
- Features constant voltage operation mode suitable for LED lighting and street lighting.
- Incorporates active PFC and three-in-one dimming (1-10Vdc, PWM, resistance) for versatile control.
- Built with safety protections including short circuit, overload, over voltage, and over temperature.
- Complies with UL, EN, and TUV standards ensuring reliable and safe operation.
- Enclosed configuration with screw mount type for secure fitting.
- High efficiency up to 94% enhances energy saving performance.
Product Description
MEAN WELL HLG-120H-36A is a high-quality IP65-rated LED driver rated at 36V output voltage, 122.4W maximum power, and 3.4A driver current. It features potentiometer dimming operation and is designed for constant voltage LED lighting applications including street and commercial lighting. This driver supports a universal AC input voltage range of 90 to 370V AC with built-in active power factor correction (PFC), ensuring stable power supply and energy efficiency up to 94%.
The IP65 enclosure makes it ideal for use in both indoor and outdoor environments, offering protection against dust and water ingress. It is constructed with an enclosed design and screw mounting to facilitate secure installation in harsh industrial and commercial settings.
This LED driver supports three-in-one dimming capabilities, allowing 1-10V DC, PWM signal, or resistance based control to adjust the output voltage and current precisely using an internal potentiometer. It is engineered with multiple protections such as short circuit, overload, over voltage, and over temperature safeguard to ensure robust and reliable operation in demanding conditions.
The product complies with various safety standards, including UL8750, EN61347-1, and EN61347-2-13, and meets EMC requirements per EN55015 and EN55022 (CISPR22) Class B, making it suitable for regulated industrial applications worldwide. The LED driver’s Mean Time Between Failure (MTBF) is based on MIL-HDBK-217F, ensuring long lifespan and dependable performance.
Designed for industrial use, this LED driver excels in applications such as LED lighting installations in street lighting, building illumination, and outdoor signage, capable of operating in dry, damp, or wet locations. Its compact and rugged design supports reliable performance under varied environmental conditions.
IP65 waterproof and dustproof for outdoor and indoor use. Universal AC input voltage from 90V to 370V to suit global standards. Potentiometer dimming with 1-10Vdc, PWM, or resistance control options. High efficiency up to 94% to reduce energy losses.
Multiple safety protections for enhanced reliability. Compliant with UL, EN, and TUV certifications. Enclosed screw mount design ensures easy and secure installation. Suitable for LED lighting and street lighting industrial applications.
MTBF tested to MIL-HDBK-217F for reliability assurance. Explore more LED drivers from MEAN WELL and other power components on EnvMart for your electronic and industrial projects.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 122.4W.
The output voltage of this model is 36V.
This LED driver features potentiometer dimming operation, allowing for control via 1-10V DC, PWM signal, or resistance.
It includes protections against short circuit, overload, over voltage, and over temperature.
The IP rating of this LED driver is IP65, making it suitable for both indoor and outdoor use.
It features a screw mount type for secure installation.
It complies with UL, EN, and TUV standards, ensuring reliable and safe operation.
The driver current for this model is 3.4A.
It is designed for constant voltage LED lighting applications, including street lighting and commercial lighting.
This model has an enclosed configuration, which helps protect it in various environments.
This LED driver has an efficiency rating of up to 94%, enhancing energy-saving performance.
