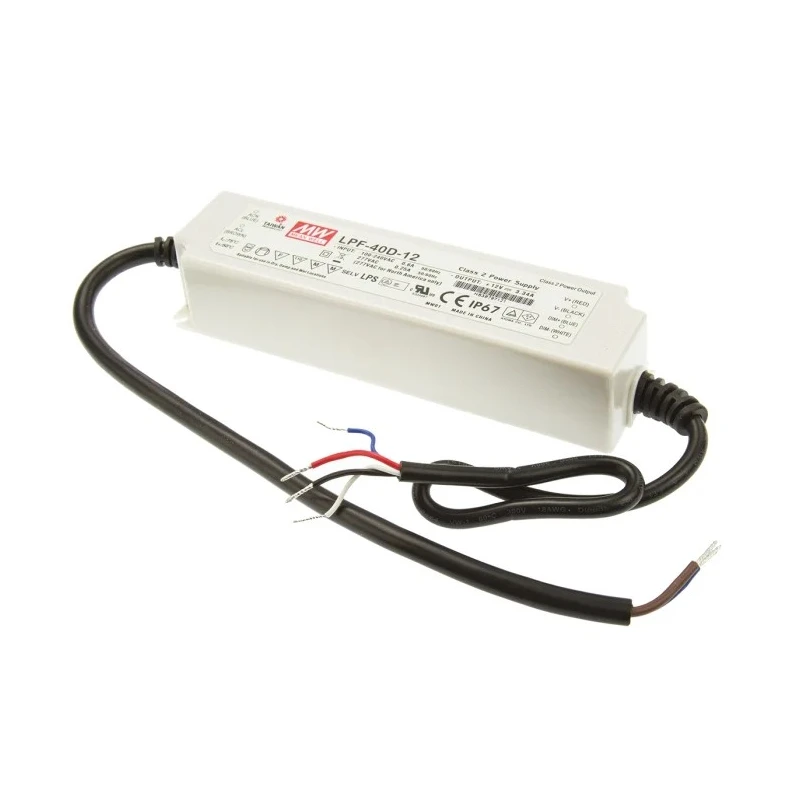

MEAN WELL IP67 5 Output Dimmable Constant Voltage LED Driver, 12V, 40.08W, 3.34A, 1 to 10 V PWM Resistance
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | LPF-40D |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 40.08W |
| Input Voltage | 305, 90, 127, 431V ac |
| Output Voltage | 12V |
| Power Dissipation | 40.08W |
| Standards/Approvals | UL, TUV, SELV, ENEC, CSA, CE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-1640 Brand: [MEAN WELL](https://in.rsdelivers.com/brands/mean-well)Manufacturers Part No.: LPF-40D-12 Distrelec Article No.: 16996740 |
| Dimming Operation | 1 to 10 V PWM Resistance |
| Primary Type | AC-DC |
| Driver Current | 3.34A |
Key Features
- Supports universal AC input voltage from 90 to 305V for flexible installation.
- Fully encapsulated with IP67 rated plastic case for water and dust resistance.
- Provides 3.34A constant current output suitable for LED lighting applications.
- Includes protections against short circuit, overload, over voltage, and over temperature.
- High efficiency up to 89% for energy saving and reliability.
- Compliance with worldwide safety standards including UL, TUV, SELV, ENEC, CSA, and CE.
- Compact enclosed configuration with screw mount type for easy attachment.
- Ideal for industrial, commercial LED lighting and moving sign applications.
Product Description
MEAN WELL LPF-40D-12 is a robust 5 output dimmable LED driver delivering 12V constant voltage output with a maximum power of 40.08W and 3.34A current. Designed for industrial and commercial LED lighting solutions, this power supply features an IP67 fully encapsulated plastic case which offers superior protection against dust and water ingress, making it suitable for demanding environments.
The driver supports a wide universal AC input voltage range from 90 to 305V, enabling global compatibility. A built-in 3 in 1 dimming function allows control via 1 to 10Vdc, PWM signal, or resistance, offering flexible lighting dimming options. With a high efficiency of up to 89%, it minimizes power loss and maximizes reliability.
Safety and durability are ensured by multiple protections including short circuit, overload, over voltage, and over temperature safeguards. The active power factor correction (PFC) optimizes electrical efficiency while harmonics are controlled to meet EN61000-3-2 Class C standard.
The enclosed screw-mounted design simplifies installation. This IP67 rated LED driver complies with international safety standards such as UL8750, EN61347-1, EN61347-2-13, and has certifications from cULus, TUV, and others.
Universal AC input voltage range from 90 to 305V AC. LED driver with 5 constant voltage outputs. Supports 1 to 10 V PWM resistance dimming methods. Fully encapsulated IP67 rated enclosure for outdoor use. High efficiency up to 89% for energy savings.
Comprehensive protection against electrical faults. Active power factor correction (PFC) for improved power quality. Designed for industrial and commercial LED lighting applications.
This LPF-40D-12 model is ideal for powering LED strips, moving signs, and other constant voltage LED lighting systems in harsh environments, delivering reliable dimmable performance with global safety approvals. Choose MEAN WELL for trusted durability and advanced LED driver technology.
Explore more LED drivers and power supplies by MEAN WELL at EnvMart for professional lighting components and solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 40.08W.
This unit provides 5 constant voltage outputs.
It supports dimming via 1 to 10V, PWM signal, or resistance.
The output voltage is 12V.
This LED driver features an enclosed configuration with a screw mount type for easy attachment.
It includes protections against short circuit, overload, over voltage, and over temperature.
It has a high efficiency rating of up to 89%.
Yes, it is fully encapsulated with an IP67 rated enclosure, making it suitable for outdoor use.
It complies with multiple safety standards including UL, TUV, SELV, ENEC, CSA, and CE.
The country of origin for this model is India.
The driver current is 3.34A.
