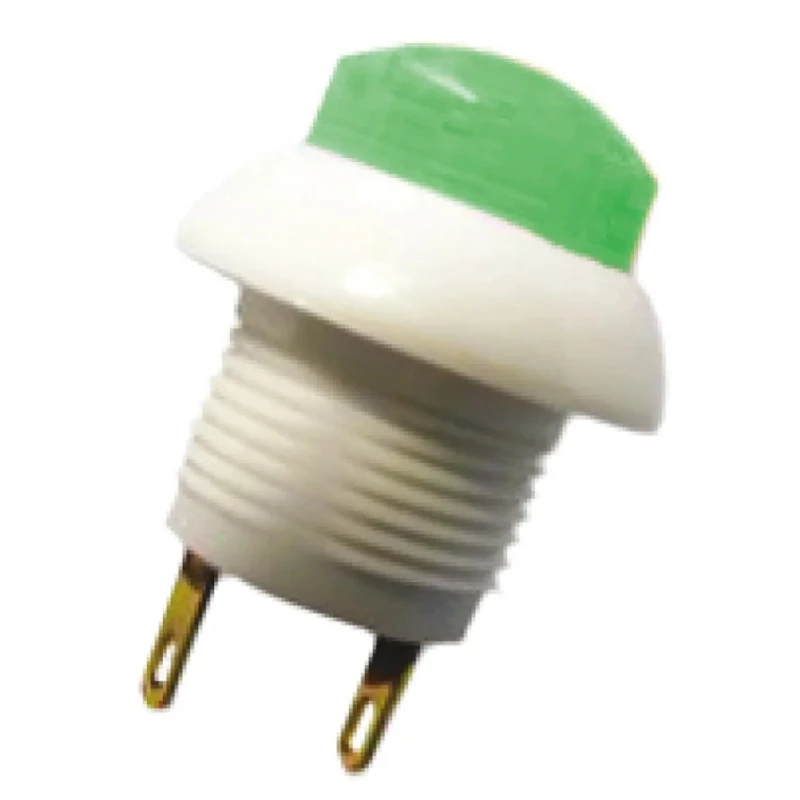

Otto P9 Series Push Button Switch Momentary Panel Mount 12 mm Cutout DPDT Green LED IP64 28V dc 115V ac P9-213195

Otto P9-213195 Push Button Switch is a precision engineered, momentary action switch with a contoured dome style button designed for panel mounting with a 12 mm cutout size. It features a double pole double throw (DPDT) contact configuration and is equipped with a green LED for visual indication. The switch operates at 28 V dc and 115 V ac voltage ratings, making it suitable for a variety of industrial electrical control applications.

This switch delivers positive tactile feedback with its button actuator, ensuring reliable user operation. The body and bezel are white, with a rugged construction sealed to IP64 protection rating to withstand dust and water splashes. It has a short behind-panel depth of approximately 12 mm and the threaded case body is designed to secure firmly with a hex nut.

Electrical performance includes a rated switch contact current of 5 A with low contact resistance for sensitive circuit applications. The P9 series switch maintains operational integrity under extreme environmental conditions, operating between -55°C minimum and 85°C maximum temperatures, and is capable of enduring heavy shock and vibration stresses.

Typical industrial applications include use in control grips, computers, instrumentation equipment, heavy machinery, and other demanding control panel environments requiring durable and precisely engineered Push Button Switches. The mechanical life is about one million operations with an electrical life of 25,000 operations under rated loads.

The switch complies with RoHS standards ensuring environmentally responsible manufacturing. It is produced in the United States, reflecting high manufacturing quality standards. The switch is a panel-mount type requiring a 12 mm cutout for installation.

Double Pole Double Throw configuration supports versatile switching applications. Solder-type terminals facilitate reliable electrical connections. Green LED provides clear indication without illuminated button operation.

IP64 rating affords protection from dust and water during operation. Compatible with voltages up to 28 V dc and 115 V ac. Operation temperature range is -55°C to 85°C. Includes 15/32-32 threaded body for secure panel mounting.

Switch configuration is On-On providing maintained contact switching. Designed to withstand industrial shock and vibration environments.
