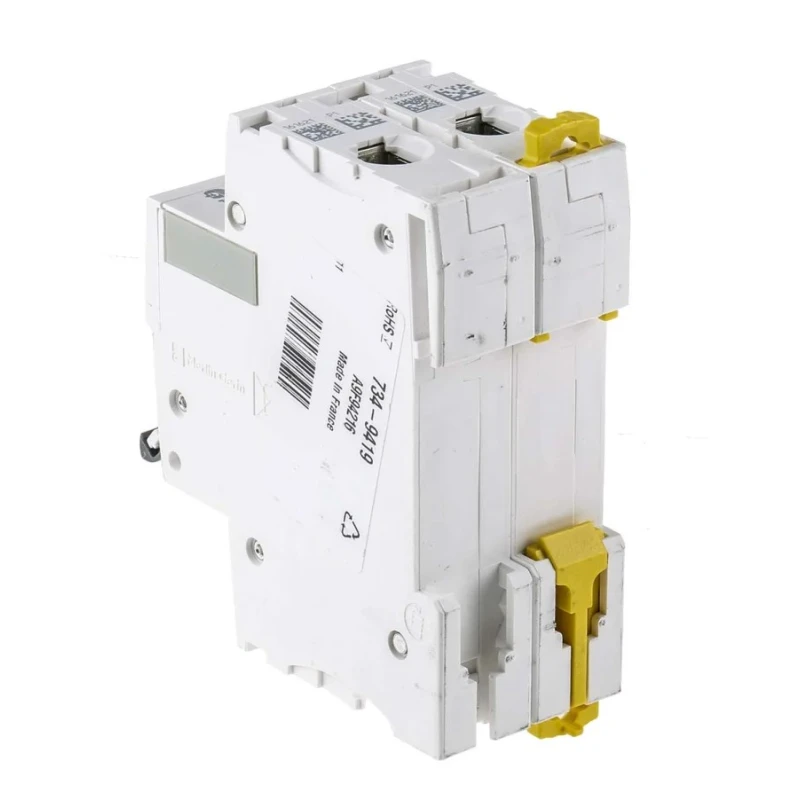

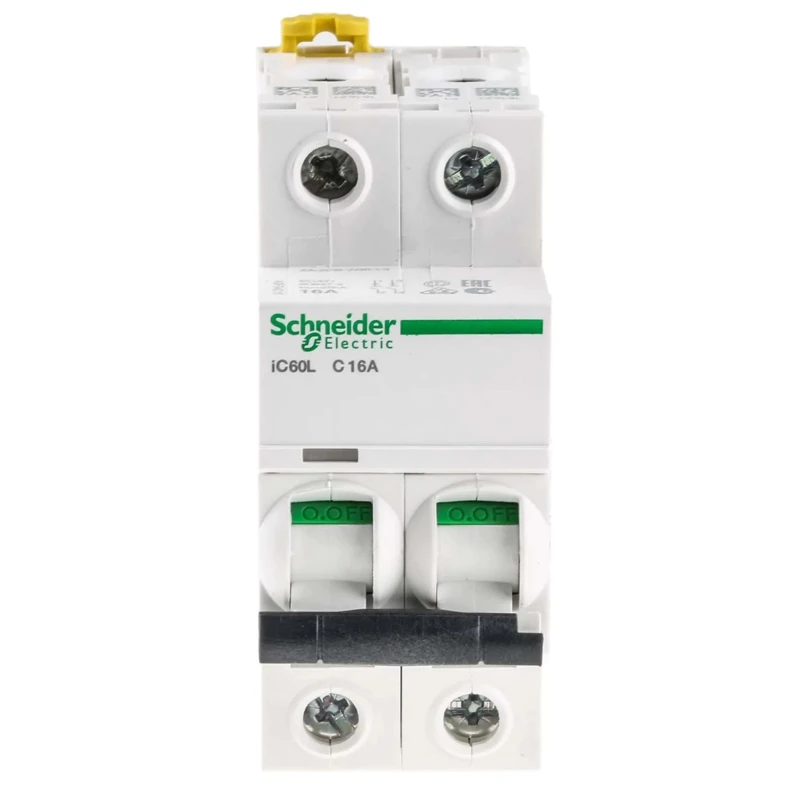

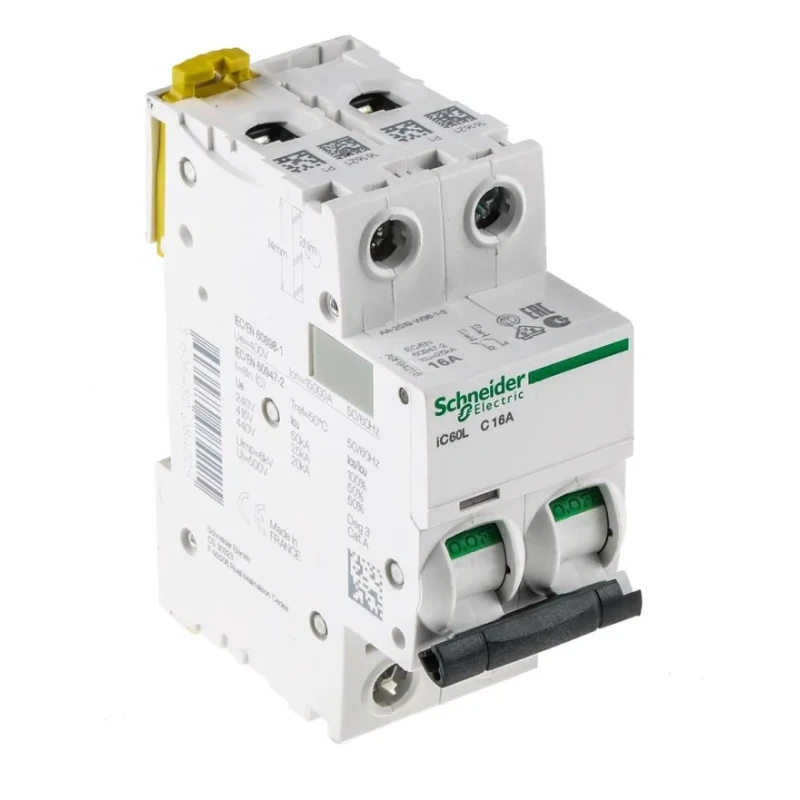

Schneider Electric Acti9 iC60L Miniature Circuit Breaker, 2-Pole, 16A, Type C, Thermal Magnetic Trip Unit A9F94216

Schneider Electric A9F94216 is a high-performance Acti9 iC60L series miniature circuit breaker designed for dependable protection of electrical installations. Featuring a 2-pole configuration and rated for 16 amperes, this circuit breaker is suitable for advanced protection tasks in industrial, commercial, and residential panels.

It operates using a thermal magnetic trip mechanism that combines thermal overload and magnetic short-circuit protection, providing reliable interruption of fault conditions. The breaker supports a wide range of rated AC voltages from 100V to 440V and a rated DC voltage of 12V, enabling versatile application in both AC and DC electrical networks.

With a breaking capacity of 10 kiloamperes and instantaneous break action, the device ensures swift disconnection of fault currents, enhancing safety and minimizing equipment damage. Its compact design (85mm height, 36mm width, 78.5mm depth) allows easy mounting on standard DIN rails with screw terminals for secure connections.

The product conforms to the EN/IEC 60898-1 and EN/IEC 60947-2 international standards, as well as RoHS and REACH compliance, ensuring quality and environmental responsibility. The IP20 protection rating guards against access to live parts, making it suitable for use in electrical panels in industrial, laboratory, manufacturing, HVAC, and commercial building applications.

Equipped with a thermal magnetic trip unit for precise and dependable circuit protection. Compatible with AC voltages ranging from 100V to 440V and 12V DC systems. Breaking capacity of 10kA for effective fault current interruption.

Screw terminal ensures secure and reliable connections. Compact DIN rail mounting format for easy panel integration. Instantaneous break time enhances rapid fault clearing. Toggle switch reset actuator for user-friendly operation.

Conforms to key international safety and quality standards. IP20-rated enclosure provides ingress protection while allowing ventilation.

This Schneider Electric A9F94216 Miniature Circuit Breaker is ideal for protecting lighting circuits, machinery, and electrical distribution in commercial and industrial environments. It offers reliable overload and short circuit protection for a wide range of AC and DC electrical installations.
