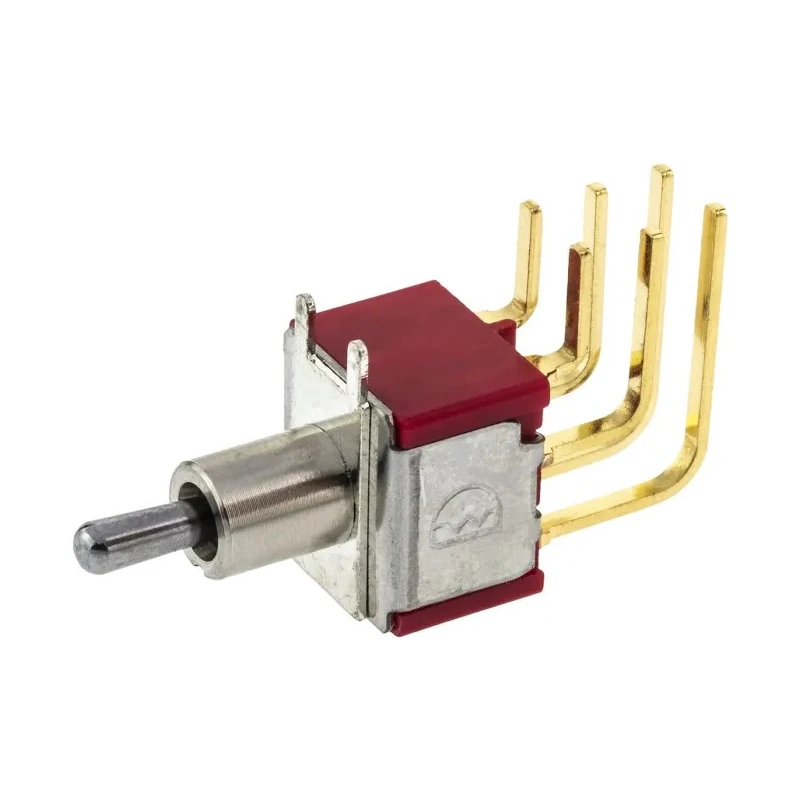

RS PRO Toggle Switch PCB Mount On-Off-On DPDT Through Hole Terminal 26 V dc 112 V ac 734-7040
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 734-7040 |
| Mount Type | PCB |
| Series | 1MD |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | CE, CSA, RoHS, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 734-7040Brand: RS PRO |
| Switch Operation | On-Off-On |
| Actuator Length | 5.08mm |
| Contact DC Voltage | 26V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 112V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- This miniature toggle switch provides double pole double throw (DPDT) contact configuration for versatile circuit control.
- Switch operation is On-Off-On, ideal for selecting between two circuits or states.
- Terminal type is through-hole on PCB, ensuring secure mechanical and electrical connection.
- The actuator is chrome plated brass with a length of 5.08 mm for easy manual use.
- Switch contact current rating is 400 mA, suitable for low power signal switching.
- Rated contact voltages are 26 V dc and 112 V ac for broad compatibility.
- The panel cutout size is 6.35 mm fitting standard mounting requirements.
- Mechanical life rated at 40,000 cycles provides long term durability and reliability.
Product Description
RS PRO 734-7040 Toggle Switch is a PCB mount miniature switch designed to offer reliable double pole double throw (DPDT) operation with an On-Off-On configuration. It supports a contact current of 400 mA with working voltages of 26 V dc and 112 V ac. The actuator is made of chrome plated brass and measures 5.08 mm in length, providing robust manual control.
This toggle switch is mounted via through-hole terminals on printed circuit boards and requires a 6.35 mm panel cutout size. It is engineered for long-lasting use with a mechanical life rating of 40,000 cycles, suitable for industrial and electrical automation uses.
The device operates effectively over a wide temperature range from -30°C to 85°C, making it suitable for harsh environments. In addition, it meets international standards including CE, CSA, RoHS, and UL, ensuring quality and compliance for diverse applications.
Typical applications include industrial control systems, automation panels, electronic instruments, and signal switching where reliable circuit selection is needed. Compact and durable, this RS PRO toggle switch enhances operational efficiency in manufacturing, electrical engineering, and automation sectors.
This miniature toggle switch provides double pole double throw (DPDT) contact configuration for versatile circuit control. Switch operation is On-Off-On, ideal for selecting between two circuits or states. Terminal type is through-hole on PCB, ensuring secure mechanical and electrical connection.
The actuator is chrome plated brass with a length of 5.08 mm for easy manual use. Switch contact current rating is 400 mA, suitable for low power signal switching. Rated contact voltages are 26 V dc and 112 V ac for broad compatibility.
The panel cutout size is 6.35 mm fitting standard mounting requirements. Mechanical life rated at 40,000 cycles provides long term durability and reliability. Operates reliably between -30°C and 85°C for industrial temperature ranges.
Complies with CE, CSA, RoHS and UL standards ensuring safety and environmental compliance. Explore more top-quality Toggle Switches and industrial electrical components at EnvMart for optimized electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch features a double pole double throw (DPDT) contact configuration, allowing versatile circuit control.
The switch is rated for contact voltages of 26 V dc and 112 V ac, providing broad compatibility for various applications.
It can operate effectively at a maximum temperature of 85°C, making it suitable for use in higher temperature environments.
The mechanical life of this toggle switch is rated at 40,000 cycles, ensuring long-term use in applications.
This switch requires a panel cutout size of 6.35 mm for proper installation.
The switch has a contact current rating of 400 mA, suitable for low power signal switching.
It utilizes through-hole terminals for PCB mounting, ensuring a secure mechanical and electrical connection.
The actuator is made of chrome plated brass, providing durability and ease of manual operation.
The minimum operating temperature for this toggle switch is -30°C, allowing it to function in colder environments.
It complies with several international standards including CE, CSA, RoHS, and UL, ensuring quality and safety.
The switch operates in an On-Off-On configuration, ideal for selecting between two circuits or states.
This model belongs to the 1MD series, which indicates its specific design and application features.
