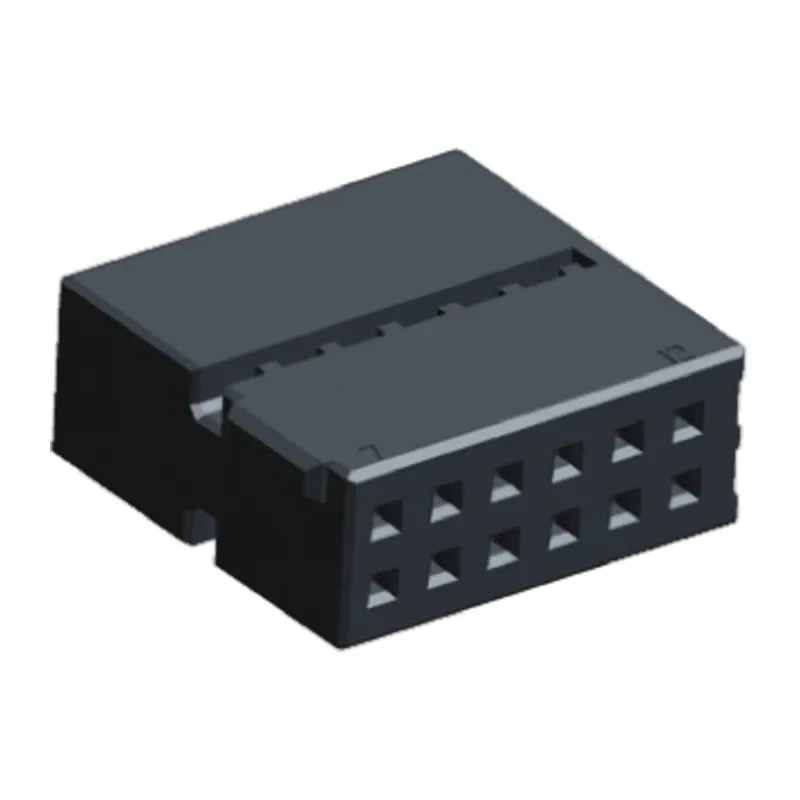

TE Connectivity Micro Quadlok System Automotive Connector Female Black Cable 12 Way Crimp Termination 1534100-1

TE Connectivity 1534100-1 Micro Quadlok System automotive connector is a female connector with 12 contacts arranged in 2 rows, designed for crimp termination on cables. Operating between -40°C and 80°C, it ensures robust electrical connections for automotive powertrain, safety, and body systems. The compact black housing made from Polybutylene Terephthalate provides durability and reliability in demanding automotive environments.

This connector series features integral primary terminal locking force via stainless steel locking lances, securing contacts firmly to prevent disconnection. Designed for high density and compact form factor, it supports current up to 7.5A and is suitable for applications including powertrain systems, safety and security, convenience, driver information, and chassis systems.

Polarization and keying prevent mismating and protect electrical integrity. Sealed versions provide waterproofing options, widely preferred in automotive and industrial applications exposed to harsh conditions. Additional accessories like covers, levers, and retainers can be purchased separately to enhance performance.

The Micro Quadlok (MQS) 2.54 mm pitch system combines compact design with versatile application compatibility, supporting diverse automotive electrical needs. It is an industry-standard component for manufacturing and repair, ensuring secure cable connections with crimp terminations.

The connector has 12 contacts arranged in 2 rows for high density. Termination type is crimp to ensure secure electrical connections. It supports a current rating of 7.5A for reliable power transmission. Housing is made from durable Polybutylene Terephthalate material for robustness.

Operating temperature ranges from -40°C to 80°C suitable for automotive environments. The connector is black in color with a compact size of 16.6mm width, 6.8mm height, and 16.2mm depth. It has integral primary terminal locking force for secure contact retention.

Designed for cable mount applications without included cord. Polarization and keying features prevent mismating in assemblies. Sealed versions are available for waterproof protection in harsh environments.

This automotive connector is ideal for industrial, manufacturing, automotive repair, and assembly line applications. Explore more in our Automotive Connector category at EnvMart for high-quality TE Connectivity components.
