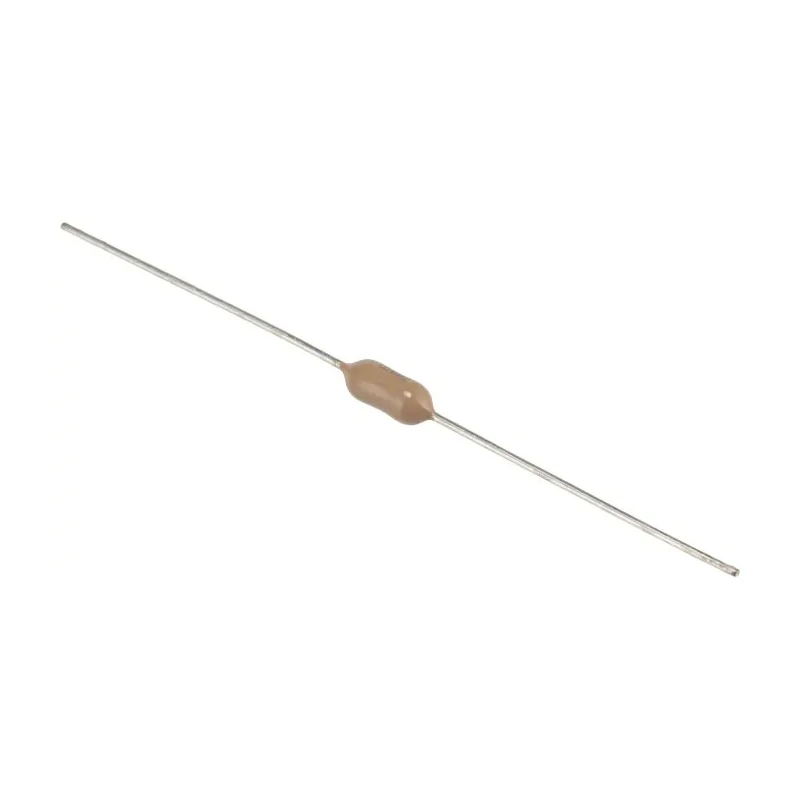

RS PRO Non-Resettable Fuse Axial 1A 250V AC Epoxy Coated Body 764-9548
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Diameter | 3.18mm |
| Brand | RS PRO |
| Body Material | Epoxy Coated |
| Height | 7.1mm |
| Model | 764-9548 |
| Current Rating | 1A |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 28mm |
| Breaking Capacity | 50A |
| Standards/Approvals | RoHS |
| Lead Diameter | 0.64mm |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Axial |
Key Features
- Axial lead orientation for straightforward PCB mounting.
- Rated current of 1 ampere with 250 volts AC voltage limit.
- Epoxy coated body provides robust insulation and protection.
- Time delay fuse characteristics ideal for slow blow applications.
- Breaking capacity of 50A ensures safety against overcurrent surges.
- Lead diameter of 0.64mm suited for secure electrical connections.
- Operating temperature range from -55°C to 125°C suitable for varied environments.
- Compliance with RoHS environmental standards.
Product Description
RS PRO 764-9548 is a high-quality Non-Resettable Fuse designed for reliable circuit protection in industrial and automation applications. This axial fuse, rated at 1 ampere and 250 volts AC, features an epoxy-coated body for enhanced durability and electrical insulation.
The fuse is engineered with a time delay (slow blow) characteristic, making it suited for circuits with temporary surges or inrush currents. It offers a breaking capacity of 50 amps, ensuring effective protection by interrupting fault currents safely.
Physical dimensions include a 28mm lead length and a height of 7.1mm, with a diameter of 3.18mm and lead diameter of 0.64mm, allowing for precise PCB mounting and integration into various devices.
The fuse's operational temperature range from -55°C to 125°C permits use in diverse environmental conditions, making it a versatile component for electrical and automation industry applications, including control panels, machinery, and electronic devices.
Axial lead orientation for easy PCB installation. Rated 1A current, 250V AC voltage for standard circuit protection. Epoxy coated thermoplastic body provides electrical safety. Time delay fuse characteristic protects against transient conditions.
50A breaking capacity for high fault current interruptions. Compact physical dimensions suitable for diverse electrical assemblies. Wide operating temperature range from -55°C to 125°C. RoHS compliant ensuring environmental safety standards.
Ideal for electrical, automation, and industrial applications. Reliable and durable fuse for critical circuit protection needs.
This RS PRO fuse is an excellent choice for engineers and technicians seeking a dependable, Non-Resettable Fuse solution for AC circuits. EnvMart offers this fuse as part of its electrical protection product range to cater to commercial, industrial, and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This non-resettable fuse is rated for 1 ampere and has a voltage limit of 250 volts AC.
It has a breaking capacity of 50 amps, which allows it to safely interrupt fault currents.
The fuse has a diameter of 3.18mm, a height of 7.1mm, and a lead length of 28mm.
This model features an axial lead orientation, making it suitable for straightforward PCB mounting.
It operates within a temperature range of -55°C to 125°C, allowing for use in diverse environments.
It is designed with a time delay (slow blow) characteristic, making it suitable for circuits with temporary surges or inrush currents.
The body of the fuse is made from epoxy-coated material, providing electrical insulation and protection.
Yes, it is compliant with RoHS environmental standards, ensuring it meets safety and environmental regulations.
The lead diameter is 0.64mm, which is suited for secure electrical connections.
This fuse is suitable for use in electrical, automation, and industrial applications, including control panels and electronic devices.
The RS PRO 764-9548 fuse is manufactured in India.
The time delay characteristic helps protect against transient conditions, allowing temporary surges without blowing the fuse immediately.
