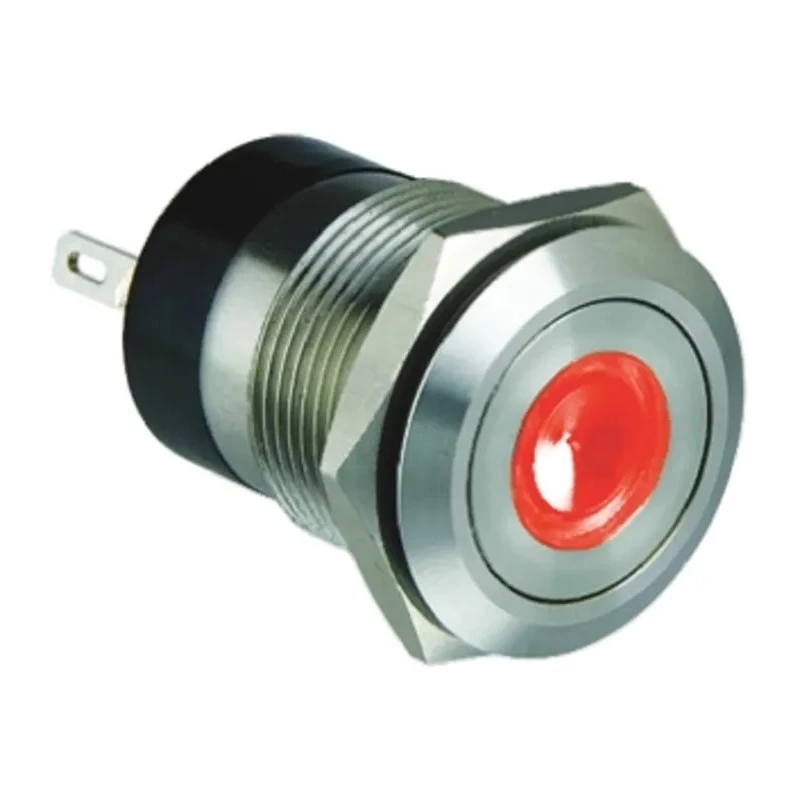

Bulgin Illuminated Push Button Switch Panel Mount SPST Momentary Red LED 19.2 mm Cutout IP66 24 V dc MPI001
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | Bulgin |
| Model | MPI001 |
| IP Rating | IP66 |
| Mount Type | Panel |
| Overall Length | 35mm + 300mm (flying leads), 32.7mm (2.8mm tags) |
| Series | MPI001 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | 1 Contact push to make |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 729-5306PBrand: BulginManufacturers Part No.: MPI001/28/RD/12 |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 24V dc |
| Actuator Style | Button |
| Switch Contact Current | 50mA |
Key Features
- Constructed with stainless steel for vandal resistance and durability.
- Fully sealed to IP66 suitable for harsh environments.
- Momentary push-button operation with SPST contact configuration.
- Red LED illumination integrated with an integral supply resistor for 24 V dc.
- Wide operating temperature range from -30°C to 70°C.
- Designed with integral TVS protection for enhanced switch lifespan.
- Offered with tab terminal type and panel mount design.
- Overall length of 35 mm plus 300 mm flying leads or 32.7 mm with 2.8 mm tags.
Product Description
Bulgin MPI001 Series Illuminated Push Button Switch is a high-quality momentary push-button designed for panel mount applications. Featuring a 19.2 mm panel cutout and SPST contact configuration, this switch includes a red LED illumination powered at 24 V dc, with an integral supply resistor to ensure optimal performance for the specified voltage.
Manufactured from corrosion-resistant stainless steel, the switch is built to withstand wear and tear, making it ideal for industrial and commercial environments requiring vandal resistance. The device is fully sealed with an IP66 rating, providing protection against dust and water ingress, suitable for demanding applications in electrical, automation, and control systems.
Operating reliably in temperatures from -30°C to 70°C, this push-button switch includes internal transient voltage suppression (TVS) protection, maximizing durability and operational reliability. It features a tab terminal type for easy wiring and installation, with flying lead or solder tag termination options.
Typical industrial applications span electrical panels, industrial machinery controls, automation systems, and safety equipment where robust and dependable switch operation is essential. The switch complies with RoHS standards to meet environmental and safety regulations.
Constructed with stainless steel for vandal resistance and durability. Fully sealed to IP66 suitable for harsh environments. Momentary push-button operation with SPST contact configuration. Red LED illumination integrated with an integral supply resistor for 24 V dc.
Wide operating temperature range from -30°C to 70°C. Designed with integral TVS protection for enhanced switch lifespan. Offered with tab terminal type and panel mount design. Overall length of 35 mm plus 300 mm flying leads or 32.7 mm with 2.8 mm tags.
Compliance with RoHS directive ensuring environmental safety.
This Bulgin MPI001 push button switch is a reliable choice for demanding industrial, electrical, and automation environments. Explore the full range of switch solutions in the Switches & Sockets category on EnvMart.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features an SPST (Single Pole Single Throw) contact configuration, designed for momentary operation.
This model has an IP66 rating, which means it is fully sealed against dust and can withstand water ingress, making it suitable for harsh environments.
The switch operates reliably within a temperature range of -30°C to 70°C.
The required panel cutout size for this switch is 19.2 mm.
It features tab terminals for easy wiring and installation.
The overall length of this switch is 35 mm plus 300 mm for the flying leads, or 32.7 mm with 2.8 mm tags.
The red LED illumination is powered at 24 V dc, with an integral supply resistor included.
The switch is constructed from stainless steel, providing resistance to vandalism and wear.
Typical applications include electrical panels, industrial machinery controls, automation systems, and safety equipment.
Yes, it complies with RoHS standards, ensuring it meets environmental and safety regulations.
It is designed with integral transient voltage suppression (TVS) protection to enhance its lifespan and operational reliability.
The switch contact current rating is 50 mA.
