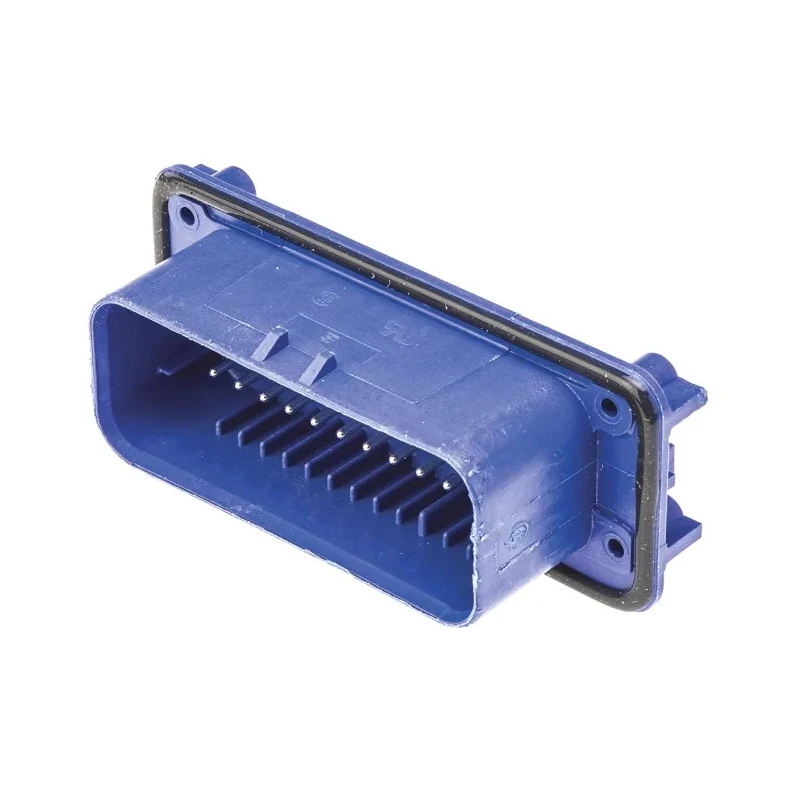

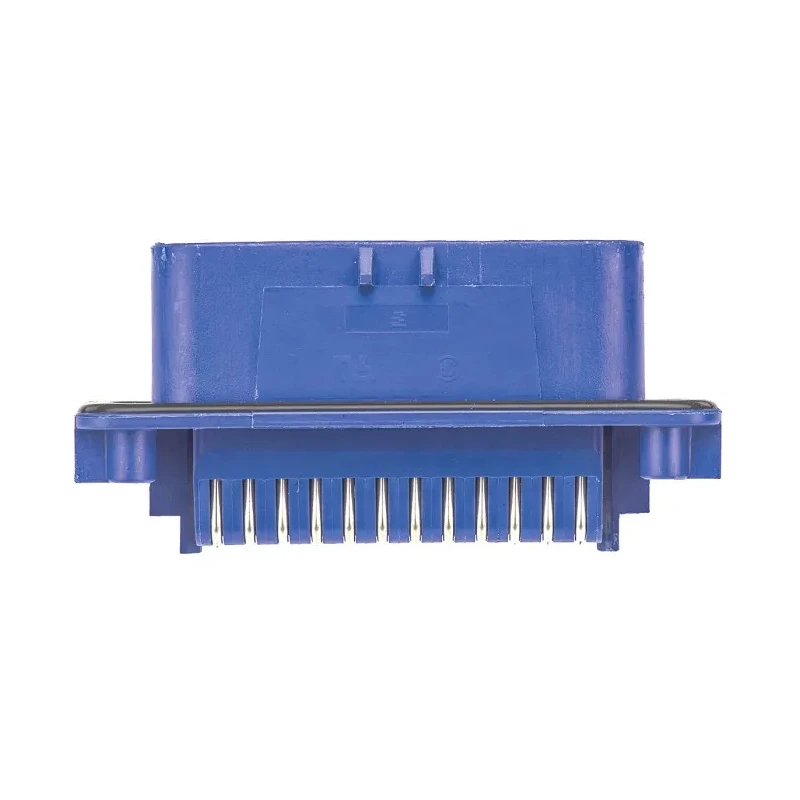

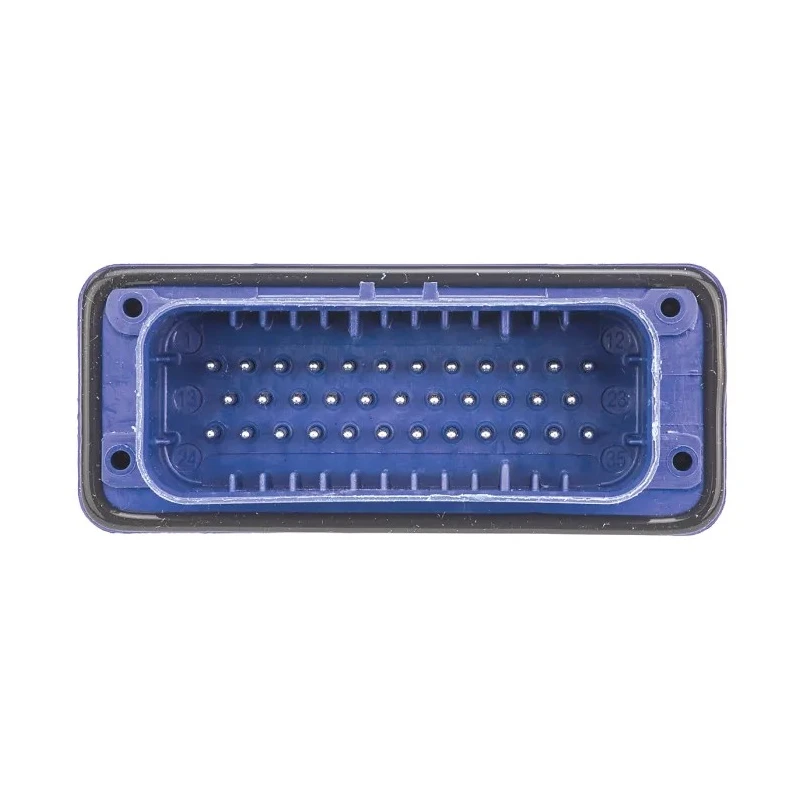

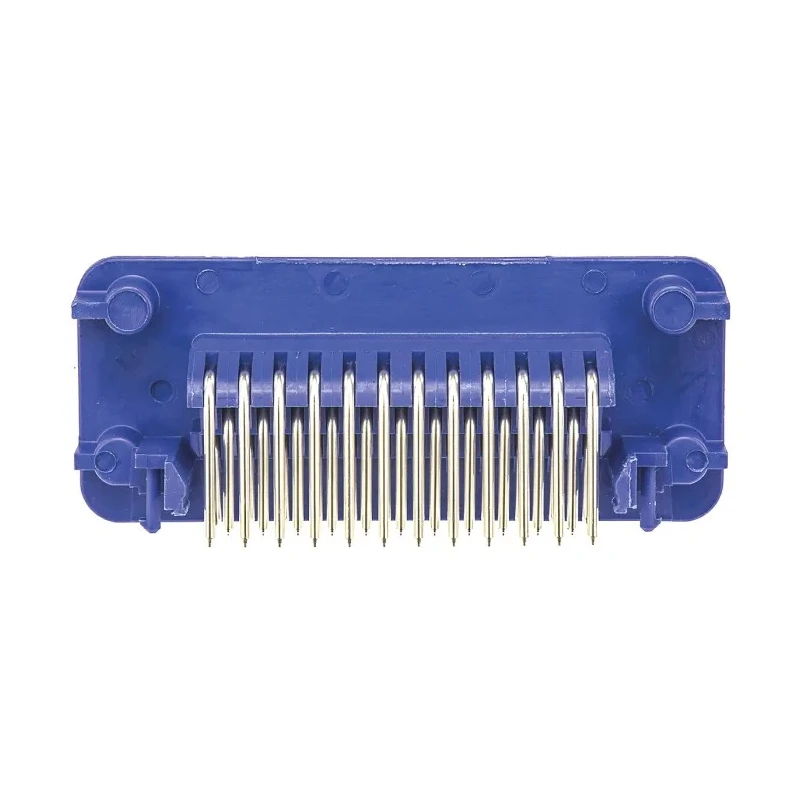

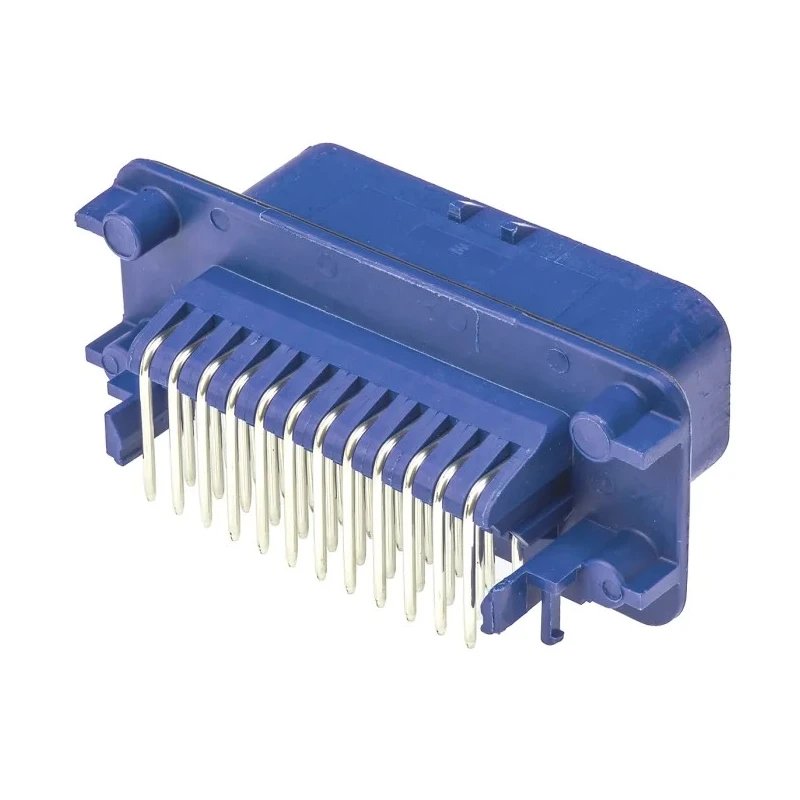

TE Connectivity Ampseal Automotive Connector Male Blue Panel Mount 35 Way Solder Termination 776163-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Height | 32.1mm |
| Model | 776163-5 |
| Depth | 37.9mm |
| IP Rating | IP6K9K |
| Width | 76.9mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Standards/Approvals | EU RoHS, EU ELV |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 726-6951Brand: TE ConnectivityManufacturers Part No.: 776163-5 |
| Contact Plating | Gold |
| Number of Contacts | 35 |
Key Features
- Designed for panel mount applications requiring 35 contacts.
- Features a male solder termination for reliable electrical connectivity.
- Constructed with fibreglass reinforced polybutylene terephthalate housing.
- Brass contacts with gold plating ensure superior conductivity and corrosion resistance.
- Blue color coding for easy identification and matching.
- IP69K rating provides full dust tight and high-pressure water resistance.
- Operates reliably at temperatures ranging from -40°C to 125°C.
- Series Ampseal ensures compatibility across automotive and industrial applications.
Product Description
TE Connectivity 776163-5 is a durable automotive connector designed for robust electrical connections in harsh environments. This male connector features 35 solder termination contacts arranged in 3 rows, making it suitable for panel mount PCB applications requiring secure, high-density connections.
The connector housing is made from fibreglass reinforced polybutylene terephthalate, offering excellent mechanical strength and temperature endurance with an operating range from -40°C to +125°C. The brass contacts are plated with gold to ensure superior conductivity and resistance to corrosion, vital for reliable signal transmission in automotive and industrial equipment.
This Ampseal series connector offers an IP69K ingress protection rating when mated, indicating the highest level of sealing against dust and high-pressure, high-temperature water jets, making it ideal for off-road vehicles, trucks, buses, construction, agriculture, marine, and emergency services.
The blue color of the connector aids in quick identification and matching during installation. It is sealed with silicone rubber to withstand shocks and high vibration environments frequently encountered in automotive and heavy-duty applications.
Designed for panel mount configurations with 35 solder termination contacts. Durable fibreglass reinforced housing for high mechanical and thermal resistance. Gold-plated brass contacts provide excellent electrical performance.
IP69K rated for superior protection against dust and high-pressure water. Wide operating temperature range from -40°C to +125°C. Resilient to vibration and shock, suitable for harsh industrial use. Ampseal series compatibility ensures widespread industry acceptance.
Perfect for automotive, agricultural, marine, construction, and emergency vehicles. Sealed with silicone to ensure insulation and reliability. Blue color coding simplifies installation and maintenance.
This connector is an excellent choice for any rugged industrial or automotive electrical system requiring a high-density, reliable connection that withstands extreme environmental conditions. Browse more Automotive Connectors and TE Connectivity products at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
It has an IP69K rating, providing full dust tightness and resistance to high-pressure water jets.
This connector features 35 contacts arranged in 3 rows.
The housing is made from fibreglass reinforced polybutylene terephthalate, and the contacts are brass with gold plating.
The dimensions of this model are 76.9mm in width, 37.9mm in depth, and 32.1mm in height.
It uses a solder termination type for reliable electrical connectivity.
Yes, it is designed to withstand harsh environments, with a temperature range from -40°C to 125°C and an IP69K rating.
This model is suitable for automotive, agricultural, marine, construction, and emergency vehicle applications.
The connector is color-coded blue for easy identification and matching during installation.
It complies with EU RoHS and EU ELV standards.
This connector is designed for panel mount configurations.
This connector is a male type.
