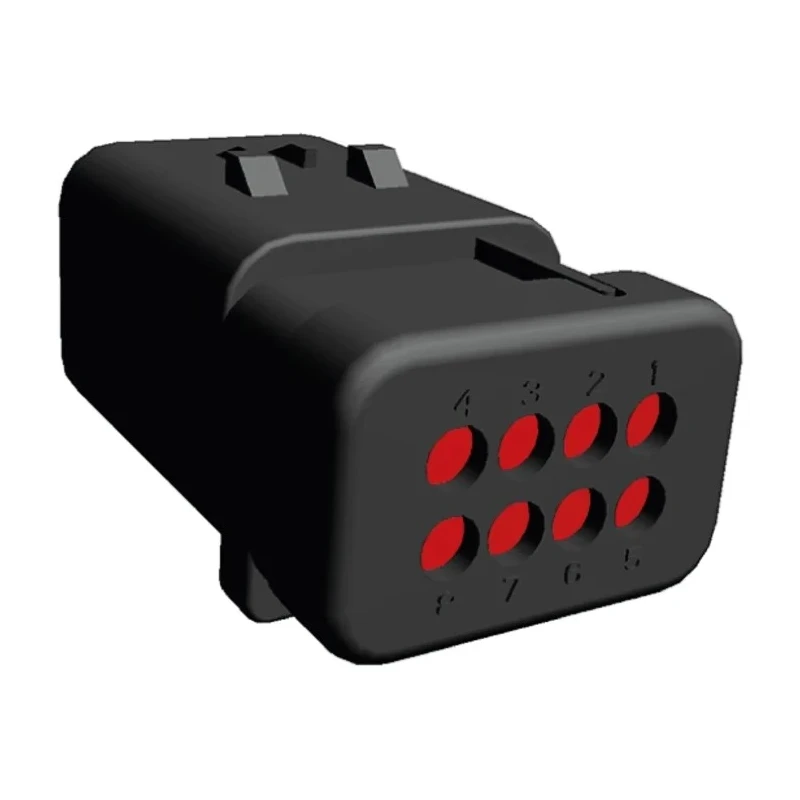

TE Connectivity AMPSEAL 16 Automotive Connector Male Red Clip 8 Way Crimp Termination 776538-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Current | 13A |
| Height | 26.65mm |
| Model | 776538-1 |
| Depth | 47.55mm |
| IP Rating | IP67 |
| Width | 28.6mm |
| Gender | Male |
| Mount Type | Clip |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | AMPSEAL 16 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU RoHS, EU ELV |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 726-6875Brand: TE ConnectivityManufacturers Part No.: 776538-1 |
| Number of Contacts | 8 |
Key Features
- The connector supports 8 contacts and provides a current rating of 13A.
- It features a male gender with crimp termination type suitable for secure wire connections.
- The housing is made of fibreglass reinforced polybutylene terephthalate in red color.
- It has an IP67 rating for high resistance to dust and water ingress.
- The connector is designed with a clip mount and consists of 2 rows to optimize space.
- Operating temperature ranges from -40°C to 125°C ensuring durability in harsh environments.
- Series designation is AMPSEAL 16, providing compatibility with matching parts in the system.
- This connector housing provides physical keying and color coding to prevent mismating.
Product Description
TE Connectivity 776538-1 AMPSEAL 16 Automotive Connector Male Red Clip 8 Way Crimp Termination is engineered for reliable electrical connections in automotive and industrial applications.
This connector features a rugged fibreglass reinforced polybutylene terephthalate housing in red color, supporting 8 contacts configured in 2 rows with a clip mounting type. It ensures secure crimp termination for firm electrical contact and withstands currents up to 13A.
Designed to operate in temperatures ranging from -40°C to 125°C, it is suitable for harsh environments commonly found in automotive, manufacturing, and industrial sectors. The IP67 ingress protection rating guarantees resistance to dust and water, enhancing durability and reliability.
The AMPSEAL 16 series connectors include integral primary latch reinforcement and utilize color coding with physical keying mechanisms to prevent mismating, streamlining assembly and maintenance processes.
The connector accepts wire sizes from 1.30 to 2.54 mm, accommodating diverse wiring harness requirements. It complies with environmental directives EU RoHS and EU ELV, reflecting TE Connectivity's commitment to safety and sustainability.
The connector supports 8 contacts and provides a current rating of 13A. It features a male gender with crimp termination type for secure connections. Housing material is fibreglass reinforced polybutylene terephthalate, providing strength and resistance.
IP67 rating ensures protection against dust and water ingress. Operating temperature range is from -40°C to 125°C for versatile use. Mount type is clip for reliable installation. AMPSEAL 16 series provides compatibility with related connectors.
Color coding and physical keying prevent mismating. Wire size range accepted is 1.30 to 2.54 mm diameter. Compliant with EU RoHS and EU ELV standards.
This Automotive Connector is ideal for use in automotive electrical systems, manufacturing automation, heavy machinery, and industrial equipment where reliable and sealed electrical connections are essential.
Explore a wide range of automotive electrical connectors and related components in the EnvMart catalog for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector provides a current rating of 13A, making it suitable for various automotive and industrial applications.
It has an IP67 rating, ensuring high resistance to dust and water ingress, which enhances its durability in harsh environments.
The operating temperature range for this connector is from -40°C to 125°C, allowing it to function effectively in extreme conditions.
This automotive connector supports 8 contacts, configured in 2 rows for optimized space utilization.
The housing is made of fibreglass reinforced polybutylene terephthalate, which provides strength and resistance to environmental factors.
It features a crimp termination type, ensuring secure wire connections for reliable electrical contact.
The dimensions are as follows: height is 26.65mm, width is 28.6mm, and depth is 47.55mm.
This model utilizes a clip mount type, providing reliable installation in various applications.
It complies with EU RoHS and EU ELV standards, reflecting a commitment to safety and environmental sustainability.
This connector accepts wire sizes ranging from 1.30 to 2.54 mm in diameter, accommodating diverse wiring harness requirements.
This connector belongs to the AMPSEAL 16 series, which provides compatibility with matching parts in the system.
This connector features a male gender, suitable for various automotive electrical systems and applications.
