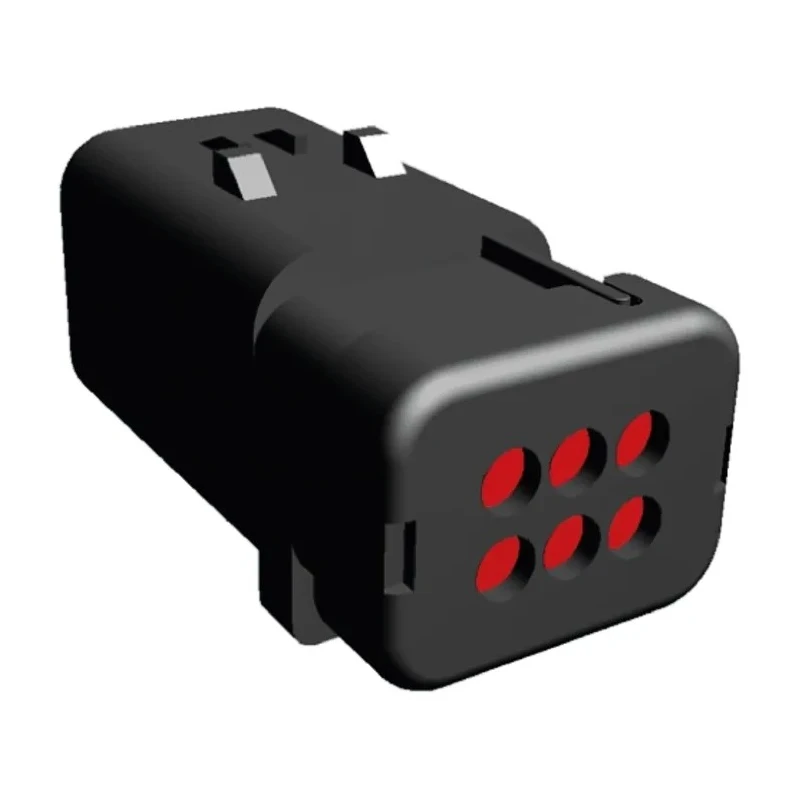

TE Connectivity AMPSEAL 16 Automotive Connector Male Red Clip 6 Way Crimp Termination 776537-1

TE Connectivity 776537-1 AMPSEAL 16 Automotive Connector Male Red Clip 6 Way Crimp Termination is a robust electrical connector housing designed for automotive use. It provides secure and reliable electrical connections in demanding environments with protection from dust and water ingress, achieving an IP67 rating.

The connector features a 6-contact configuration arranged in two rows, enabling compact wiring harness assemblies. Its housing is manufactured from fibreglass reinforced polybutylene terephthalate, offering excellent mechanical strength and thermal stability across an operating range of -40°C to 125°C.

The product uses a crimp termination type for reliable contact retention and electrical performance. The red coloured housing includes an integral primary latch reinforcement and clip mount style to ensure proper mating and mechanical stability, reducing risk of connector failure in automotive conditions.

This AMPSEAL 16 series connector supports a current rating up to 13A, designed to facilitate automotive electrical system integration. It complies with EU RoHS and ELV standards, confirming it meets environmental and hazardous substance regulations.

With dimensions of 24.6mm width, 47.55mm depth, and 26.65mm height, it fits into typical automotive harness assemblies where space savings and robustness are critical. Suitable for industrial, automotive manufacturing, vehicle maintenance, and repair applications.

Features 6 contacts arranged in 2 rows for compact and efficient wiring. Red coloured housing made from fibreglass reinforced polybutylene terephthalate for durability. Rated for 13A current with crimp termination ensuring strong contact retention.

IP67 rated for protection against dust and water ingress, suitable for harsh environments. Operating temperature range spans from -40°C to 125°C for versatile applications. Includes clip mount type and integral primary latch reinforcement to prevent mismating.

Complies with EU RoHS and EU ELV standards for environmental safety. Compact dimensions of 24.6mm width, 47.55mm depth, and 26.65mm height. Designed specifically for automotive electrical connector housing applications. Compatible with AMPSEAL 16 series connectors for system integration.
