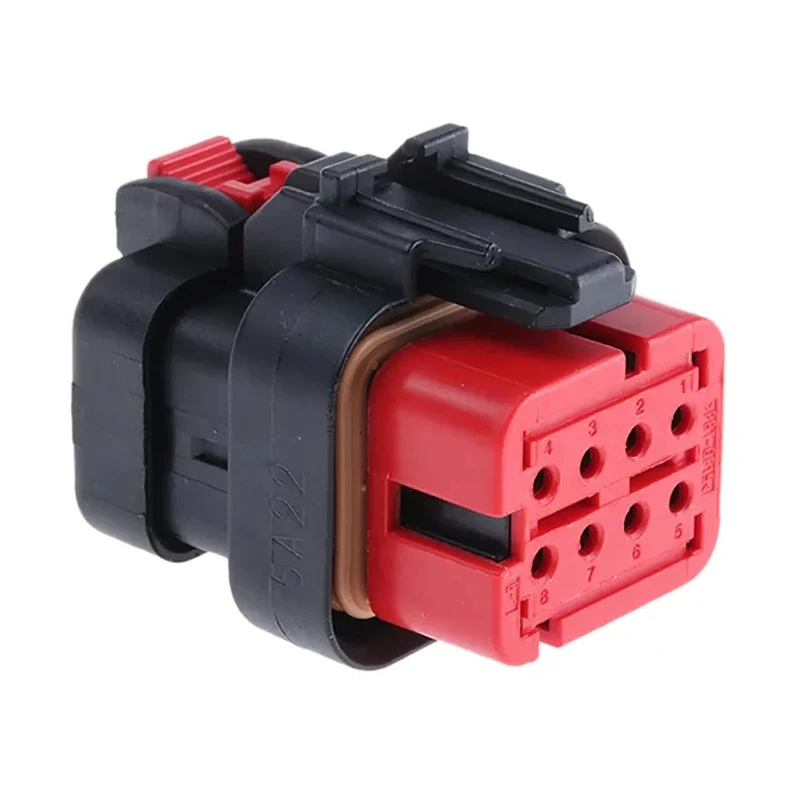

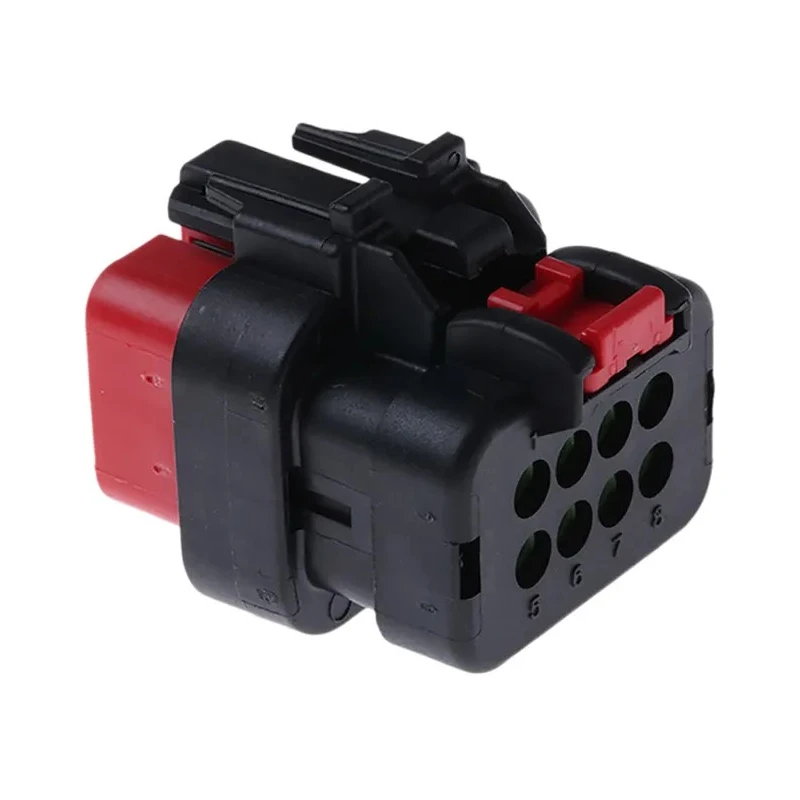

TE Connectivity AMPSEAL 16 Automotive Connector Female Red Cable 8 Way Crimp Termination 776494-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Current | 13A |
| Height | 31.5mm |
| Model | 776494-1 |
| Depth | 40.05mm |
| IP Rating | IP67 |
| Width | 20.33mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | AMPSEAL 16 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 726-6803Brand: TE ConnectivityManufacturers Part No.: 776494-1 |
| Number of Contacts | 8 |
Key Features
- The connector is female with 8 contacts arranged in 2 rows for versatile wiring.
- It features a robust red Fibreglass Reinforced Polybutylene Terephthalate housing for durability.
- Rated for up to 13 amps current, suitable for heavy-duty automotive use.
- Crimp termination ensures strong cable connections with a cable mount interface.
- Operating temperature range extends from -40°C up to 125°C for harsh environments.
- The connector has an IP67 rating, providing excellent environmental sealing and protection.
- Physical keying and color coding prevent mis-mating during installation.
- Complies with EU ELV and EU RoHS standards, supporting regulatory requirements.
Product Description
TE Connectivity AMPSEAL 16 Automotive Connector model 776494-1 is a female cable connector designed for 8 way crimp termination. This connector is engineered for demanding automotive and heavy industrial applications requiring secure and environmentally sealed electrical interfaces.
Constructed from Fibreglass Reinforced Polybutylene Terephthalate, the red housing provides superior strength and heat resistance. The connector features a dual-row contact array with 8 contacts supporting up to 13 amps current, ensuring reliable power transmission within automotive wiring systems.
Designed with integrated latch mechanisms, this connector provides secure mating along with CPA (Connector Position Assurance) for reliable locking. Its cable mount style and crimp termination method provide a high quality, durable connection. Physical keying and color coding enhance safety by preventing mismatches during installation.
This AMPSEAL 16 series connector operates across a wide temperature range from -40°C to 125°C and offers IP67 environmental protection rating, making it suitable for outdoor and harsh conditions. It meets compliance standards including EU ELV and RoHS, ensuring environmental and material safety.
Applications include off-road vehicles, industrial machinery, agricultural equipment, and recreational vehicles where durable, high-performance wiring connections are critical. The connector has 8 contacts arranged in 2 rows.
It supports cable mount installation with crimp termination. Rated for 13 amps current handling capability. Operates from -40°C to 125°C temperature range. Meets IP67 environmental sealing standards. Housing material is Fibreglass Reinforced Polybutylene Terephthalate.
Includes physical keying and color coding to prevent mis-mating. Complies with EU ELV and RoHS standards. Compatible with standard diameter wire seal from 2.18 mm to 3.67 mm wire size. Explore TE Connectivity AMPSEAL 16 Automotive Connectors for reliable industrial and automotive electrical solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for up to 13 amps current, making it suitable for heavy-duty automotive applications.
It operates within a temperature range of -40°C to 125°C, allowing it to function in harsh environments.
The connector has an IP67 rating, providing excellent environmental sealing and protection against dust and water.
This connector features 8 contacts arranged in 2 rows, designed for versatile wiring configurations.
The housing is constructed from Fibreglass Reinforced Polybutylene Terephthalate, which offers strength and heat resistance.
It employs crimp termination, ensuring strong and reliable cable connections.
The dimensions are as follows: height 31.5 mm, width 20.33 mm, and depth 40.05 mm.
Yes, it complies with EU ELV and EU RoHS standards, ensuring environmental and material safety.
This model supports cable mount installation, making it suitable for various applications.
Physical keying and color coding are designed to prevent mis-mating during installation, enhancing safety.
It is suitable for applications in off-road vehicles, industrial machinery, agricultural equipment, and recreational vehicles.
The model number for this connector is 776494-1, part of the AMPSEAL 16 series.
