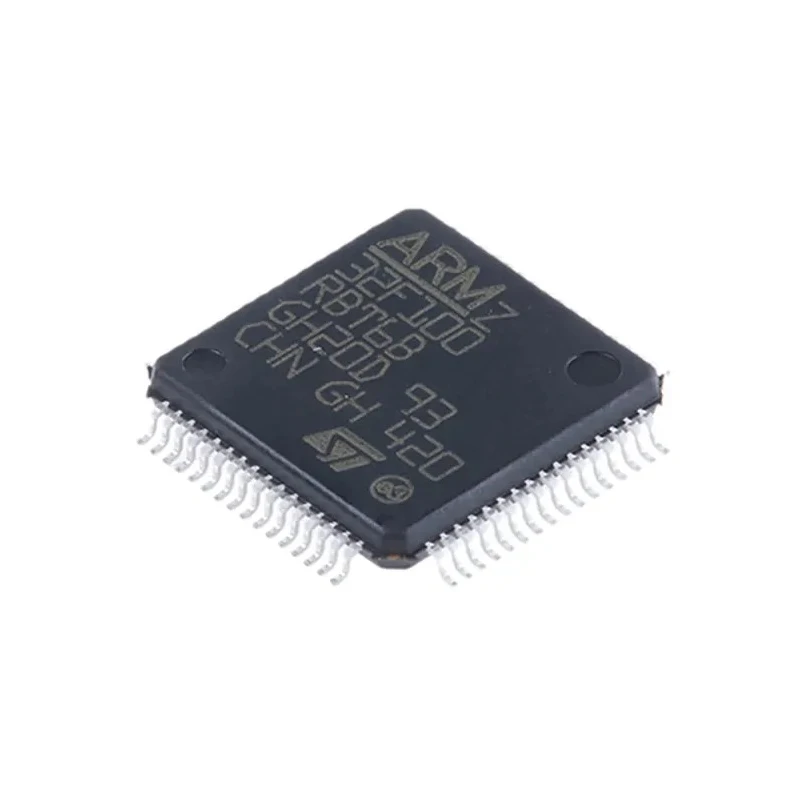

STMicroelectronics 32 bit ARM Cortex M3 Microcontroller STM32F100RBT6B, 24 MHz, 128kB FLASH, 64-Pin LQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.4mm |
| Length | 10mm |
| Model | STM32F100RBT6B |
| Width | 10mm |
| Mount Type | Surface |
| Series | STM32F1 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Standards/Approvals | FBI |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 723-8895Brand: STMicroelectronicsManufacturers Part No.: STM32F100RBT6B |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 444mW |
| Minimum Supply Voltage | 2V |
| Device Core | ARM Cortex M3 |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 24MHz |
| Number of Timers | 11 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
| Low voltage | 2 V to 3.6 V |
Key Features
- Operates on a maximum supply voltage of 3.6V with a minimum of 2V.
- Equipped with 8kB RAM and 16 x 12 bit ADCs for precise data acquisition.
- Features 2 x 12 Bit DACs and 11 timers for flexible control applications.
- Supports RISC instruction set architecture ensuring efficient processing.
- Designed for operating temperatures ranging from -40°C to 85°C for industrial use.
- Compact size with dimensions 10mm length, 10mm width, and 1.4mm height.
- Surface mount type with LQFP package for robust PCB integration.
- Ideal for embedded applications requiring low power consumption and real-time capabilities.
Product Description
STMicroelectronics STM32F100RBT6B is a 32 bit ARM Cortex M3 Microcontroller designed to offer a balance of performance and integration for embedded applications. Operating at a maximum clock frequency of 24 MHz, it includes 128kB of program flash memory and 8kB of RAM, packaged in a compact 64-pin LQFP form factor suitable for surface mount assembly.
Featuring an ARM Cortex M3 core with a 32-bit data bus width, this microcontroller supports the RISC instruction set architecture ensuring efficient computation and fast interrupt response. It operates within a supply voltage range of 2V to 3.6V, making it suitable for low voltage environments.
The device is equipped with 16 channels of 12-bit Analog-to-Digital Converters (ADCs), 2 channels of 12-bit Digital-to-Analog Converters (DACs), and 11 timers, providing extensive capabilities for precision control and signal processing in applications such as motor control, medical equipment, handheld devices, and industrial control systems.
With its wide operating temperature range from -40°C to 85°C and power dissipation up to 444mW, the STM32F100RBT6B suits both commercial and industrial environments. Its compact package size (10mm x 10mm x 1.4mm) ensures ease of integration into space-constrained designs.
The STM32F100 Value Line series microcontrollers are designed for real-time tasks with superior power efficiency and are pin and software compatible across the STM32 family, enabling scalable and cost-effective product development.
Maximum supply voltage: 3.6V. RAM size: 8kB. Analog converters: 16 x 12 bit ADCs and 2 x 12 bit DACs. Instruction set: RISC architecture. Operating temperature: -40°C to 85°C. Packaging: 64-pin LQFP, surface mount. Maximum clock frequency: 24 MHz.
Program memory type: FLASH with 128kB size. Number of timers: 11.
This STMicroelectronics microcontroller series is widely used in embedded control, user interface, medical devices, gaming peripherals, GPS platforms, and various industrial applications requiring reliable and efficient processing.
Explore the extensive range of Microcontrollers at EnvMart for your next project requiring advanced embedded solutions with superior power efficiency and real-time capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 24 MHz.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
This microcontroller features 128kB of FLASH program memory.
It is equipped with 16 channels of 12-bit Analog-to-Digital Converters (ADCs).
This model has a RAM size of 8kB.
The STM32F100RBT6B is packaged in a 64-pin LQFP (Low-Profile Quad Flat Package) format.
It operates with a minimum supply voltage of 2V and a maximum of 3.6V.
This microcontroller includes 11 timers for various control applications.
It features 2 channels of 12-bit Digital-to-Analog Converters (DACs).
This microcontroller supports the RISC instruction set architecture, ensuring efficient processing.
The maximum power dissipation for the STM32F100RBT6B is 444mW.
The dimensions of this microcontroller are 10mm in length, 10mm in width, and 1.4mm in height.
