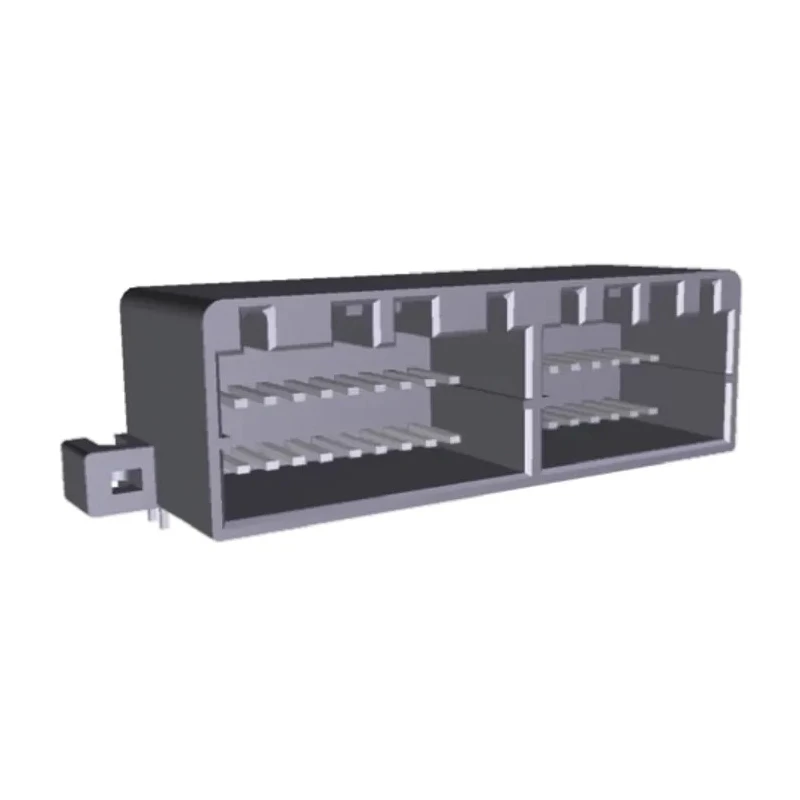

TE Connectivity MULTILOCK 040 II Series Right Angle Through Hole 36-Contact 2 Row 2.5 mm Pitch PCB Socket 179059-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 12V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Model | 179059-6 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | MULTILOCK 040 II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-0957PBrand: TE ConnectivityManufacturers Part No.: 179059-6 |
| Contact Plating | Tin |
| Number of Contacts | 36 |
| Contact Gender | Female |
| Connector System | Wire-to-Board |
| Row Pitch | 5.2mm |
Key Features
- Compact design ensures easy handling and high durability.
- Features a locking mechanism to secure contact retention reliably.
- Contacts are protected against rocking action during mating and un-mating.
- Thermoplastic housing material suitable for automotive applications.
- Supports 12V operating voltage with brass contacts plated in tin.
- Right angle through-hole mount for robust PCB integration.
- Designed for automotive and general purpose powertrain, safety, and convenience systems.
- Operates reliably between -30°C to 105°C temperature range.
Product Description
TE Connectivity 179059-6 MULTILOCK 040 II Series Right Angle Through Hole PCB Socket is a high density 36-contact, 2-row connector with 2.5 mm pitch designed for wire-to-board connectivity. It features a compact and durable thermoplastic housing with a locking mechanism that prevents contact loss, suitable for demanding automotive environments.
The socket supports an operating voltage of 12V and operates effectively between -30°C to 105°C. Contacts are made of brass with tin plating for reliable conduction and corrosion resistance. Its right angle orientation and through-hole mounting ensure robust PCB attachment.
This product is ideal for automotive applications including powertrain systems, safety and security devices, convenience systems like air conditioning and heated seats, driver information systems, as well as body and chassis electronics. It is highly suited for industrial and manufacturing environments requiring reliable signal and power transmission.
The MULTILOCK 040 series features snap-in crimp contacts for cable receptacles and offers both wire-to-wire and wire-to-board I/O configurations. Its integral double locking system and contact protection against rocking action enhance long-term operational reliability.
Compact design for space-efficient PCB layouts. Durable thermoplastic housing with high mechanical strength. Locking mechanism to ensure stable contact retention. 36 female brass contacts with tin plating for corrosion resistance.
Through-hole mount with right angle orientation for secure installation. Operating temperature range of -30°C to 105°C suitable for automotive conditions. High-density 2.5 mm pitch supports dense connector applications. 12V rated for diverse automotive power applications.
Designed for powertrain, safety, convenience, and body electronics systems.
The set includes the PCB socket with 36 contacts arranged over two rows, designed to interface wire-to-board connections with reliable performance. This product enables efficient assembly in industrial, automotive, and electronic manufacturing sectors.
Explore TE Connectivity products and similar PCB Sockets in EnvMart's Electronics Components category for robust, certified connectivity solutions tailored to professional industrial usage.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
This unit supports an operating voltage of 12V.
It features a total of 36 contacts arranged in two rows.
It utilizes a through-hole mounting type for secure installation.
The contacts are made of brass and are plated with tin for corrosion resistance.
The pitch size of the contacts is 2.5 mm.
This socket has a right angle orientation.
It is suitable for automotive applications including powertrain systems, safety devices, and convenience systems.
The minimum operating temperature for this model is -30°C.
The housing is made from thermoplastic material, suitable for automotive applications.
It uses a solder termination type for connections.
The contacts in this model are female.
