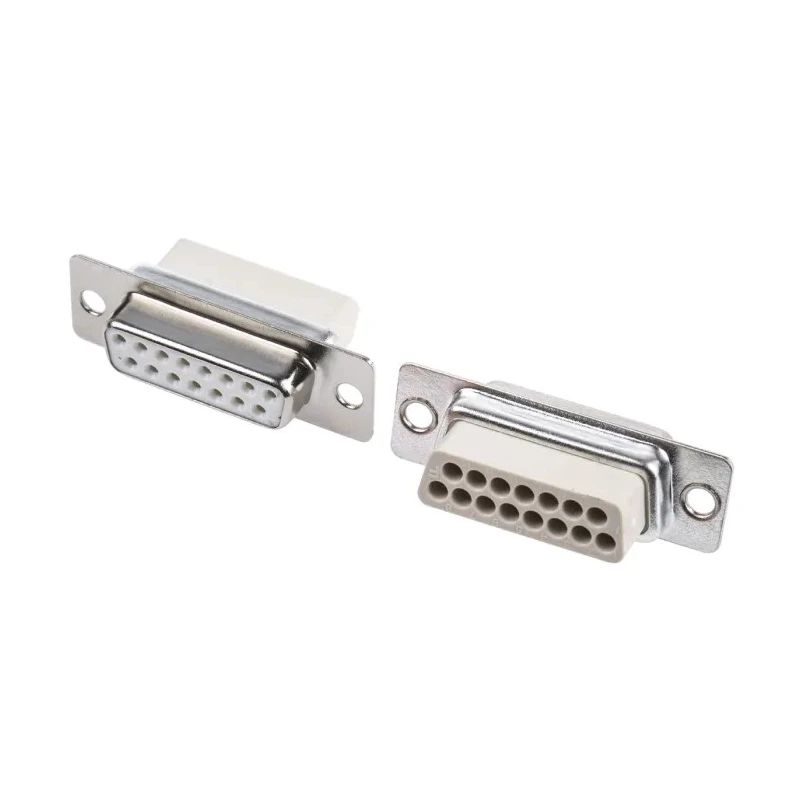

MH Connectors MHD 15 Way Straight 2.77 mm Pitch Cable D-Sub Connector DBC15SS-NW
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | MH Connectors |
| Orientation | Straight |
| Current | 5A |
| Model | DBC15SS-NW |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | MHD |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-5786Brand: MH ConnectorsManufacturers Part No.: DBC15SS-NW |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 15 |
| Contact Gender | Female |
Key Features
- Features a 15-contact female configuration for versatile connectivity.
- Operates at 250 volts with a current rating of 5 amperes.
- Cable mount type with a straight orientation for easy installation.
- Constructed with a durable steel housing for mechanical strength.
- Termination type is crimp, ensuring secure cable connections.
- Contact material is copper alloy with gold plating over nickel for superior conductivity and corrosion resistance.
- Pitch between contacts is 2.77 mm, supporting precise mating and signal integrity.
- Suitable for operating temperatures ranging from -55°C to 105°C.
Product Description
MH Connectors DBC15SS-NW is a 15 Way Straight 2.77 mm Pitch Cable D-Sub Connector designed for use in electronic, communication, and industrial equipment where reliable cable connections are essential. Featuring a robust steel housing and high-quality copper alloy contacts with gold over nickel plating, it ensures electrical performance and mechanical durability under a wide temperature range from -55°C to 105°C.
This connector supports a current rating of 5 amperes and voltage rating of 250 volts, making it suitable for various mid-power signal and data applications. The straight cable mount style facilitates easy assembly into wiring harnesses and electronic assemblies, supporting crimp termination for secure and reliable contact installation.
The 2.77 mm pitch between contacts ensures stable signal connections and compatibility with standard D-Sub connector accessories. The DBC15SS-NW series connectors are part of the MHD series, known for high-quality crimp and solder termination options. The steel housing design also incorporates features for grounding continuity with tinned/dimpled shells.
This product is ideal for use in industrial automation, instrumentation, communication systems, laboratory equipment, and aerospace applications where robust and dependable connectors are required.
Features a 15-contact female configuration for versatile connectivity. Operates at 250 volts with a current rating of 5 amperes. Cable mount type with a straight orientation for easy installation. Constructed with a durable steel housing for mechanical strength.
Termination type is crimp, ensuring secure cable connections. Contact material is copper alloy with gold plating over nickel for superior conductivity and corrosion resistance. Pitch between contacts is 2.77 mm, supporting precise mating and signal integrity.
Suitable for operating temperatures ranging from -55°C to 105°C. Product designed and manufactured in Taiwan, Province Of China, meeting demanding quality standards. Part of the MHD series connectors, suitable for assembly and re-assembly with solder or crimp contacts.
Explore more connectors and D-Sub compatible accessories on EnvMart for your electronic and industrial component needs.
Explore more products in our D-Sub Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage of 250 volts and has a current rating of 5 amperes.
The pitch between the contacts is 2.77 mm, which supports precise mating and signal integrity.
This connector uses crimp termination, ensuring secure cable connections.
It features a steel housing for mechanical strength and contacts made of copper alloy with gold plating over nickel for superior conductivity.
It is suitable for operating temperatures ranging from -55°C to 105°C.
This model has 15 contacts in a female configuration.
It has a straight orientation, facilitating easy installation.
It is designed and manufactured in Taiwan, Province Of China.
This connector is part of the MHD series, which is known for high-quality crimp and solder termination options.
It is suitable for use in industrial automation, instrumentation, communication systems, laboratory equipment, and aerospace applications.
The mounting type is cable, which allows for easy assembly into wiring harnesses and electronic assemblies.
The contact plating consists of gold over nickel, which provides superior conductivity and corrosion resistance.
