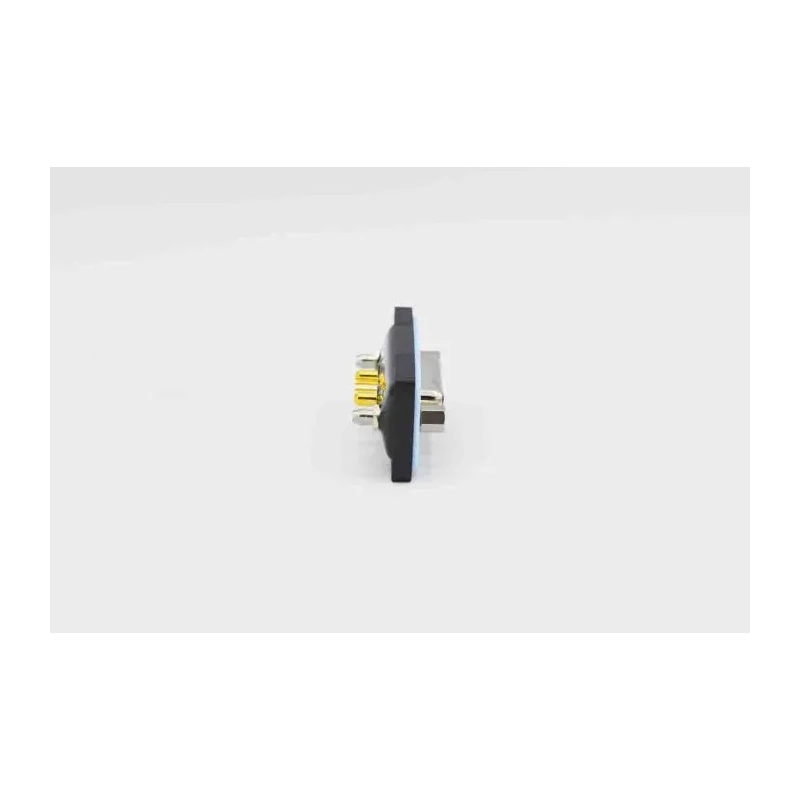

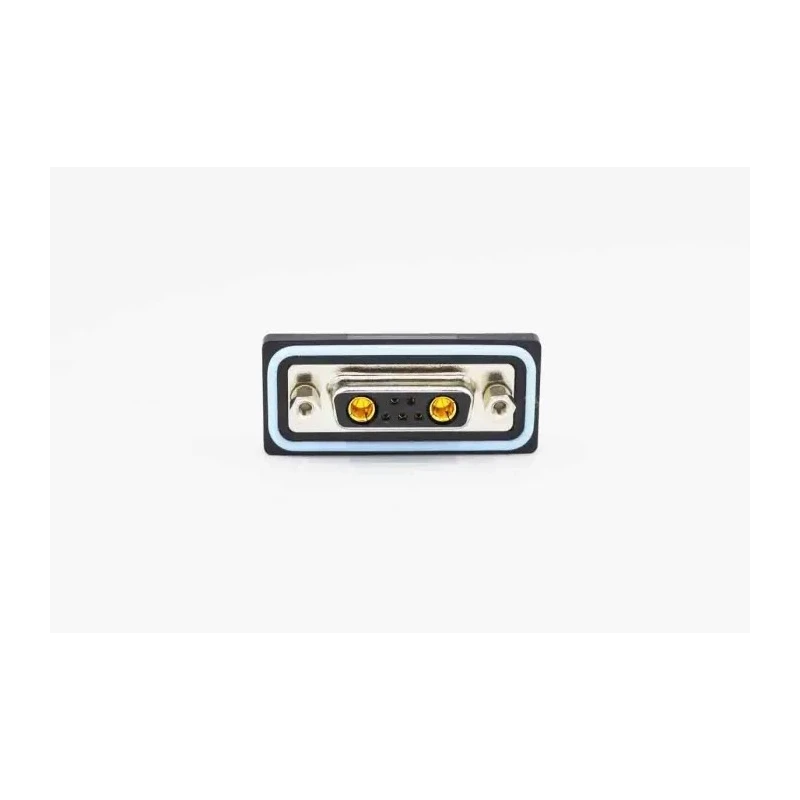

Norcomp D-Sub PCB Connector 7 Way Vertical 2.77 mm Pitch Surface Mount Female with 4-40 Screw CDFV7W2213L211

Free Delivery in India | Lowest Global Shipping Charges

Norcomp D-Sub PCB Connector 7 Way Vertical 2.77 mm Pitch Surface Mount Female with 4-40 Screw CDFV7W2213L211

Name: Norcomp D-Sub PCB Connector 7 Way Vertical 2.77 mm Pitch Surface Mount Female with 4-40 Screw CDFV7W2213L211
Brand: NorComp
SKU: 305949
Price: 20.22 USD
Availability: InStock



Category D-Sub Connectors Brand NorComp Condition New

Specifications

Country of Origin	India
Voltage	1000V
Brand	Norcomp
Orientation	Vertical
Operating Temperature	-25°C to +85°C
Current	5A
Model	CDFV7W2213L211
Mount Type	Surface
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	CDFV
Mounting Hardware	4-40 Screw
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Pitch	2.77mm
Contact Plating	Gold
Number of Contacts	7
Contact Gender	Female
Connector Gender	Female
Connector Type D	Standard

Key Features

The connector features 7 female contacts arranged vertically with a 2.77 mm pitch for precise PCB connection.
It supports a current rating of 5A and voltage of 1000V for stable operation.
Mounting is surface type with 4-40 screw hardware ensuring secure fixation.
Constructed from polybutylene terephthalate housing providing durability and high insulation resistance.
Operating temperature range is -25°C to 85°C suitable for various industrial environments.
The contact material is brass with gold plating to ensure low contact resistance and corrosion resistance.
No specific certifications are marked for this series but it meets standard D-sub connector requirements.

Product Description

Norcomp CDFV7W2213L211 is a high-quality 7 Way Vertical D-Sub PCB Connector designed for surface mounting applications. The connector’s housing is made of polybutylene terephthalate, providing robust mechanical strength and excellent electrical insulation. Featuring 7 female contacts, each with a 2.77 mm pitch, this connector ensures reliable mating with corresponding male connectors on printed circuit boards.

It supports electrical currents up to 5A and can operate safely at voltages up to 1000V, making it suited for power and signal applications. The nickel-plated steel shell enhances shielding and mechanical protection while gold-plated brass contacts reduce signal loss and resist corrosion over time. The connector comes with 4-40 screw threaded inserts as mounting hardware to guarantee a firm and stable connection on the PCB.

Its operating temperature range from -25°C to +85°C enables use in various industrial, electronic manufacturing, and control equipment environments. The IP67 rating (as specified in the product details) offers protection against dust and water ingress, further expanding its application scope.

Typical use cases include industrial automation systems, electronic instrumentation, power supplies, and computing devices needing secure and durable D-sub connections. Though standards/approvals are not explicitly indicated, the connector follows the standard D-sub form factor and mounting conventions.

The connector has 7 female contacts arranged vertically with 2.77 mm pin pitch. It is surface mount type with 4-40 screw fixtures for secure attachment. Current rating of 5A and voltage rating of 1000V make it suitable for moderate power applications.

Housing constructed from polybutylene terephthalate ensures durability and electrical insulation. Gold-plated brass contacts provide corrosion resistance and stable electrical performance. Nickel-plated steel shell offers mechanical protection and EMI shielding.

Operating temperature range from -25°C to +85°C allows reliable function in harsh environments. Explore more D-Sub Connectors and related electronic components on EnvMart for your industrial, laboratory, and manufacturing needs.
